A-DIO-TOP/08

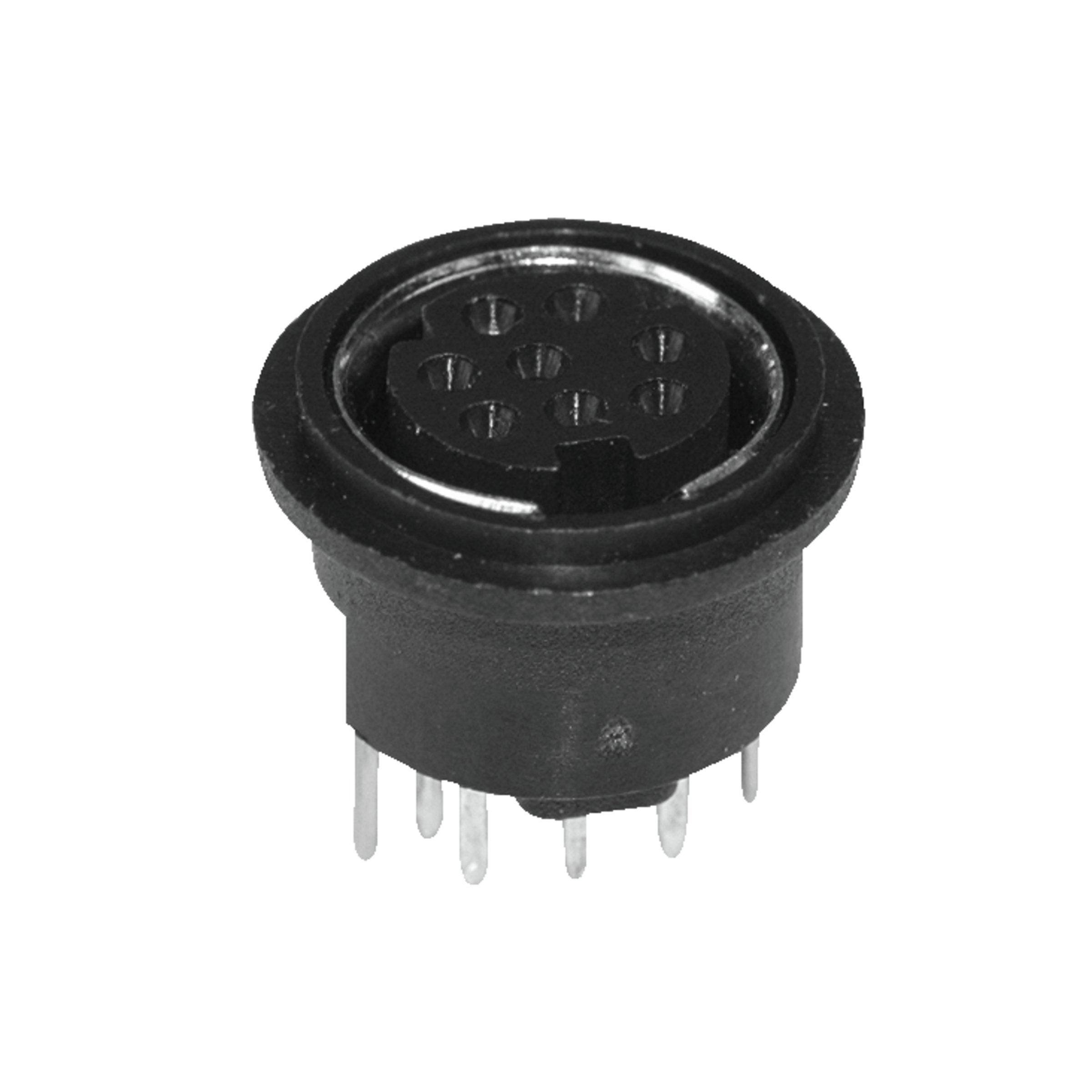

Assmann WSW Mini-DIN socket A-DIO-TOP PCB Mini DIN round straight 8 Pole Solder unshielded
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
300 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Mini-DIN socket
- Connector Contact
- Solder
- Series
- A-DIO-TOP
- Colour
- black
- Housing
- round
- Design
- PCB
- Insulating body
- Polybutylenterephthalat (PBT) 30% GF
- Number of poles
- 8
- Contact Type
- Mini DIN
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 85 °C
- Rated voltage AC
- 750 V AC
- Rated current
- 1 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

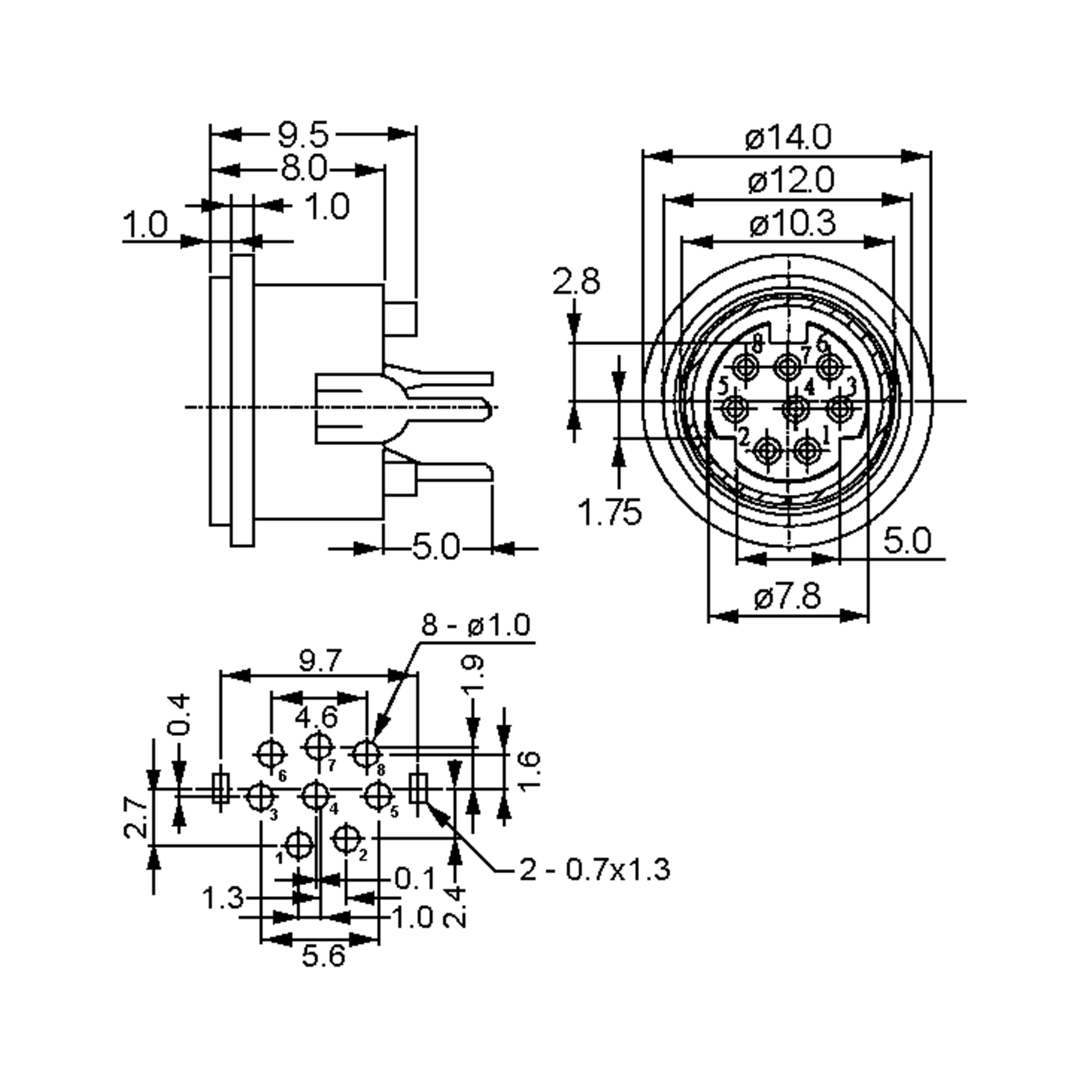

Dimensions and Weights
- Dimension: Length
- 12.5 mm
- Diameter
- 14 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1 A
- Rated voltage AC
- 750 V AC
- Breakdown voltage
- 750 V RMS / min.
- Insulation resistance
- 1000 mOhm
- Contact resistance
- 30 mOhm
Mechanical Features
- Durability
- 500
- Insulating body
- Polybutylenterephthalat (PBT) 30% GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
