A-CF96ABCT

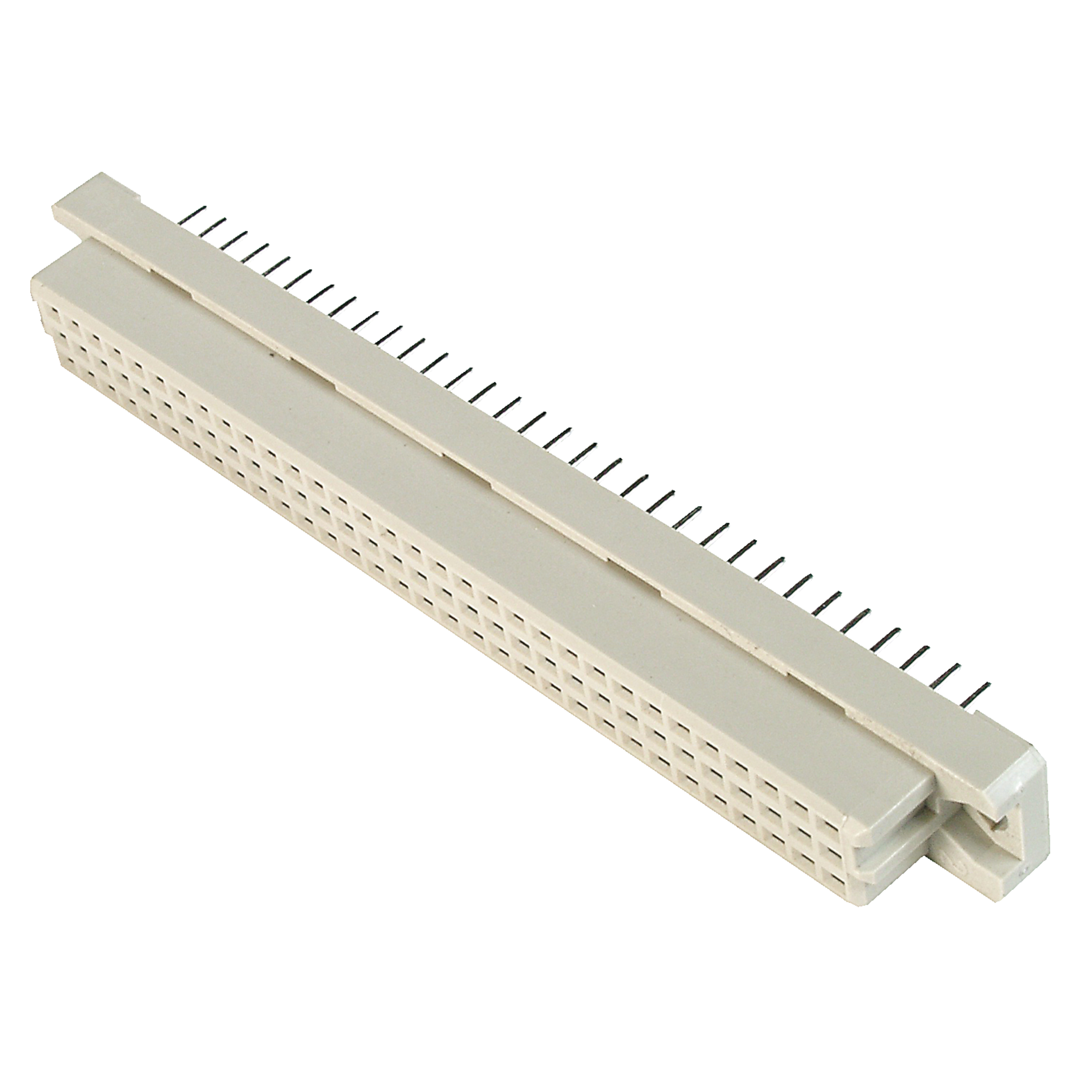

Assmann WSW Female connector A-CF_ACT Box Header 3-row straight 96 Pole Pitch2,54mm Solder
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.420 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 150 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Female connector
- Connector Contact
- Solder
- Series
- A-CF_ACT
- Colour
- gray
- Housing
- 3-row
- Design
- Box Header
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 96
- Standards
- DIN 41612
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Alignment
- straight
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 125 V AC
- Rated current
- 2 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

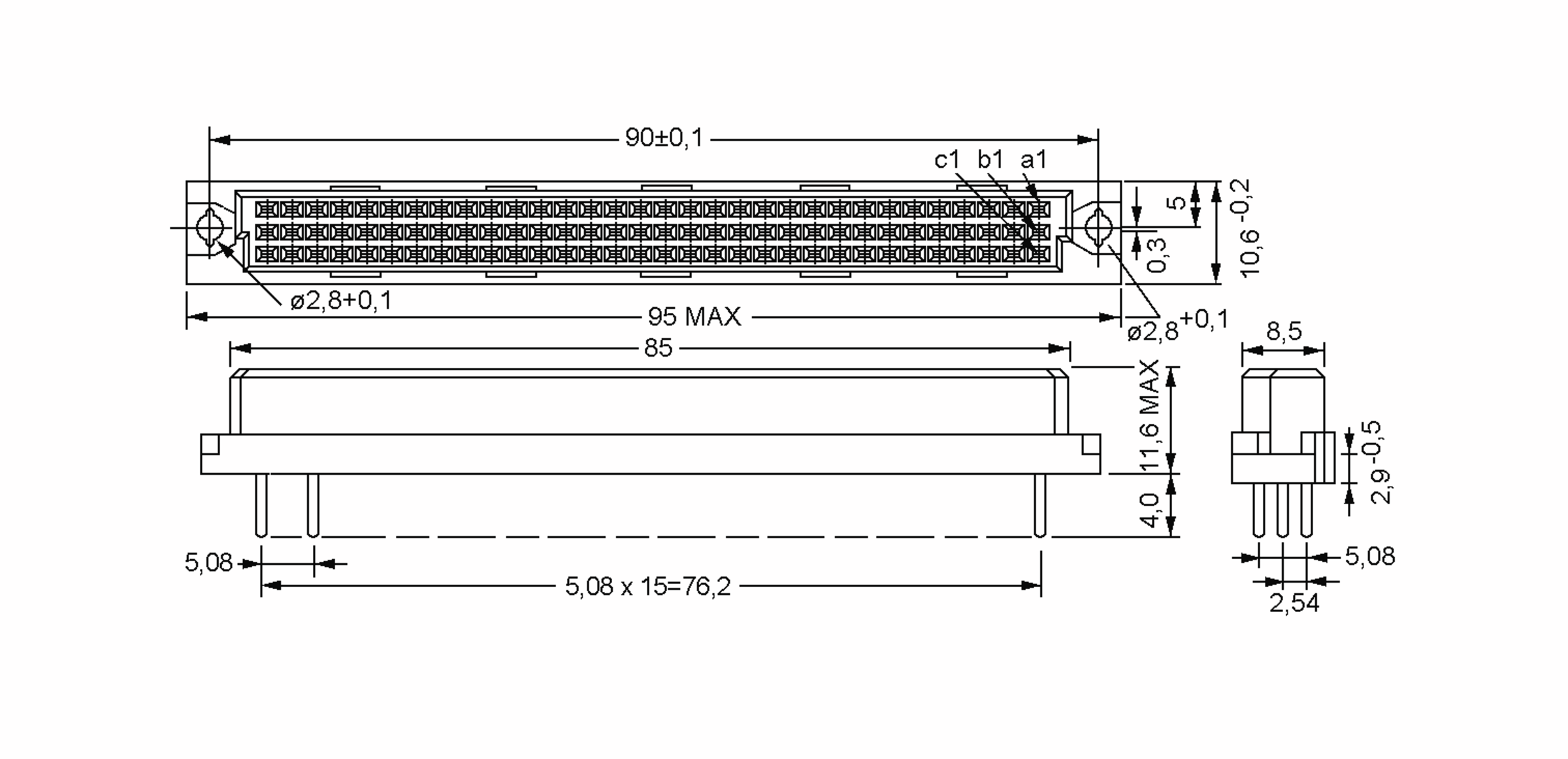

Dimensions and Weights
- Dimension: Width
- 95 mm
- Dimension: Height
- 15.6 mm
- Dimension: Depth
- 10.6 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 2 A
- Rated voltage AC
- 125 V AC
- Insulation resistance
- 10^12 MOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Durability
- 50
- Drilling Dimensions
- 2.8 mm
- Insertion force per contact, max.
- 90 N
- Insertion force per contact, min.
- 125 N
- Clearance and creepage distances (contact/ground), max.
- 1.2 mm
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- Nickel, vergoldet
Safety/Certifications
- Approvals
- cURus
- Standards
- DIN 41612
- Class of Inflammability
- UL 94 V-0
