A-57/36 FR/KL

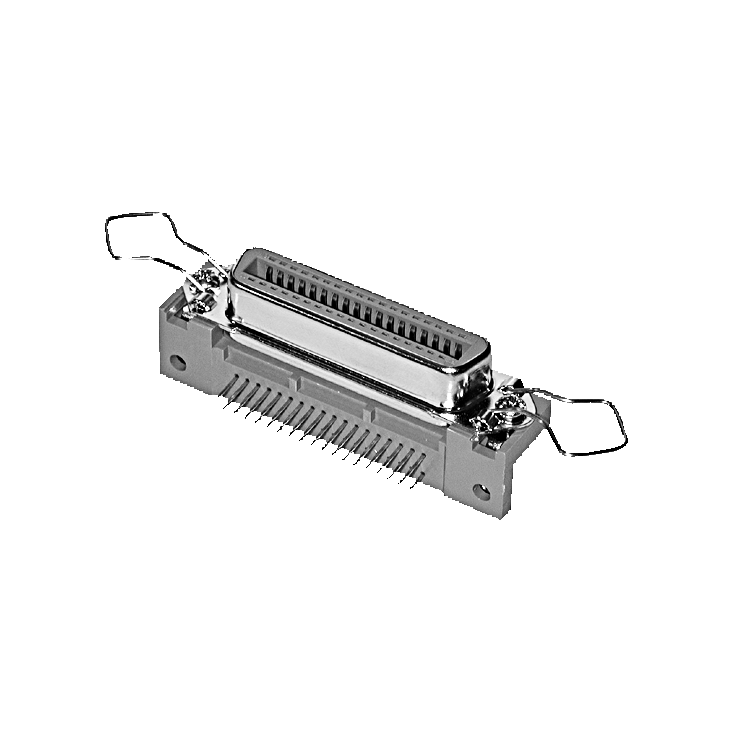

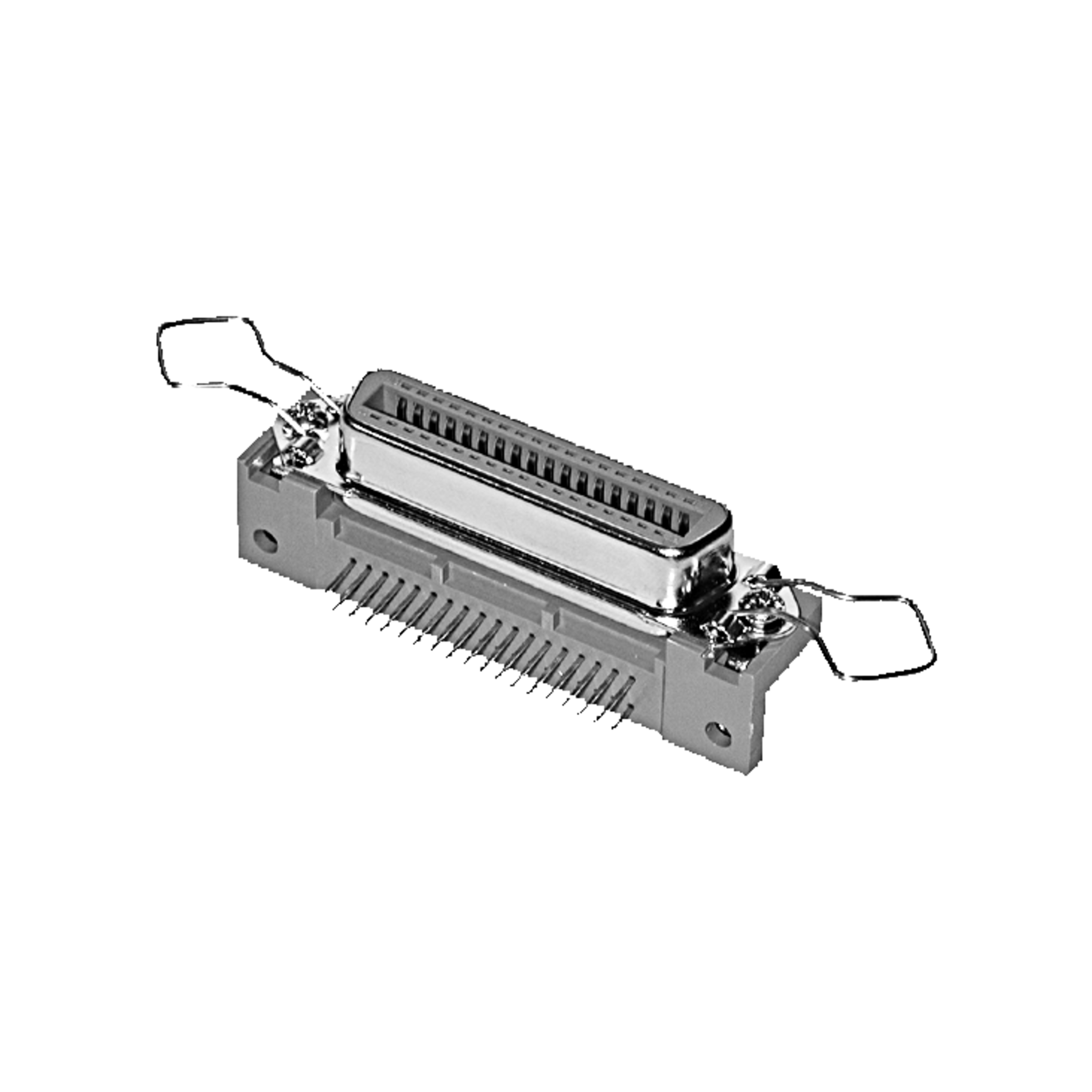

Assmann WSW Socket A-57_FR/KL PCB Socket rectangular 90° 36 Pole Steel Solder 67,82mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5000 or multiple of 5000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket
- Connector Contact
- Solder
- Series
- A-57_FR/KL
- Housing material
- Steel
- Housing
- rectangular
- Design
- PCB
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Number of poles
- 36
- Contact Type
- Centronic
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- 90°
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 5 A
- Operating Temperature Min.
- -55 °C
- RoHS-Conform
Specifications
Open all

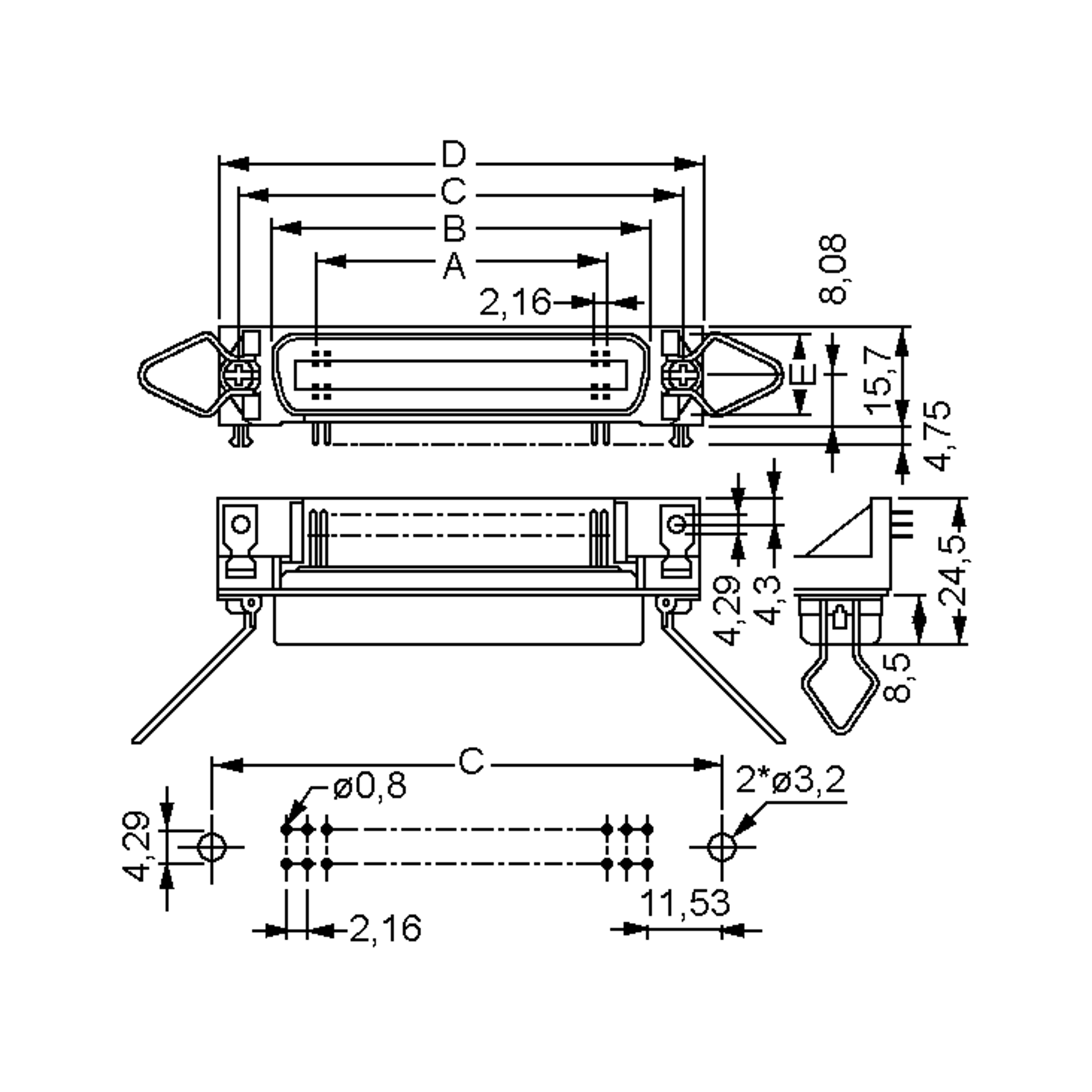

Dimensions and Weights
- Dimension: Length
- 67.82 mm
- Dimension: Width
- 15.7 mm
- Dimension: Height
- 24.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 5 A
- Rated voltage AC
- 250 V AC
- Dielectric strength
- 1,000 V / min.
- Insulation resistance
- 1 MOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Steel
- Insulating body
- Polybutylenterephthalat (PBT) GF
- Contact Surface Input
- vernickelt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
