TPX00242

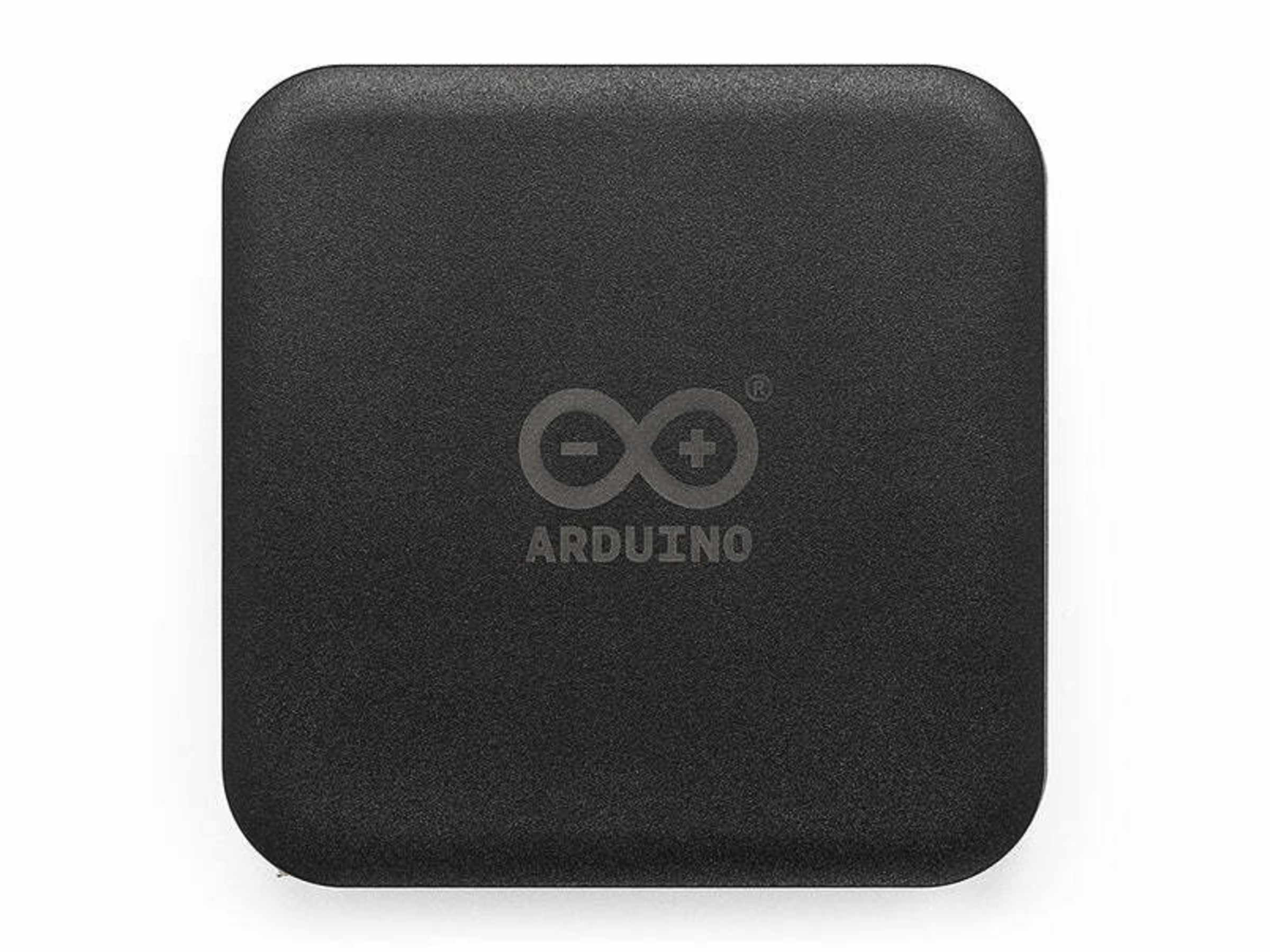

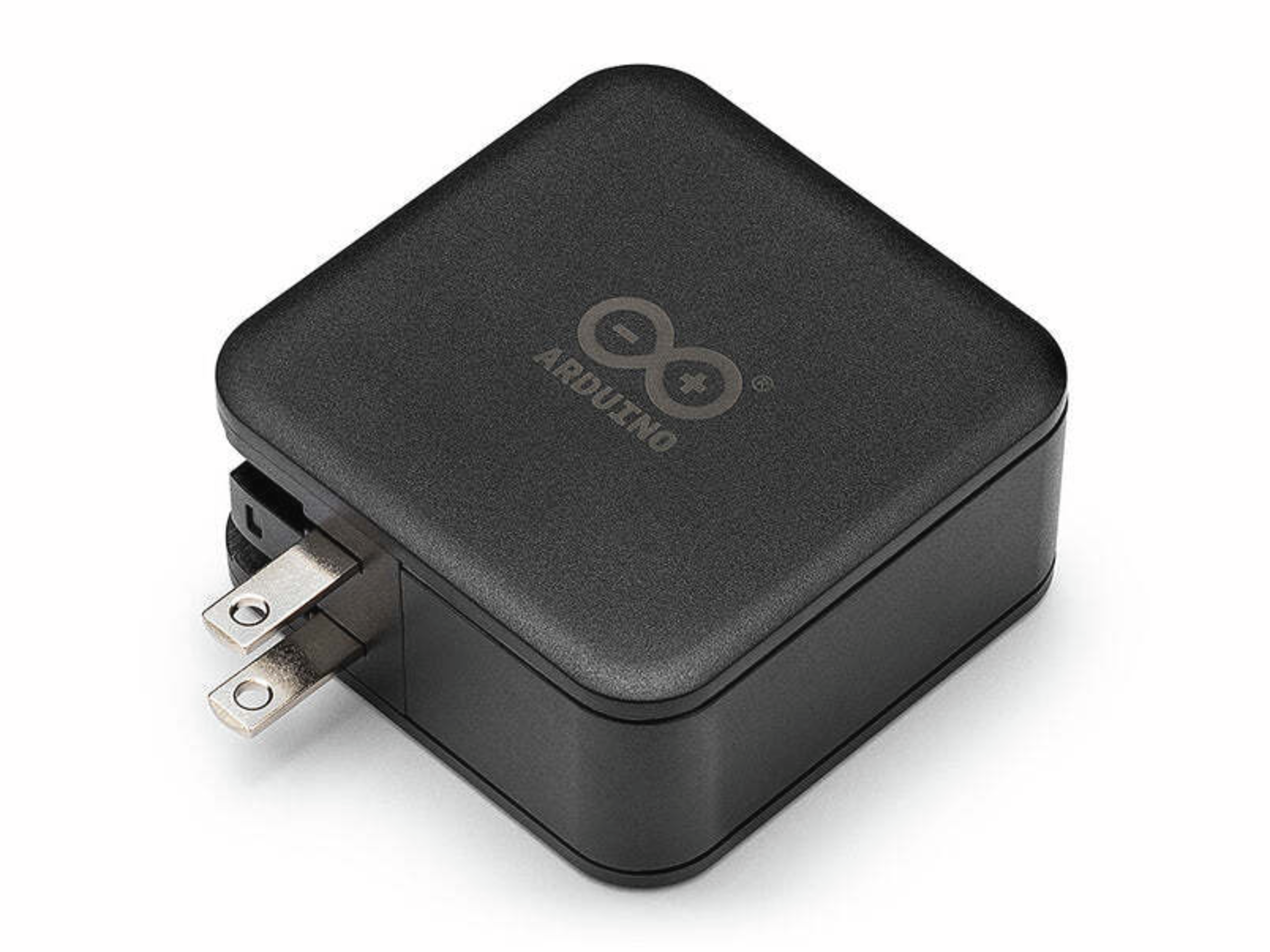

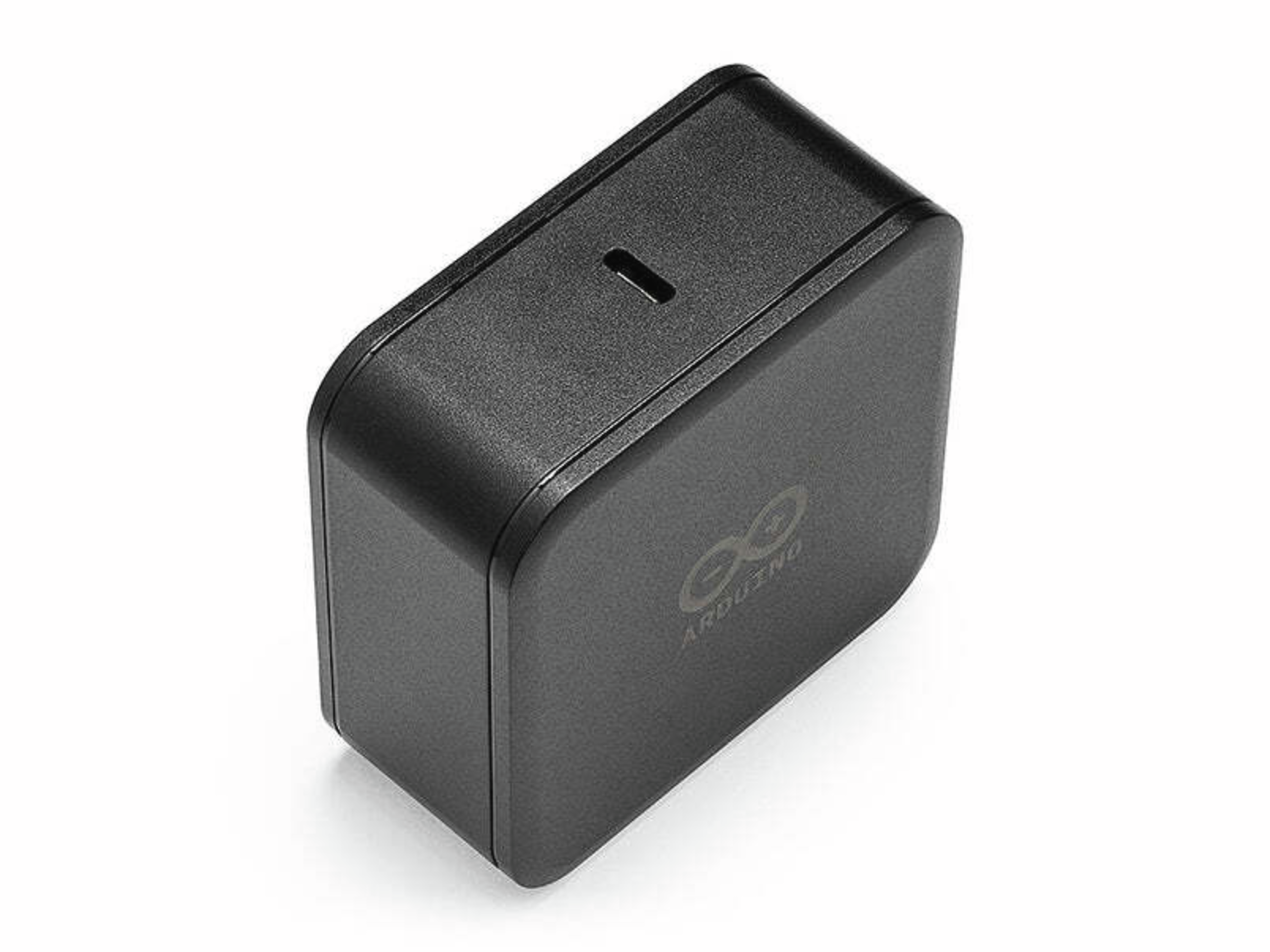

Arduino Srl Wall Mount Power Supply 45W 20V 2,5A USB-C

TPX00242TPX00242TPX00242TPX00242TPX00242
NEW
Manufacturer Part No.
TPX00242
Schukat Part No.
TPX00242
Manufacturer
Arduino Srl
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

50 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
General:

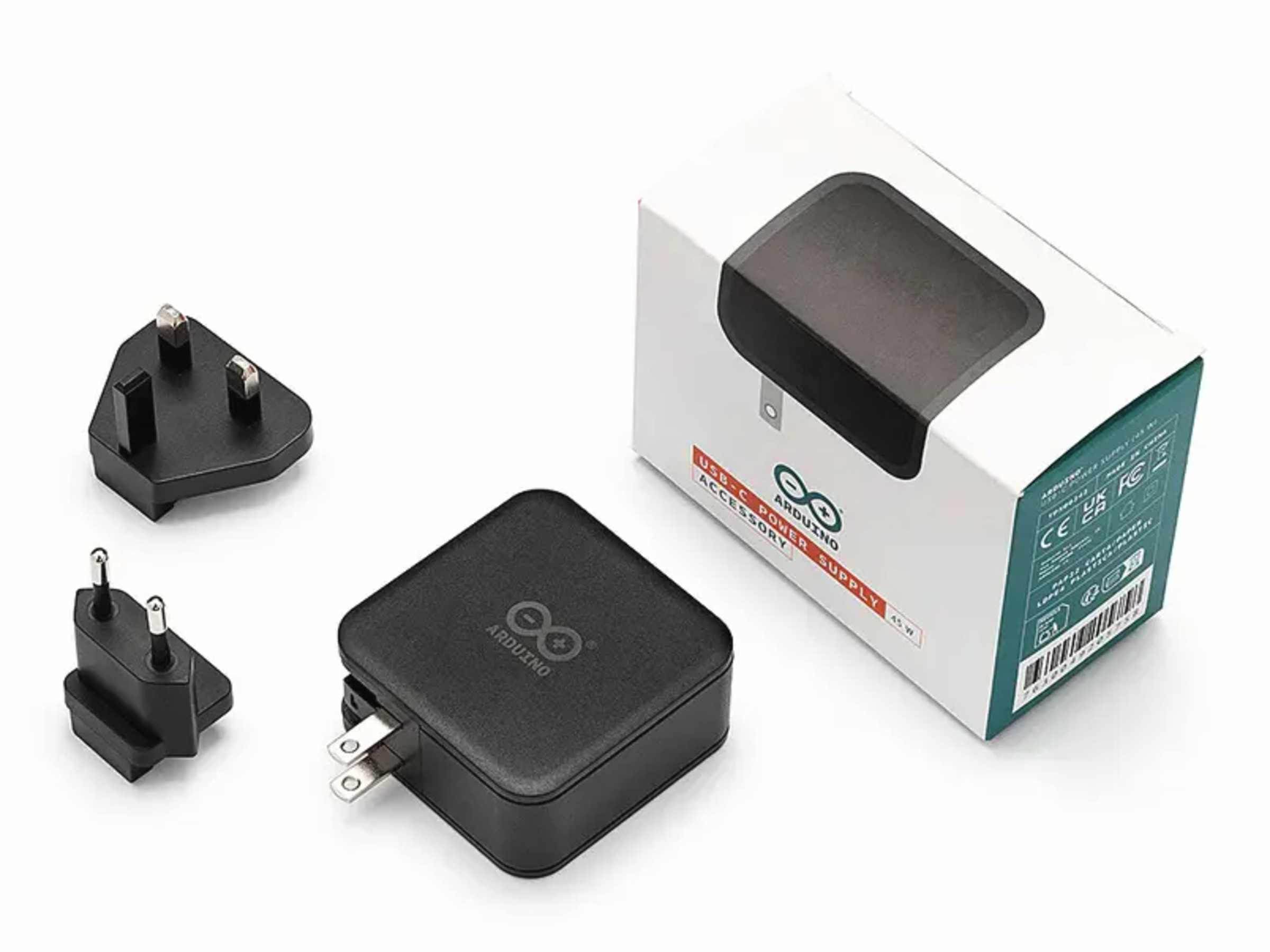

Scope of delivery: 1× Arduino USB-C power adapter (45 W) 1× plug adapter (region-specific: EU, UK, or US)
Package/Case
Wall Mount Power Supply
Output Power
45 W
Output voltage
20 V
Output current
2.500 A
Efficiency
87.73 %
Connection type, output
USB-C
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Arduino Srl
Product group
  • Y2119
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 64 mm
Dimension: Width
  • 64 mm
Dimension: Height
  • 30 mm
Weight
  • 15 g
Features
  • USB-C PD
Notice
  • General:
    Scope of delivery: 1× Arduino USB-C power adapter (45 W) 1× plug adapter (region-specific: EU, UK, or US)

Operating conditions

MTBF
  • 30,000 h
Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 35 °C
Storage Temperature Min.
  • -40 °C
Storage Temperature Max.
  • 70 °C

Input

Mains frequency min.
  • 47 Hz
Mains frequency max.
  • 63 Hz
Input voltage min. AC
  • 90 V
Input voltage max. AC
  • 264 V
Input current
  • 1.5 A
Efficiency
  • 87.73 %
Average efficiency
  • 87.73 %
No load power, less than
  • 0.1 W
Leakage current, max.
  • 0.25 mA
Power factor correction (PFC)
Connection type, input
  • Plug Adapter

Output

Number of outputs
  • 1
Output Power
  • 45 W
Output voltage
  • 20 V
Selectable output voltage
Output voltage tolerance
  • -5.5 %
Ripple & Noise
  • 150 mVp-p
Output current
  • 2.500 A
Overload protection
Type of overload protection
  • Hiccup
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • USB-C

Safety/Certifications

Protection class
  • II
Isolation voltage I/P-O/P
  • 3,000 V
Approvals
  • CE
  • FCC
  • TÜV
  • UKCA
  • UL
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 62368-1
  • UL 62368-1
