G7L-2A-X DC12

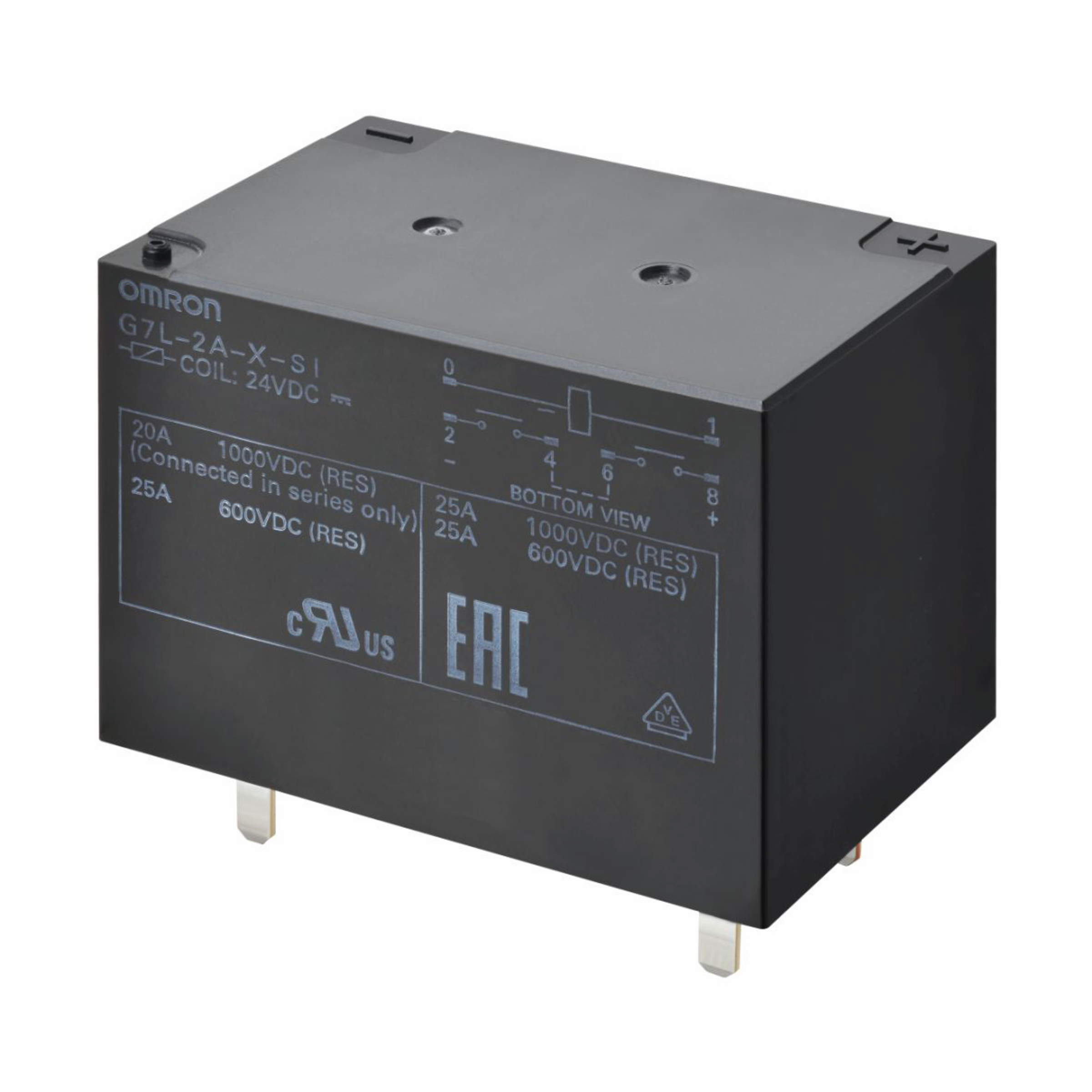

Aratas Corporation PC relay G7L-X THT DPST-NO 40A 12VDC 63Ohm 52,5mmx35,5mmx41mm RTII

G7L-2A-XDC12G7L-2A-XDC12G7L-2A-XDC12G7L-2A-XDC12
NEW
Manufacturer Part No.
G7L-2A-X DC12
Schukat Part No.
G7L-2A-XDC12
Manufacturer
Aratas Corporation
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 80 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.

General:
Following a spin-off, OMRON Electronic Components will operate under the new name ARATAS Corporation.Part numbers, technical specifications, product quality, availability and production standards remain unchanged. Existing designs and procurement processes can therefore continue without modification. Due to the name change, mixed deliveries with old and new markings may occur from April 2027. The PCN dated August 2026 is available below under “Documents”.
Series
G7L-X
contacts
DPST-NO
Contact: Switching Current (min/typ/max)
40 A
Coil: Nominal Voltage DC
12 V DC
Coil Resistance
63 Ohm
Protection class RT
RTII
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Aratas Corporation
Type
  • PC relay
Series
  • G7L-X
Product group
  • E6422

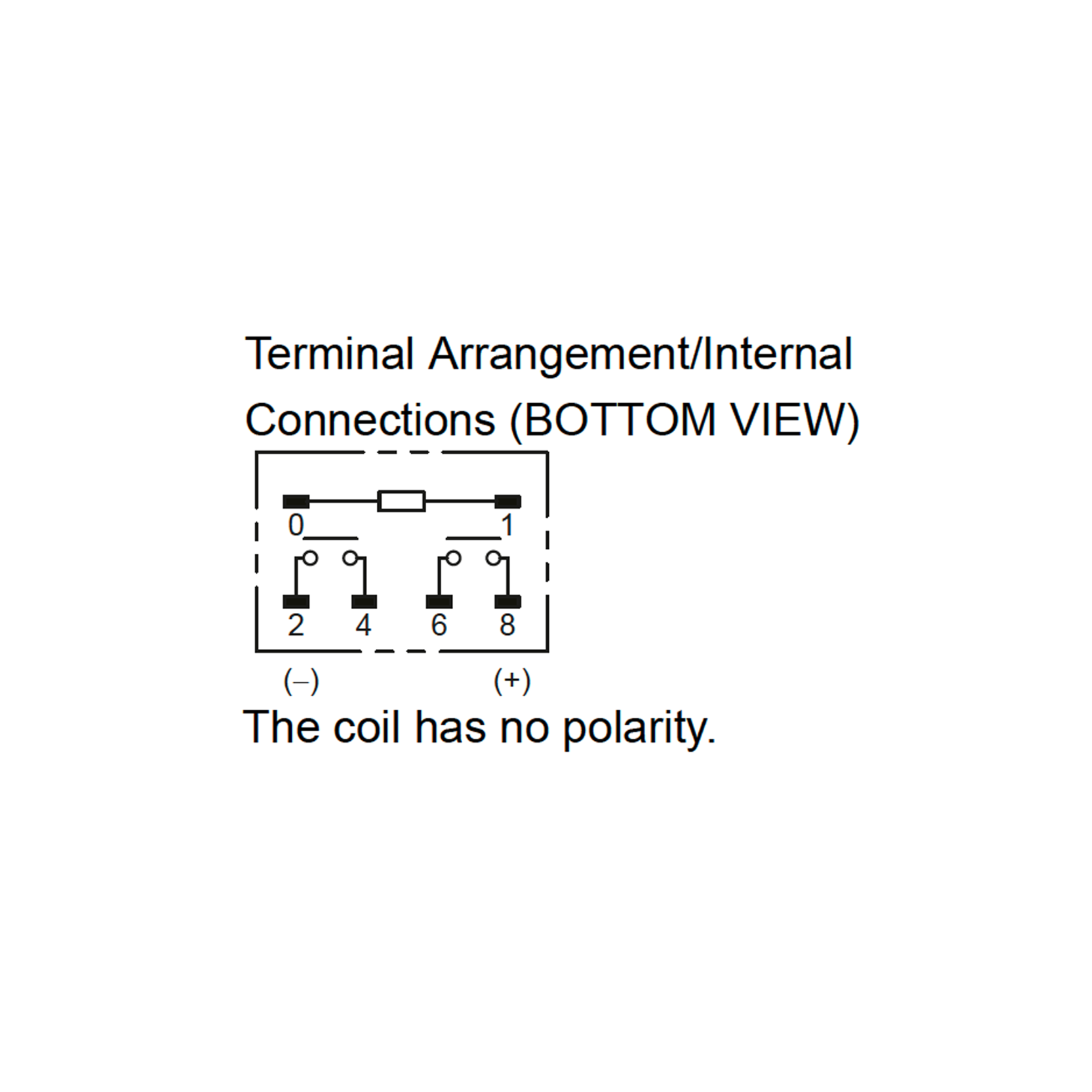

contacts
  • DPST-NO
Contact material
  • Ag alloy
Assembly Type
  • THT
Termination Style
  • Solder connection
Application

  • • Photovoltaic Power Systems
    • Energy Storage System
    • Inverter
    • UPS
    • FA DC link

Features

  • • Compact Power Relay Capable of Switching 1,000VDC Loads
    • DC high capacity switching for both normal and reverse polarity is available with the addition of the reverse polarity specification.
    • Two poles wired in series to break or switch 600 to 1,000VDC.
    • Contributes to a lower power consumption. (low power consumption of approx. 600mW at 50% reduced coil voltage).
    • UL and EN conformed.
    • Designed for safety with 6.0mm contact gap (two-pole series wiring).
    • A series of low contact resistance power relays with an initial contact resistance of 10mΩ max. (with conditions of 5VDC/1A).
    • Flux protection

Application note
  • • These power relays are suitable for switching and interrupting high-power direct currents. In switching applications involving currents below 1 A, switching behavior may become unstable—depending on voltage, etc. • Do not perform automatic soldering. Always solder the terminals by hand. Observe the instructions in the data sheet.
Notice
  • Cross-references:
    • Here you will find suitable relay sockets and accessories.

    General:
    Following a spin-off, OMRON Electronic Components will operate under the new name ARATAS Corporation.Part numbers, technical specifications, product quality, availability and production standards remain unchanged. Existing designs and procurement processes can therefore continue without modification. Due to the name change, mixed deliveries with old and new markings may occur from April 2027. The PCN dated August 2026 is available below under “Documents”.

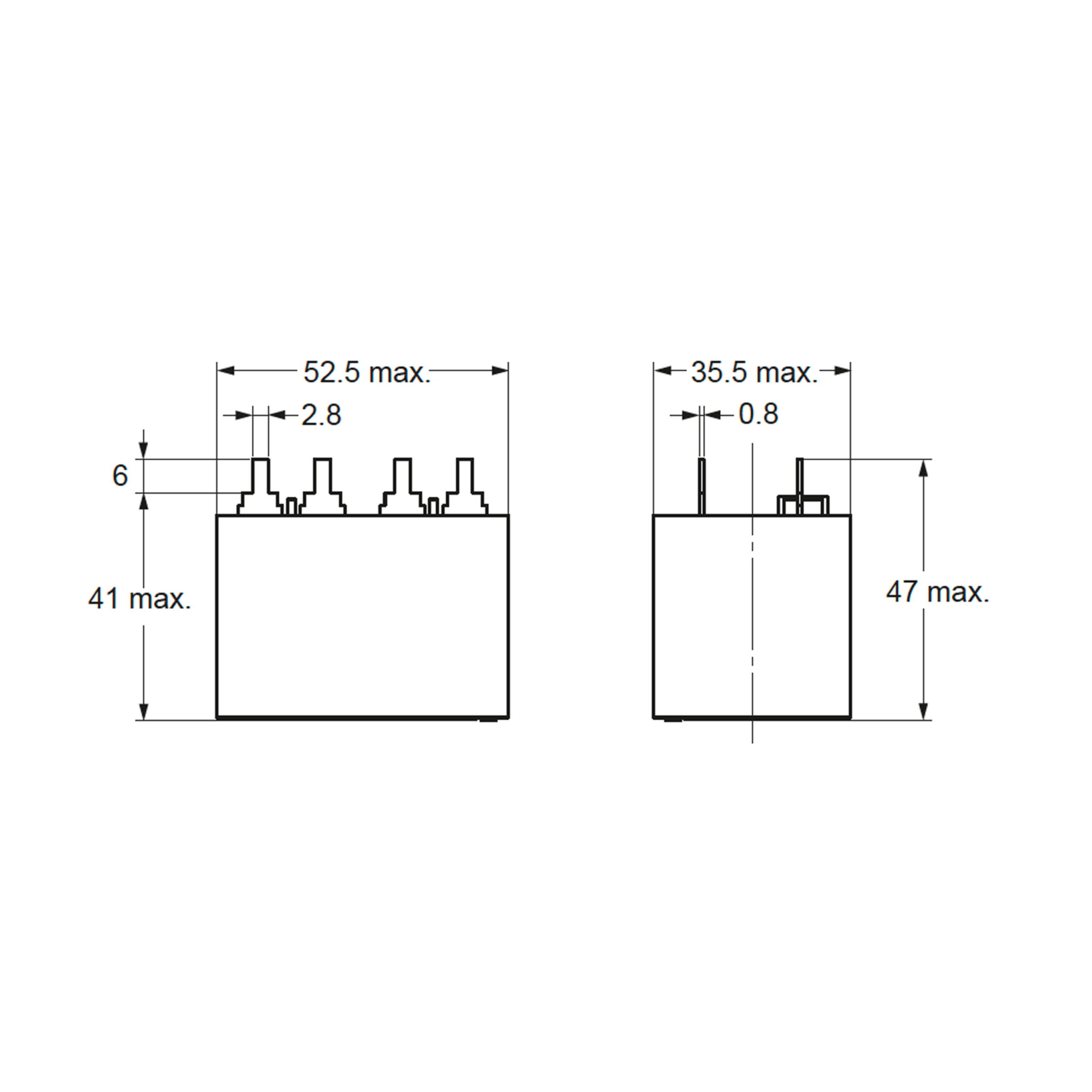

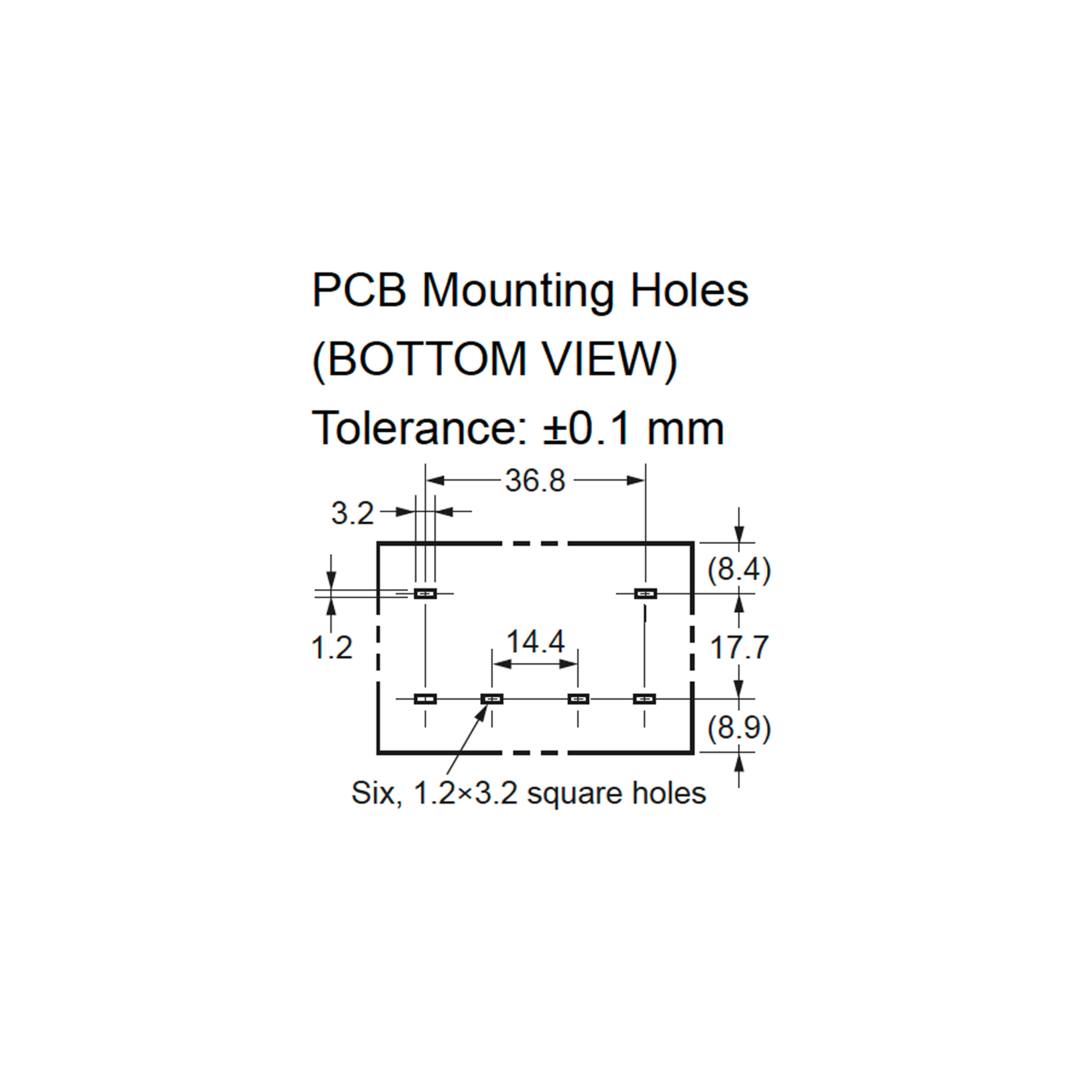

Dimensions and Weights

Dimension: Length
  • 52.5 mm
Dimension: Width
  • 35.5 mm
Dimension: Height
  • 41 mm
Weight
  • 100 g

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact design
  • Double break
Contact: Switching Current (min/typ/max)
  • 40 A
Contact: Switching Voltage, max. DC
  • 1,000 V DC
Contact: Continuous Current
  • 40 A
Contact: Voltage Resistance
  • 10 kV
Contact resistance
  • 100 mOhm
Creepage distance
  • 16 mm
Coil Resistance
  • 63 Ohm
Inductor power
  • 2,300 mW
Coil: Rated Current [mA]
  • 190 mA
Coil: Nominal Voltage DC
  • 12 V DC
Coil: Operating Voltage, min.
  • 9 V
Coil: Operating Voltage, max.
  • 13.2 V
Coil: Drop-out Voltage
  • 1.2 V
Test voltage contact/contact
  • 2,000 V AC
Test Voltage Coil/Contact
  • 4,000 V AC
Response time
  • 30 ms
Drop-out time
  • 30 ms
Mechanical service life
  • 10^6 operations
Service life, electrical
  • see data sheet
Insulation resistance
  • 1.000 MOhm
Vibration resistance
  • 1,5 mm DA
Impact resistance, functional
  • 100 m/s²

Safety/Certifications

Approvals
  • VDE
  • cULus
Standards
  • IEC 61810-1
Protection class RT
  • RTII

Documents

PCN_Notification of Company Name Change_EN.pdf
Download (pdf, 797 KB)
