Test_HVOL-1

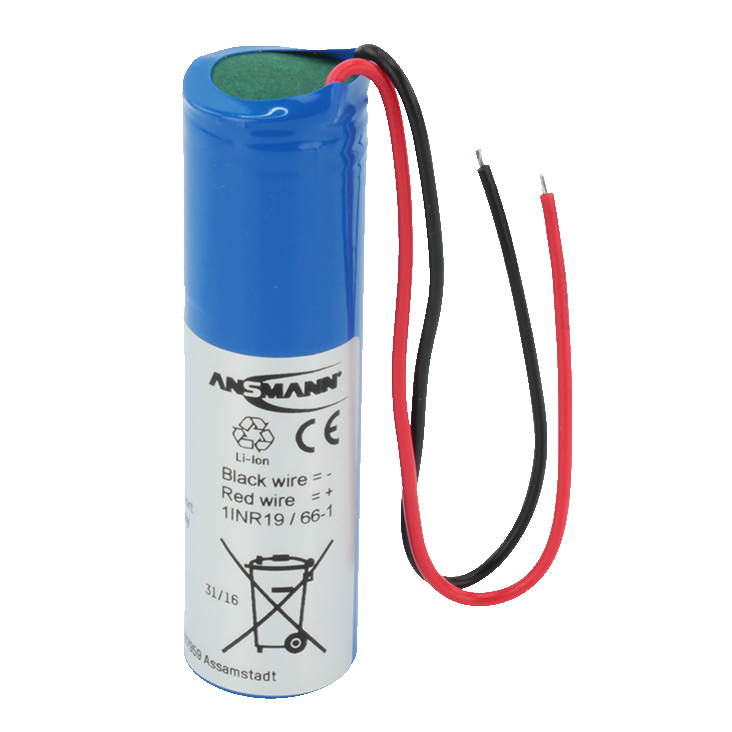

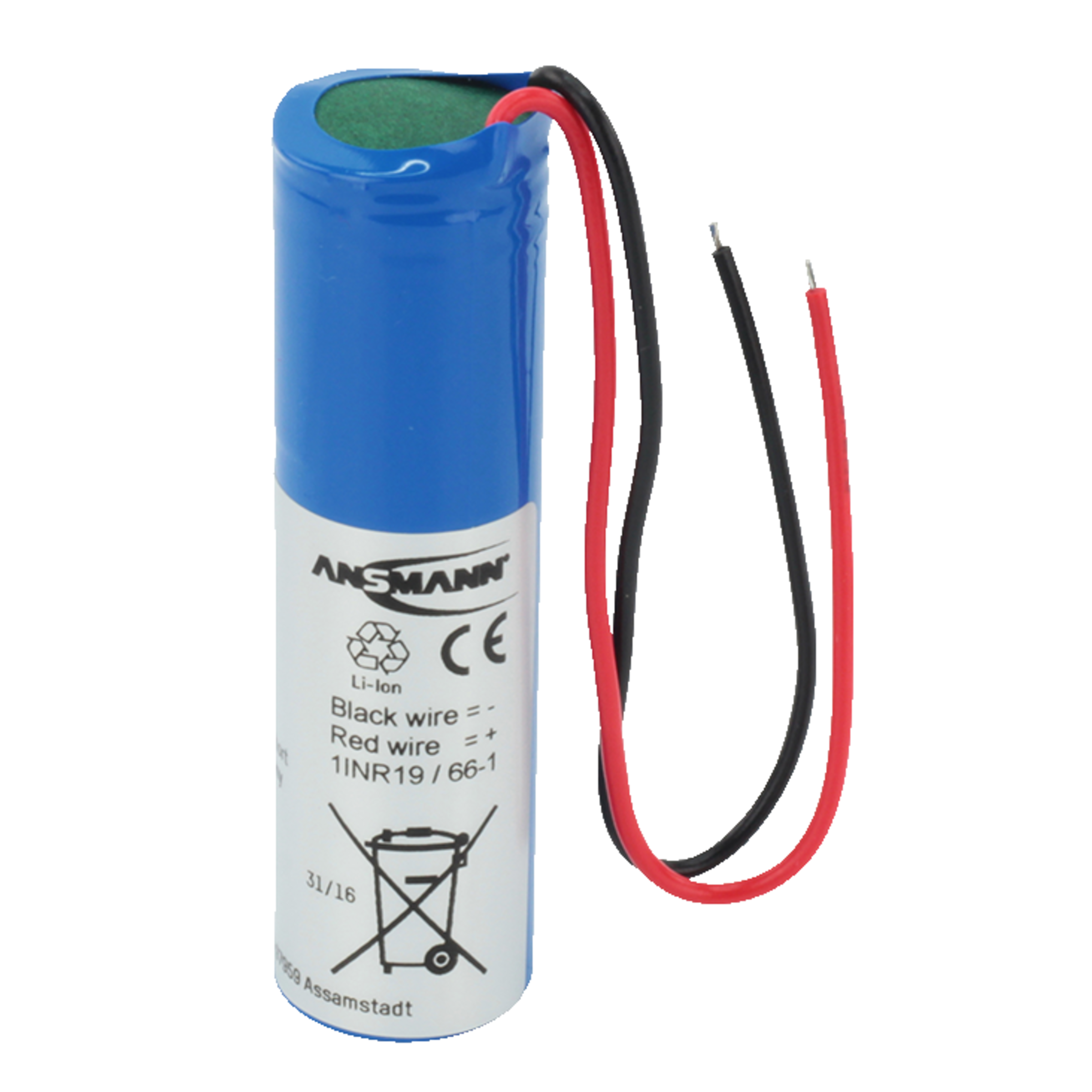

Ansmann Battery pack Round Cell Accu 2347 18650 Lithium ion (Li-Ion) 3,6V 2.600mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 23 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3.6 V
- Nominal capacity
- 2,600 mAh
- Chemical system
- Lithium ion (Li-Ion)
- Other designation
- 18650
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Prefered charge state, min.
- 0.5 %
- Prefered charge state, max.
- 0 %
- Self-discharge (% p.m.)
- 5 %/Monat
- Storage Temperature Min.
- -20 °C
Electrical features
- Nominal capacity
- 2,600 mAh
- Rated Voltage
- 3.6 V
- Charge voltage, standard
- 4.2 V
Safety/Certifications
- Approvals
- CE
Conformity
- REACH Notice
- REACh Art. 33: contains 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) CAS# 110-71-4; UL-recognition -> MH 13654 (N)
Documents
1S1P_Akku-Pack-Datasheet.pdf
MSDS Ansmann Li-Ion D 26022025.pdf
MSDS_Ansmann_Li-Ion_Batteries.pdf
