9164016

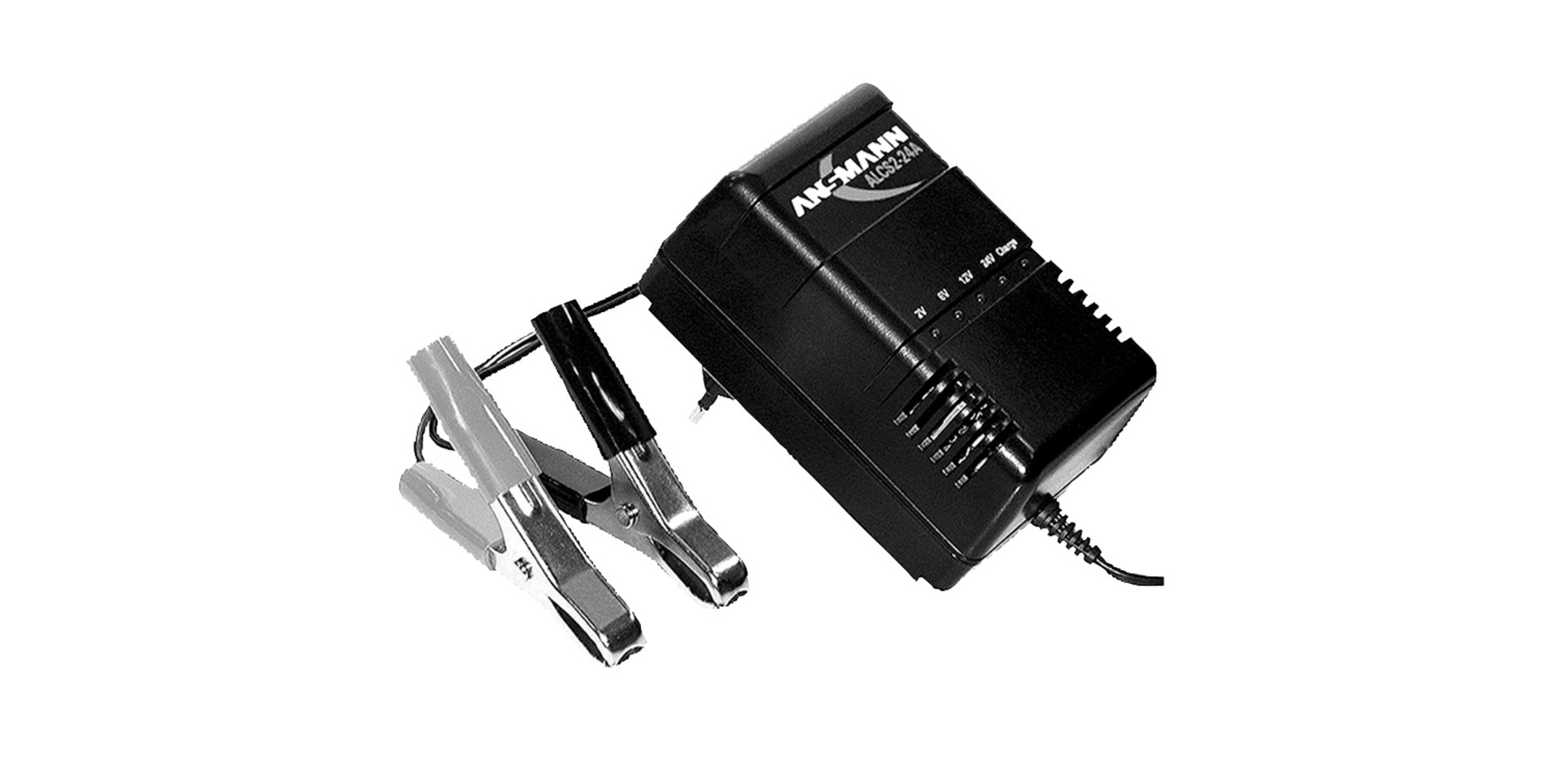

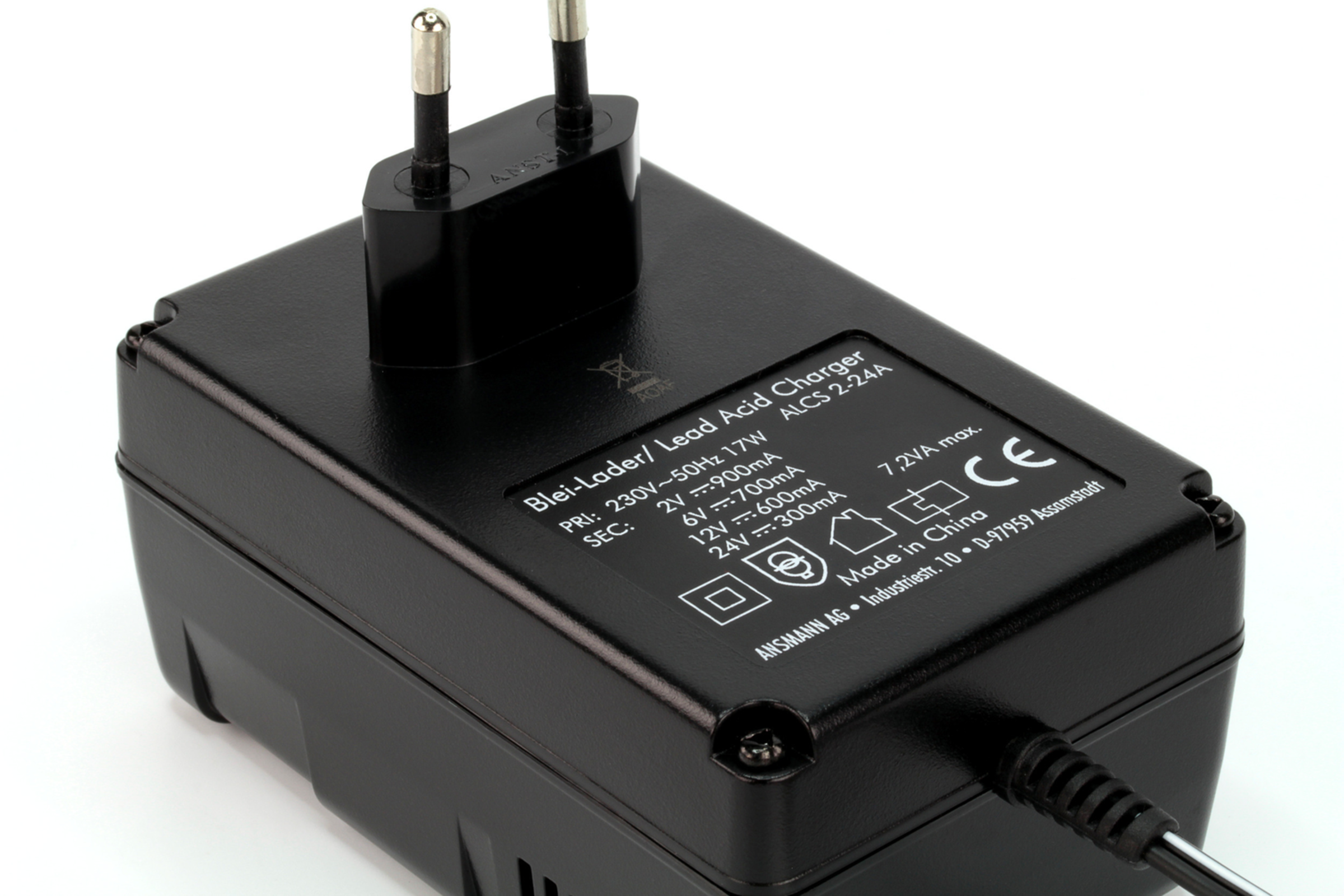

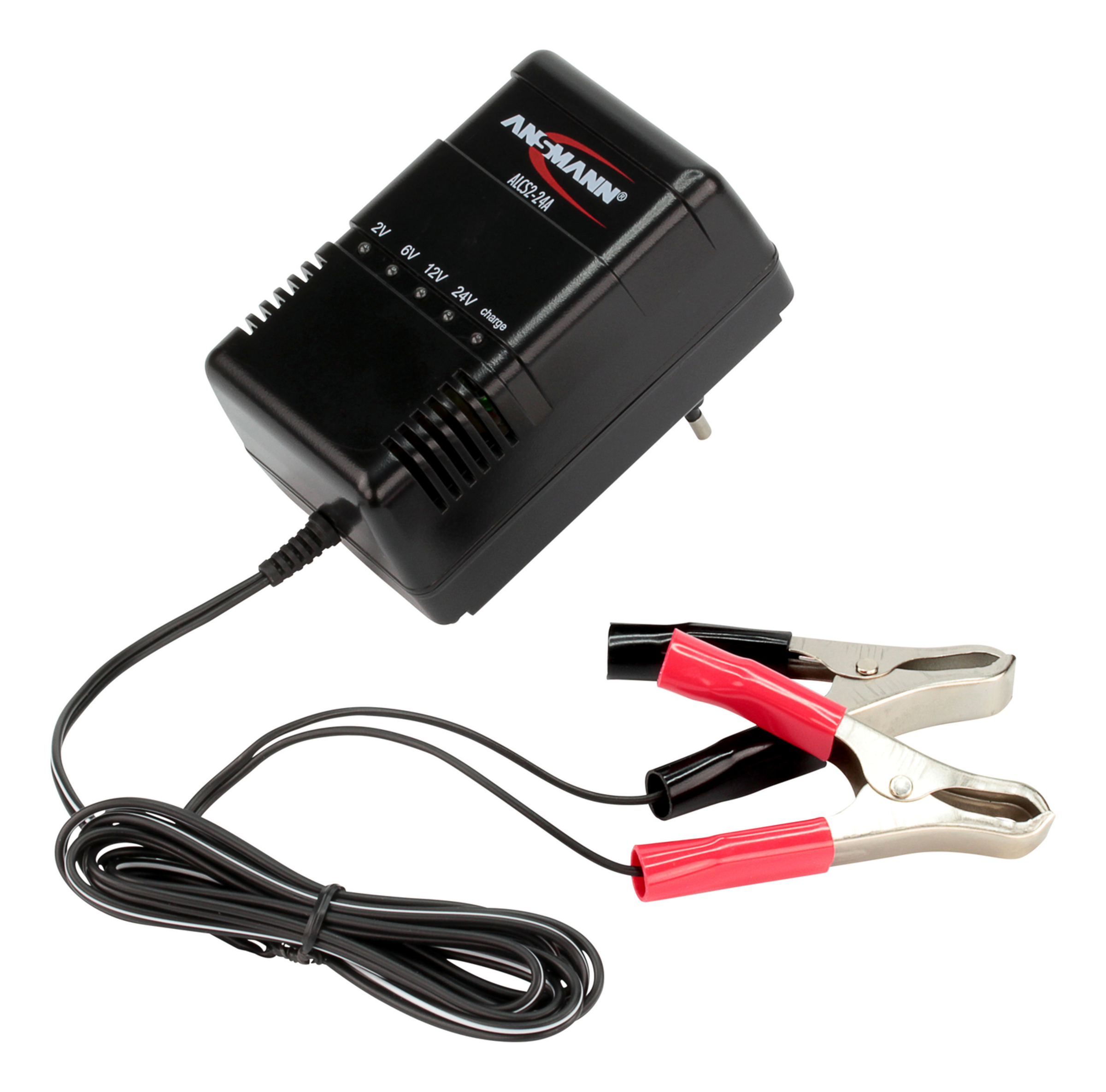

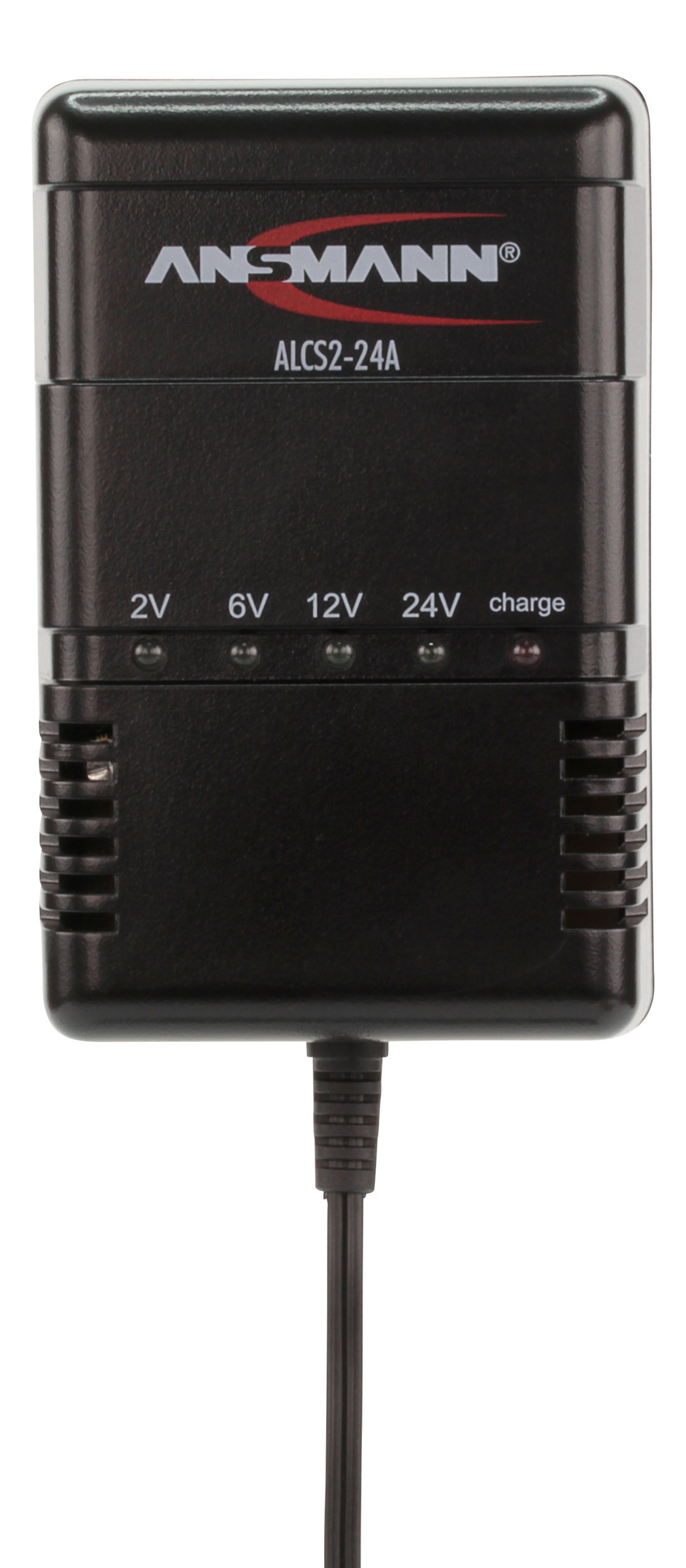

Ansmann Lead Battery Charger 7,2 W 24 V 0,3 A

ALCS2-24AALCS2-24AALCS2-24AALCS2-24AALCS2-24AALCS2-24A
Manufacturer Part No.
9164016
Schukat Part No.
ALCS2-24A
Manufacturer
Ansmann
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

38 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
You can find suitable surge protection devices here.
Here you will find suitable rechargeable batteries.
Here you will find suitable EMC and interference suppression components.
Chargeable battery systems
Lead
Output Power
7.2 W
Output voltage
24 V
Output current
0.300 A
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Ansmann
Series
  • ALCS
Product group
  • S7811
Application
  • Household
Package/Case

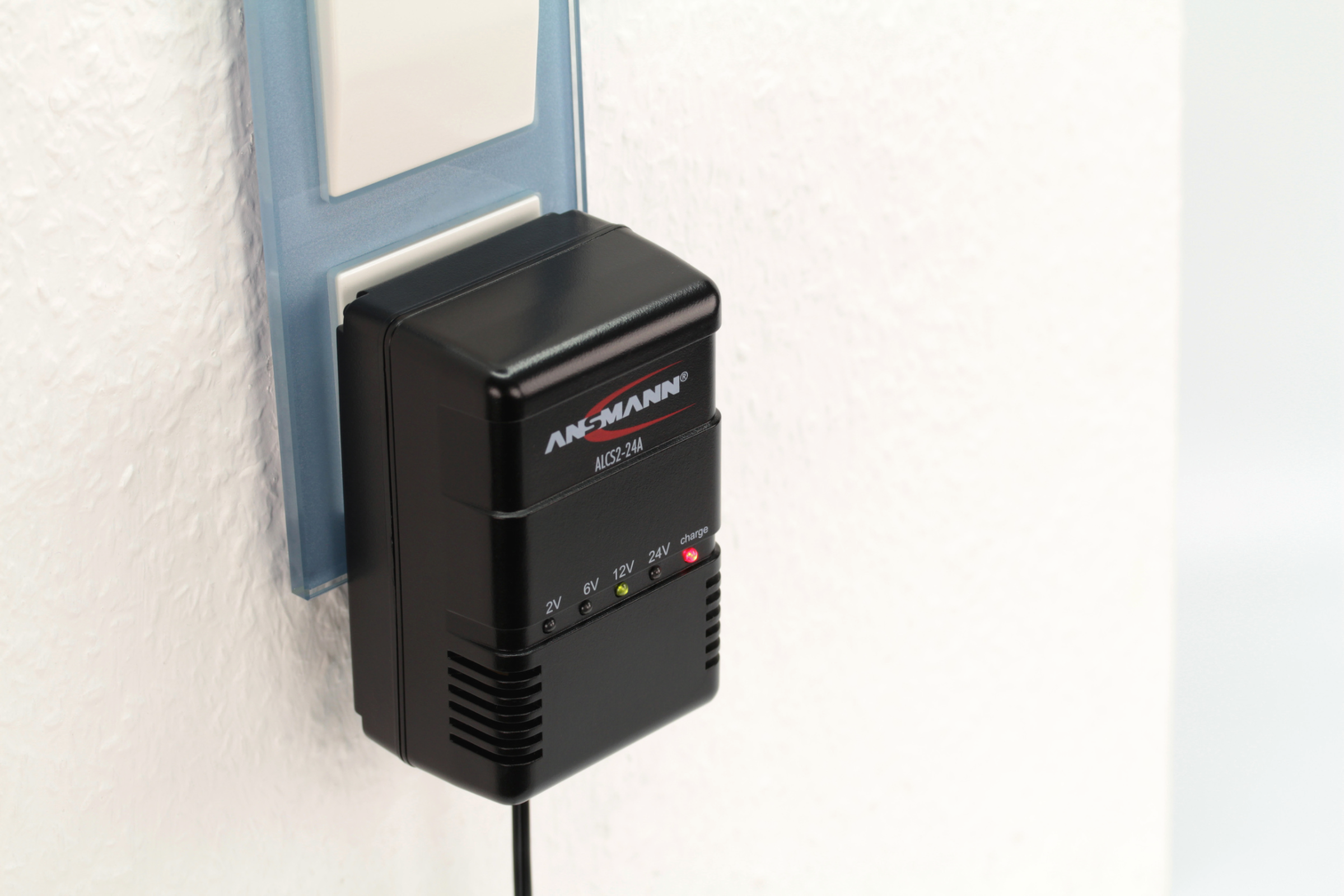

  • Wall Mount Power Supply
Dimension: Length
  • 106 mm
Dimension: Width
  • 68 mm
Dimension: Height
  • 51 mm
Weight
  • 171 g
Manufacturer's warranty (years)
  • 3
Product description
  • In-car charger for maintenance-free lead or lead-gel rechargeable batteries 2V, 6V, 12V or 24V lead batteries (such as those used in cars, boats, motorbikes, scooters, drive-on gardening tools or children's vehicles) can be charged. Quick and reliable contact can be made with the lead batteries thanks to the pole clamps. The battery voltage is set automatically. The ALCS 2-24A is protected against short-circuits and reverse polarity. Automatic charge current detection The charge current is 900mA at 2V, 700mA at 6V, 600mA at 12V and 300mA at 24V. Charging is implemented in accordance with the I-V characteristic curve. There is overcharging protection thanks to the latest charging technology. As a result, the unit does not have to be immediately disconnected from the rechargeable battery and the maintenance charging keeps the batteries fresh. In addition to the actual charging, the ALCS 2-24 A is also ideally suited for maintenance charging. The battery can remain connected to the charger throughout the winter. This prevents deep discharge. Batteries for motorbikes, motorboats, lawnmowers, etc. can thus survive the winter and be ready for use at any time. Of course, the same also applies to an intermediate charge as soon as the battery becomes weak or has not been used for a longer period of time.
Features
  • Adjustable output voltage
Application note
  • Suitable for 2V, 6V, 12V or 24V lead or lead-gel rechargeable batteries
Notice

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -25 °C
Storage Temperature Max.
  • 70 °C
Chargeable battery systems
  • Lead
Battery capacity, min.
  • 1.2 Ah
Battery capacity, max.
  • 40 Ah

Input

Input voltage max. AC
  • 230 V
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Output Power
  • 7.2 W
Output voltage
  • 24 V
Output current
  • 0.300 A
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Cable length, output
  • 200 cm
Temperature compensation

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Standards (safety)
  • EN 60335-1

Documents

9164016_ALCS-2-24A_Manual.pdf
Download (pdf, 1.578 KB)

Other Products

All Products of the Series
NEW
Loading...
1001-0015
Ansmann

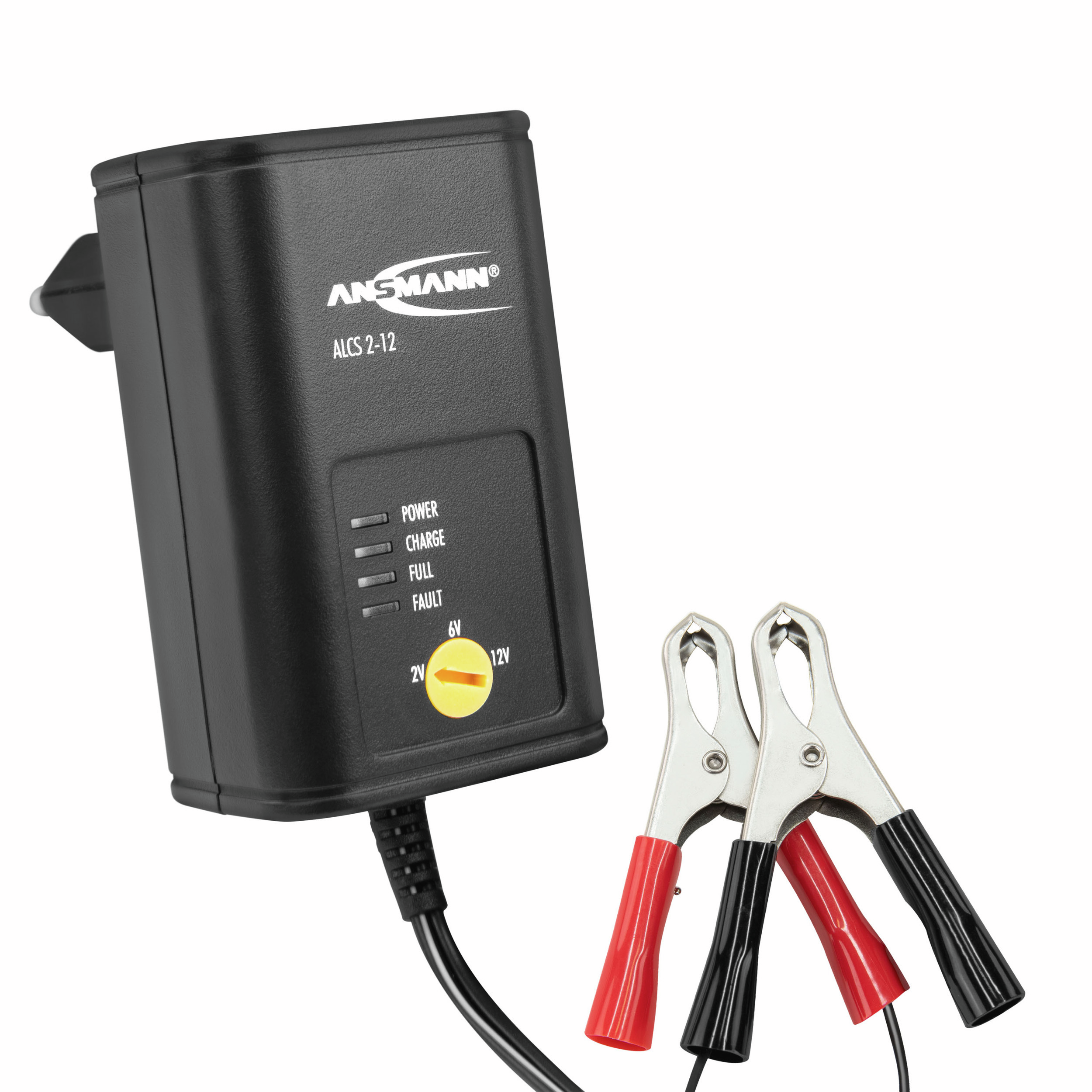

Lead Battery Charger 4,8 W 12 V 0,4 A
