5030641

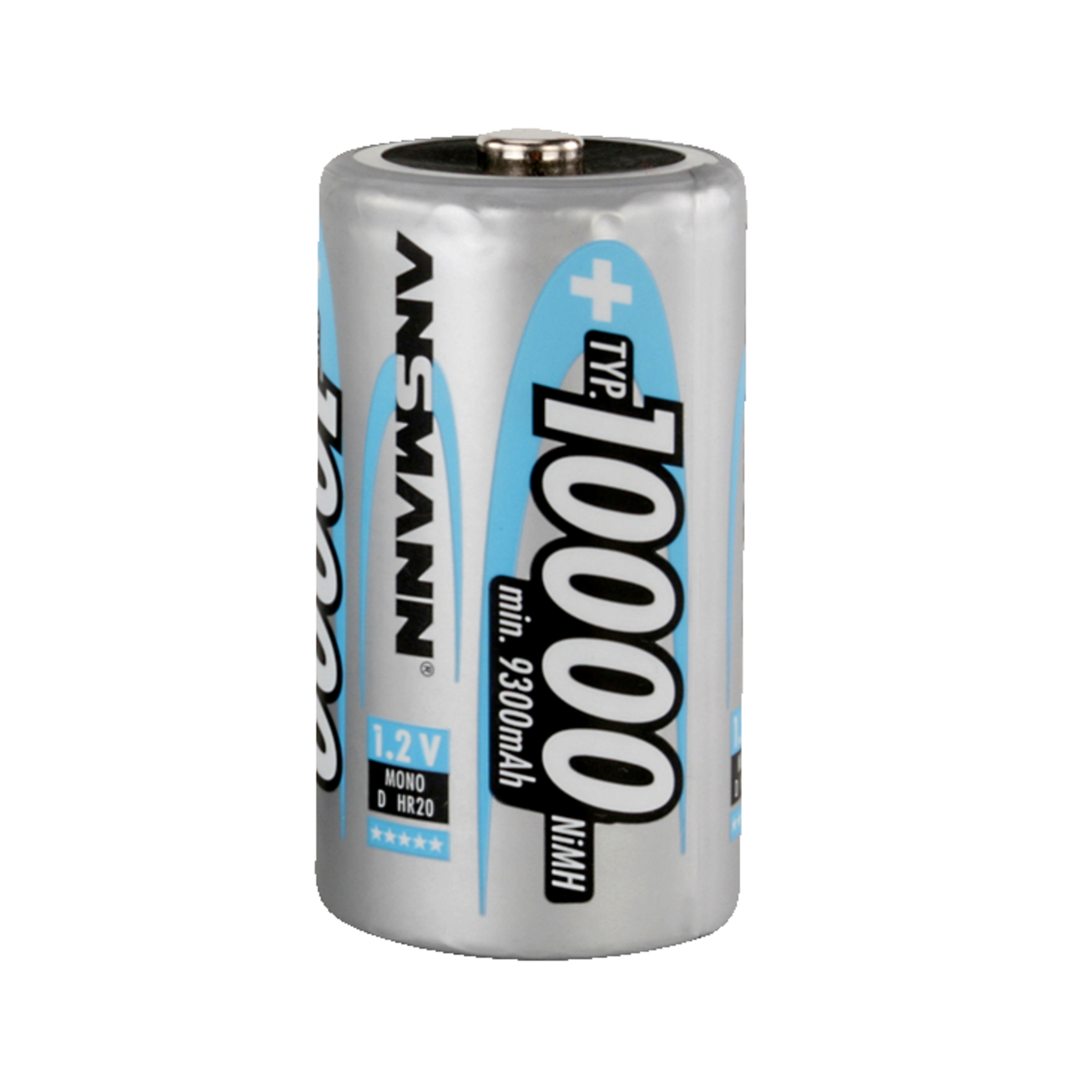

Ansmann Nickel Metal Hydride Round Cell DIGITAL 1,2V 10.000mAh HR20 D, Mono
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2 or multiple of 2)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 1.2 V
- Nominal capacity
- 10,000 mAh
- Chemical system
- Nickel Metal Hydride
- IEC Code
- HR20
- Other designation
- D, Mono
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 500 Zyklen
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 30 °C
Electrical features
- Nominal capacity
- 10,000 mAh
- Impedance
- 12 mOhm
- Rated Voltage
- 1.2 V
- Charge voltage, max.
- 1.5 V
- Charge end voltage
- 1 V
- Charge current, standard
- 1,000 mA
- Charge current, fast
- 2,750 mA
- Charge current, max.
- 5,000 mA
- Discharge current, max.
- 10,000 mA
- Float charge current, min.
- 50 mA
- Float charge current, max.
- 350 mA
Documents
MSDS Ansmann NiMH D 04022021.pdf
MSDS Ansmann NiMH D 04022021.pdf
