2447-3034-01

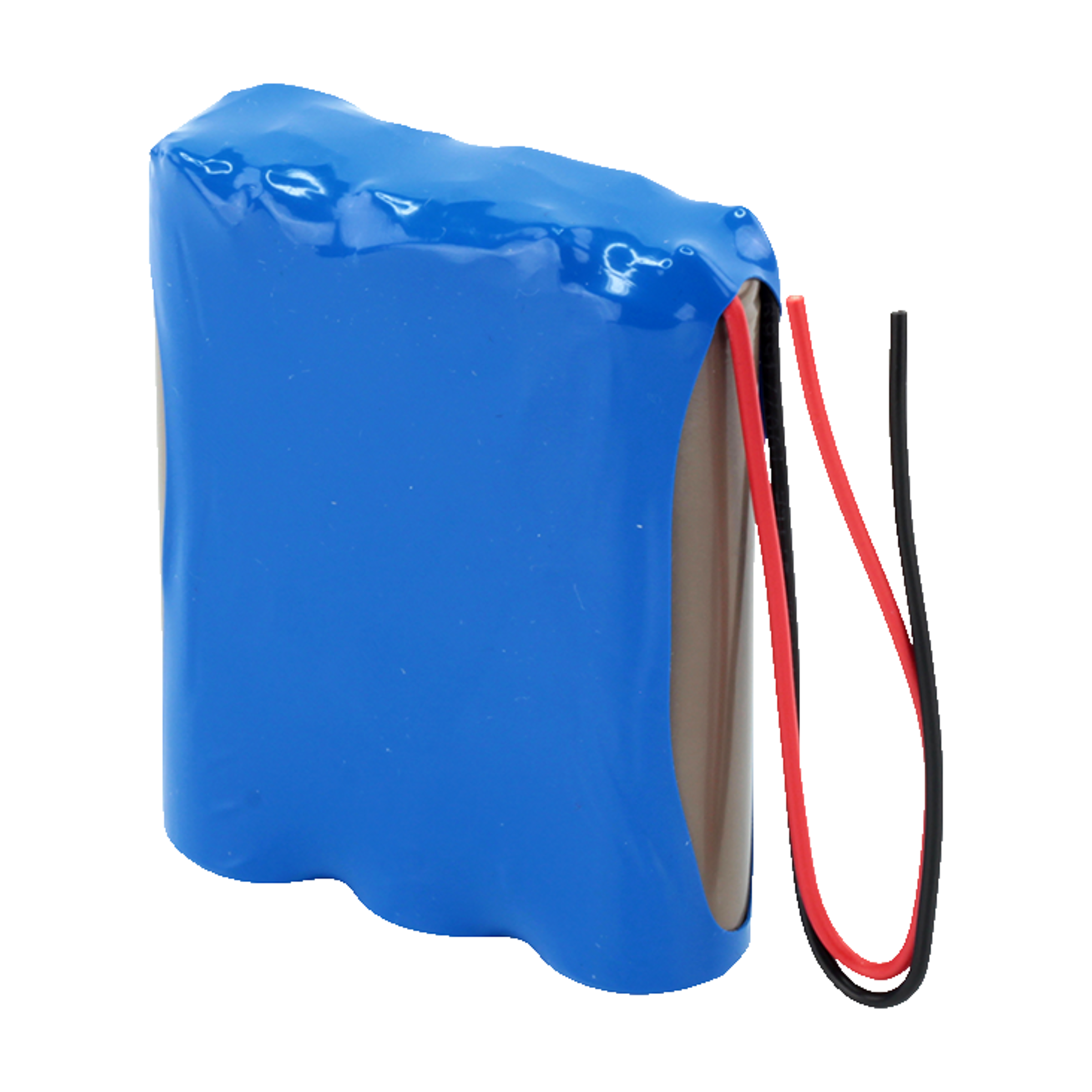

Ansmann Battery pack Round Cell Accu 2447 18650 Lithium ion (Li-Ion) 3,7V 7.800mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 09.06.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
- Rated Voltage
- 3.7 V
- Nominal capacity
- 7,800 mAh
- Chemical system
- Lithium ion (Li-Ion)
- Other designation
- 18650
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Self-discharge (% p.m.)
- 5 %/Monat
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 30 °C
Electrical features
- Nominal capacity
- 7,800 mAh
- Rated Voltage
- 3.7 V
- Charge voltage, standard
- 4.2 V
- Charge current, max.
- 3,000 mA
- Discharge current, max.
- 3,000 mA
Safety/Certifications
- Approvals
- CE
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
Documents
1S3P_Akku-Pack-Datasheet.pdf
MSDS Ansmann Li-Ion D 26022025.pdf
MSDS_Ansmann_Li-Ion_Batteries.pdf
