2347-3020

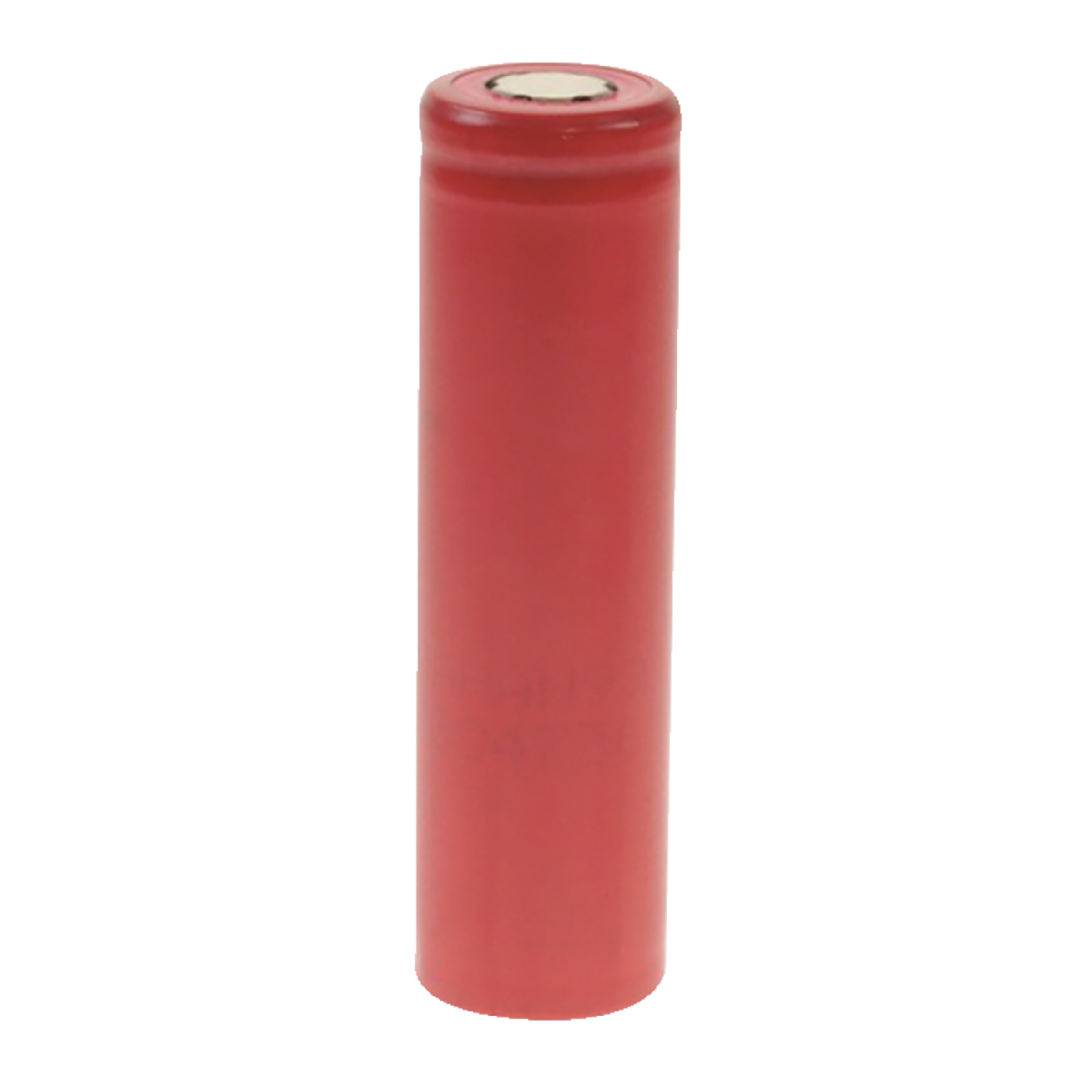

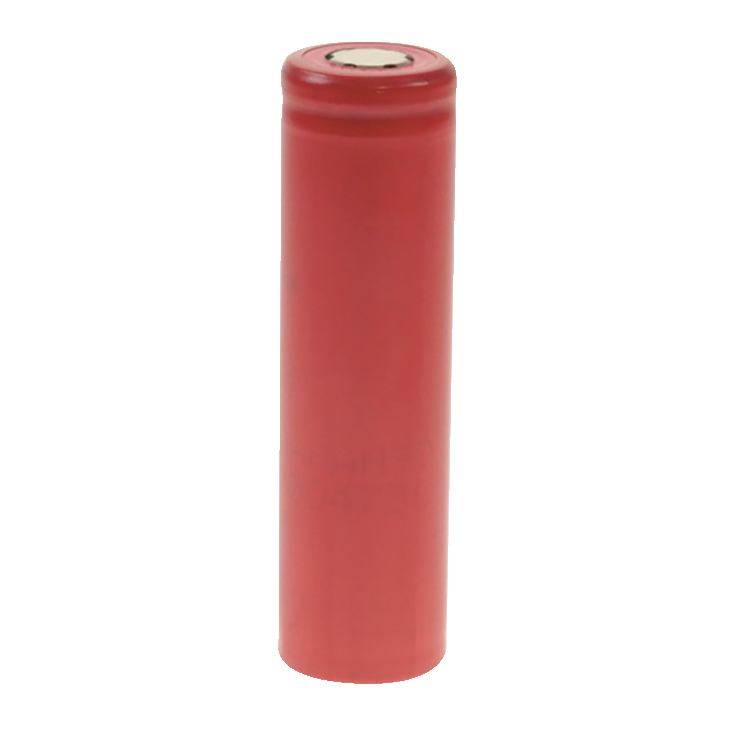

Ansmann Lithium Ion Round Cell 2347 3,6V 3.500mAh 18650 18650
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
18 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 3.6 V
- Nominal capacity
- 3,500 mAh
- Chemical system
- Lithium Ion
- IEC Code
- 18650
- Other designation
- 18650
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 60 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 40 °C
Electrical features
- Nominal capacity
- 3,500 mAh
- Rated Voltage
- 3.6 V
- Charge current, standard
- 1,675 mA
- Charge current, max.
- 3,350 mA
- Discharge current, max.
- 10,000 mA
- Float charge current, min.
- 670 mA
Hazardous Substances/Goods
- UN number
- 3480 - Lithium-ion battery
