2311-3003

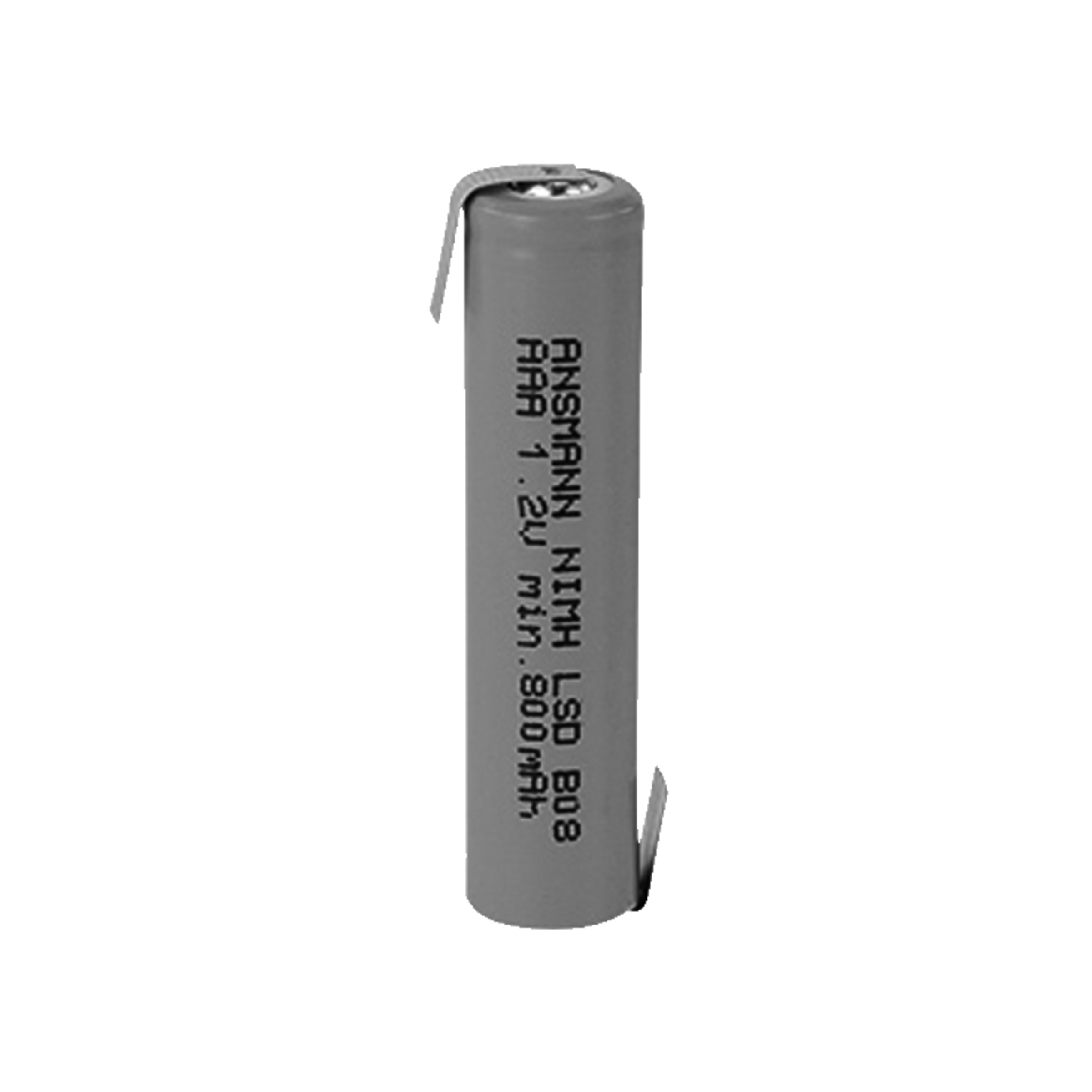

Ansmann Nickel Metal Hydride Round Cell maxE 1,2V 800mAh HR03 AAA, Micro Radial Tabs

Manufacturer Part No.
2311-3003
Schukat Part No.
NIMH2311-3003
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

78 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Rated Voltage
1.2 V
Nominal capacity
800 mAh
Chemical system
Nickel Metal Hydride
IEC Code
HR03
Other designation
AAA, Micro

Specifications

Open all

General

Manufacturer
  • Ansmann
Type
  • Round Cell
Series
  • maxE
Chemical system
  • Nickel Metal Hydride
IEC Code
  • HR03
Other designation
  • AAA, Micro
Weight
  • 12 g
Termination Style
  • Radial Tabs
Features
  • - Environmentally-friendly: 0% cadmium, lead or mercury
    - Excellent high drain performance
    - Long service life
    - No memory effect
    - Low self-discharge: 75% of capacity after one year
    - Fast charging
    - Solder tags in Z form

Operating conditions

Operating temperature, charge, min.
  • 0 °C
Operating temperature, charge, max.
  • 45 °C
Operating temperature, discharge, min.
  • -20 °C
Operating temperature, discharge, max.
  • 65 °C
Shelf life, IEC
  • 500 Zyklen
Storage Temperature Min.
  • -20 °C
Storage Temperature Max.
  • 30 °C

Electrical features

Nominal capacity
  • 800 mAh
Rated Voltage
  • 1.2 V
Charge end voltage
  • 1 V

Documents

MSDS Ansmann NiMH D 04022021.pdf
MSDS Ansmann NiMH D 04022021.pdf
