2000-0001-03

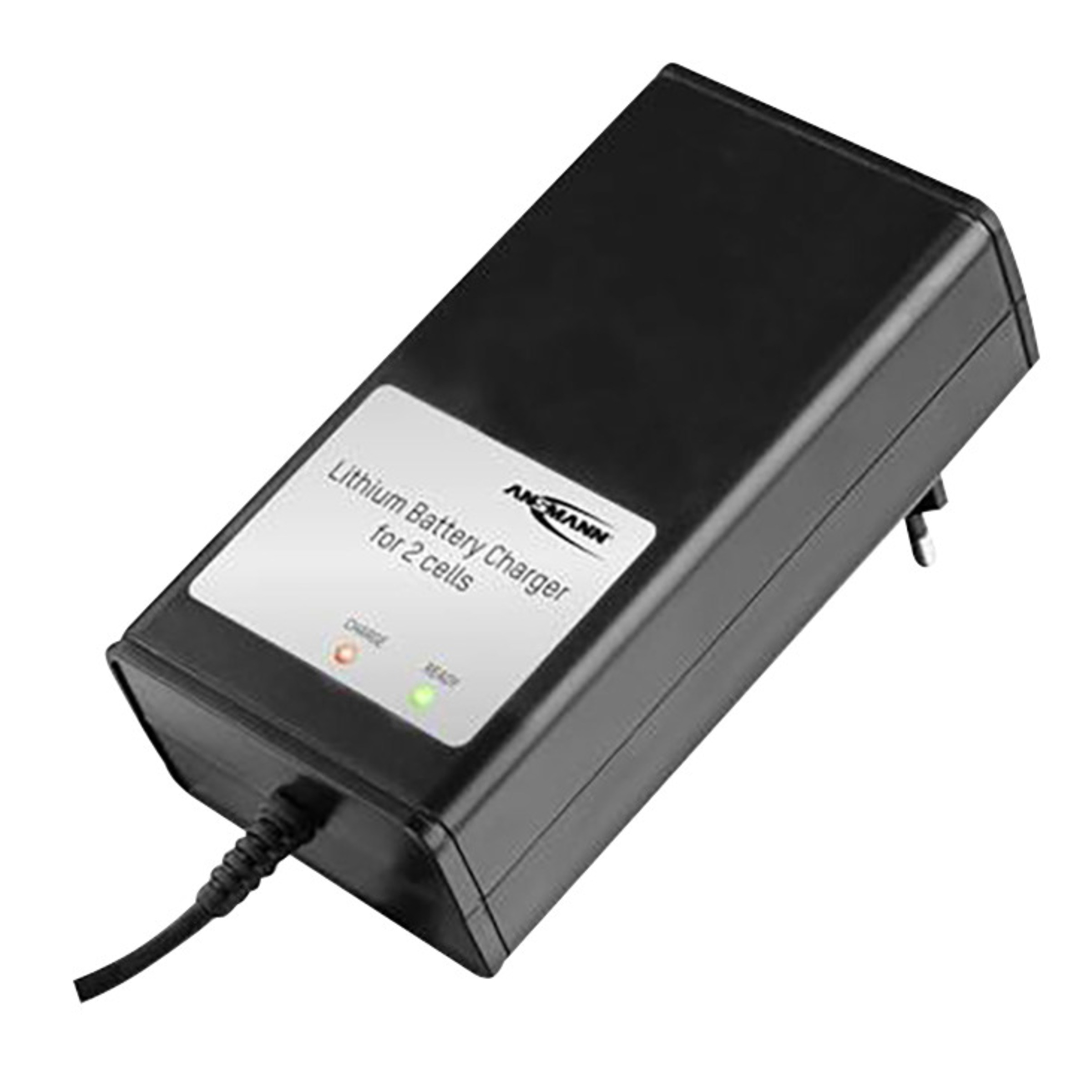

Ansmann Li-Ion Lead NiMH Battery Charger 11,1 V 2 A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
9 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Lead
Li-Ion
NiMH - Output voltage
- 11.1 V
- Output current
- 2.000 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 40 °C
- Storage Temperature Min.
- -25 °C
- Storage Temperature Max.
- 70 °C
- Usable battery types
- Battery Pack
- Chargeable battery systems
- Lead
- Li-Ion
- NiMH
Input
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 100 V
- Input voltage max. AC
- 240 V
- Leakage current, max.
- 2,000 mA
- Power factor correction (PFC)
- Connection type, input
- Plug Adapter
Output
- Number of outputs
- 1
- Output voltage
- 11.1 V
- Output current
- 2.000 A
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- DIN 2-Pin
- Cable length, output
- 180 cm
- Temperature compensation
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP20
- Approvals
- CE
- FCC
- UKCA
