1523-0005

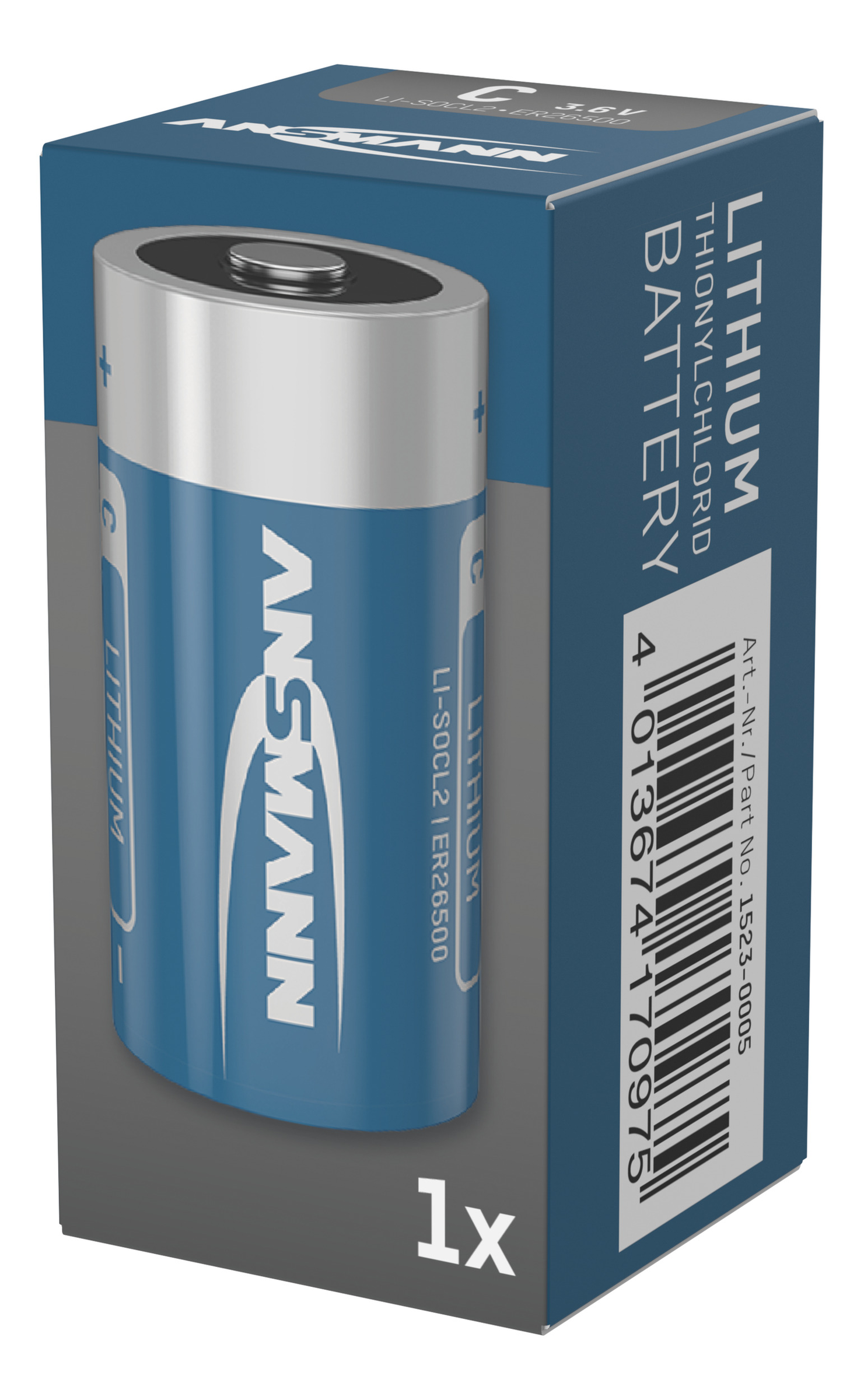

Ansmann Lithium thionyl chloride (LiSOCl2) Round Cell LTC 3,6V ER26500 C, Baby
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3.6 V
- Nominal capacity
- 8,500 mAh
- Chemical system
- Lithium thionyl chloride (LiSOCl2)
- IEC Code
- ER26500
- Other designation
- C, Baby
Specifications
Open all
Operating conditions
- Operating temperature min.
- -55 °C
- Operating temperature max.
- 85 °C
- Storage Temperature Min.
- 5 °C
- Storage Temperature Max.
- 20 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 8,500 mAh
- Energy storage, capacity
- 30.6 Wh
- Rated Voltage
- 3.6 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
MSDS Ansmann Lithium Metal Batteries (Thionyl Chloride) 03022025.pdf
UN38.3.5 ER26500H Ansmann 112.pdf
Other Products
All Products of the Series
