1502-0005

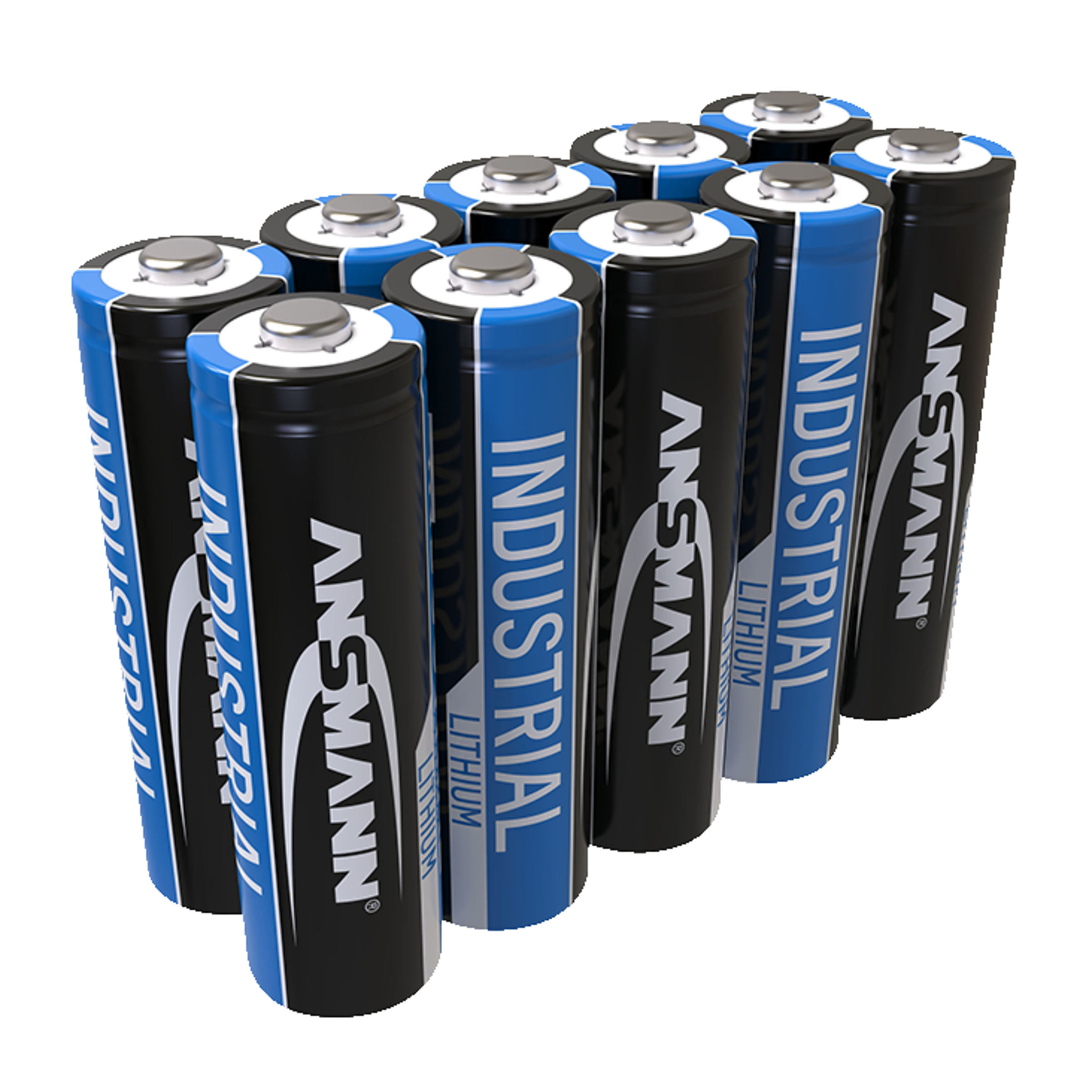

Ansmann Lithium iron sulfate (LiFeS2) Round Cell Industrial 1,5V FR6 AA, Mignon Pack of 10
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 16 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 1.5 V
- Nominal capacity
- 3,000 mAh
- Chemical system
- Lithium iron sulfate (LiFeS2)
- IEC Code
- FR6
- Other designation
- AA, Mignon
- Delivery unit
- Pack of 10
Specifications
Open all
Operating conditions
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 60 °C
- Relative humidity
- 75 %
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 40 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 3,000 mAh
- Energy storage, capacity
- 4.5 Wh
- Rated Voltage
- 1.5 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
MSDS Ansmann Lithium-Metall-Batterien (LiFeS2) DE 03012024.pdf
SDS Ansmann Lithium Metall Batteries (Iron Disulfide) EN 28012025.pdf
