1322-0005

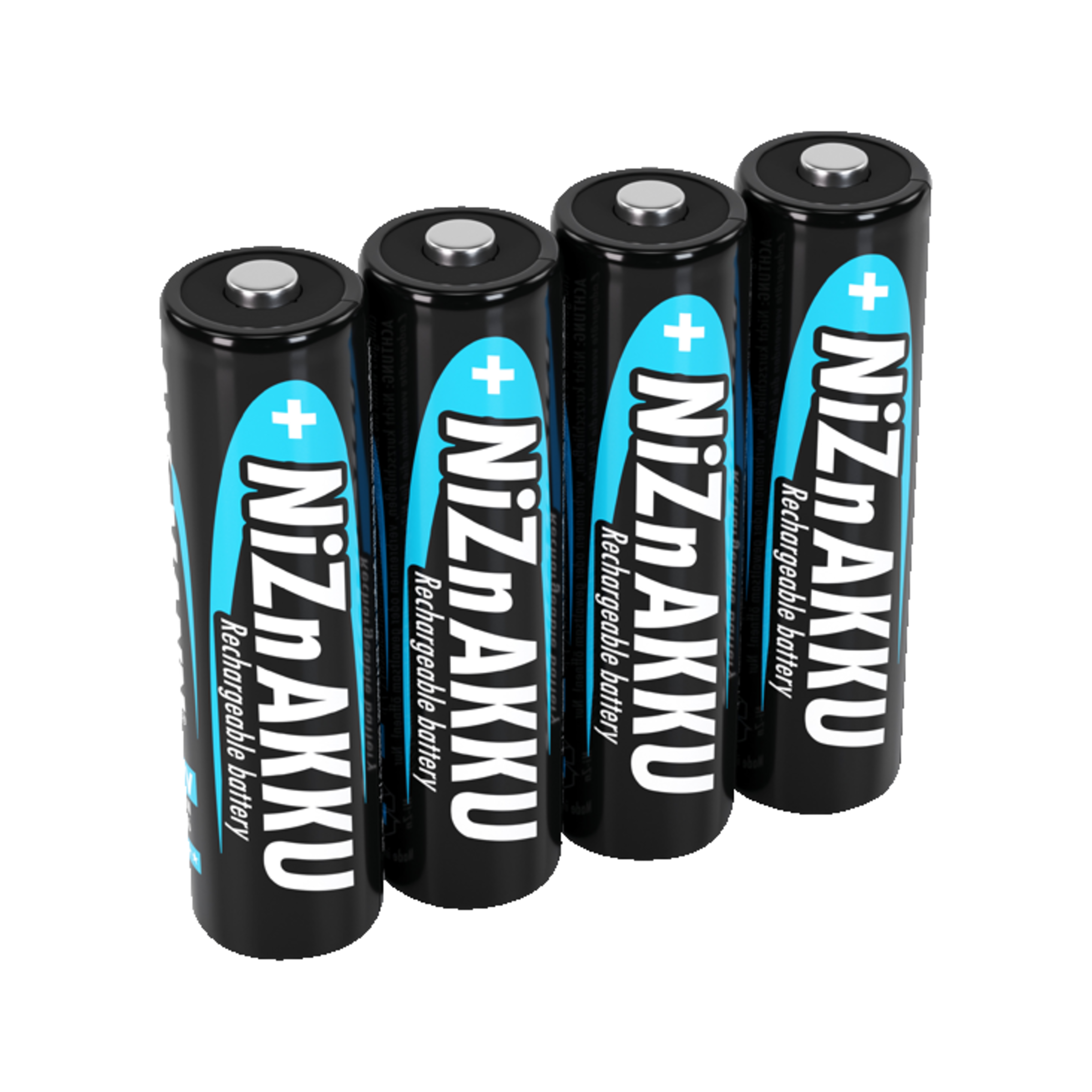

Ansmann Zinc nickel (Zn-Ni) Round Cell Accu NiZn13 1,65V 1.500mAh ZR6 AA, Mignon Blister pack of 4
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 4 or multiple of 4)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Rated Voltage
- 1.65 V
- Nominal capacity
- 1,500 mAh
- Chemical system
- Zinc nickel (Zn-Ni)
- IEC Code
- ZR6
- Other designation
- AA, Mignon
- Delivery unit
- Blister pack of 4
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- -20 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 300 Zyklen
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 30 °C
Electrical features
- Nominal capacity
- 1,500 mAh
- Energy storage, capacity
- 2.5 Wh
- Rated Voltage
- 1.65 V
- Charge voltage, max.
- 1.9 V
- Charge end voltage
- 1.1 V
- Charge current, standard
- 300 mA
