1311-0028

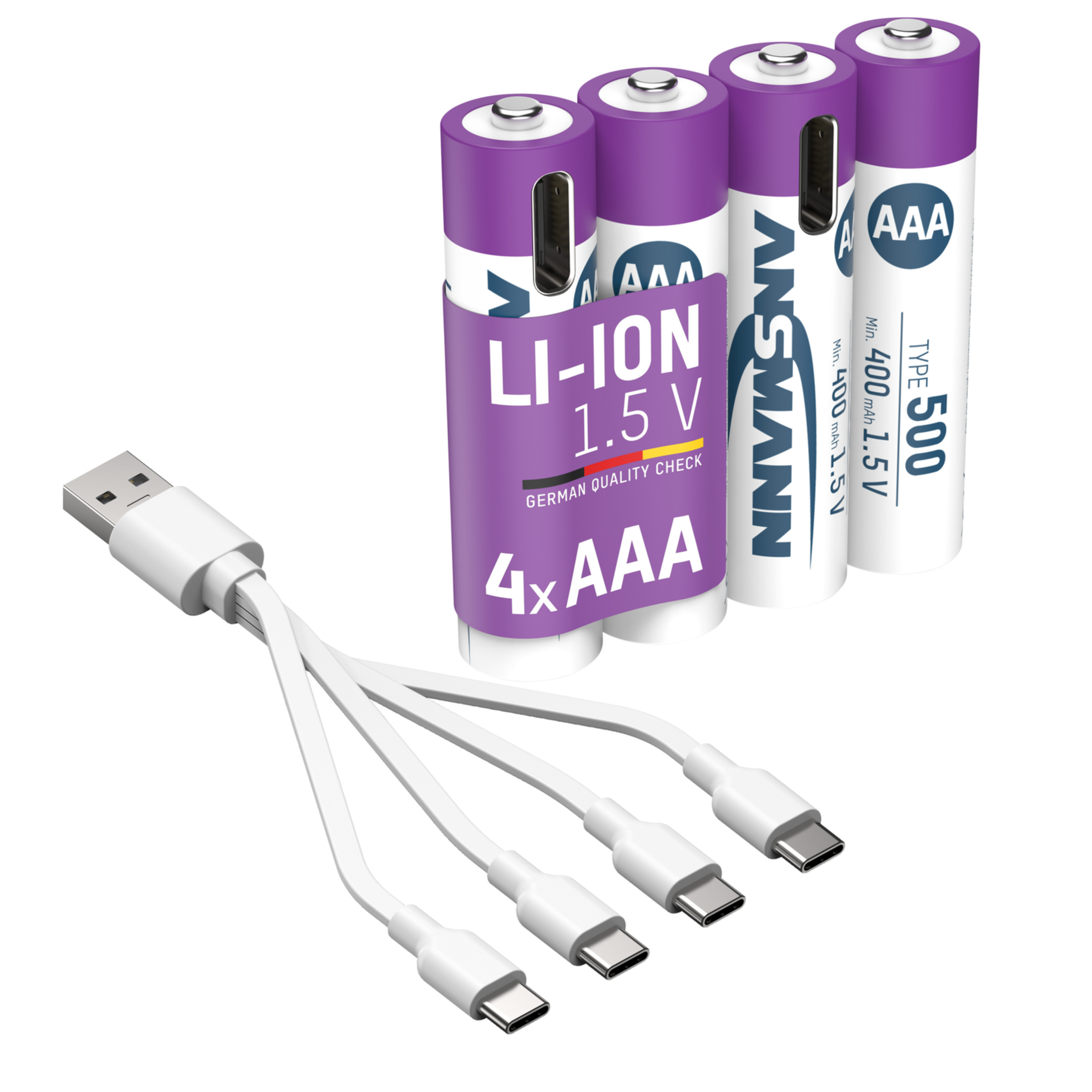

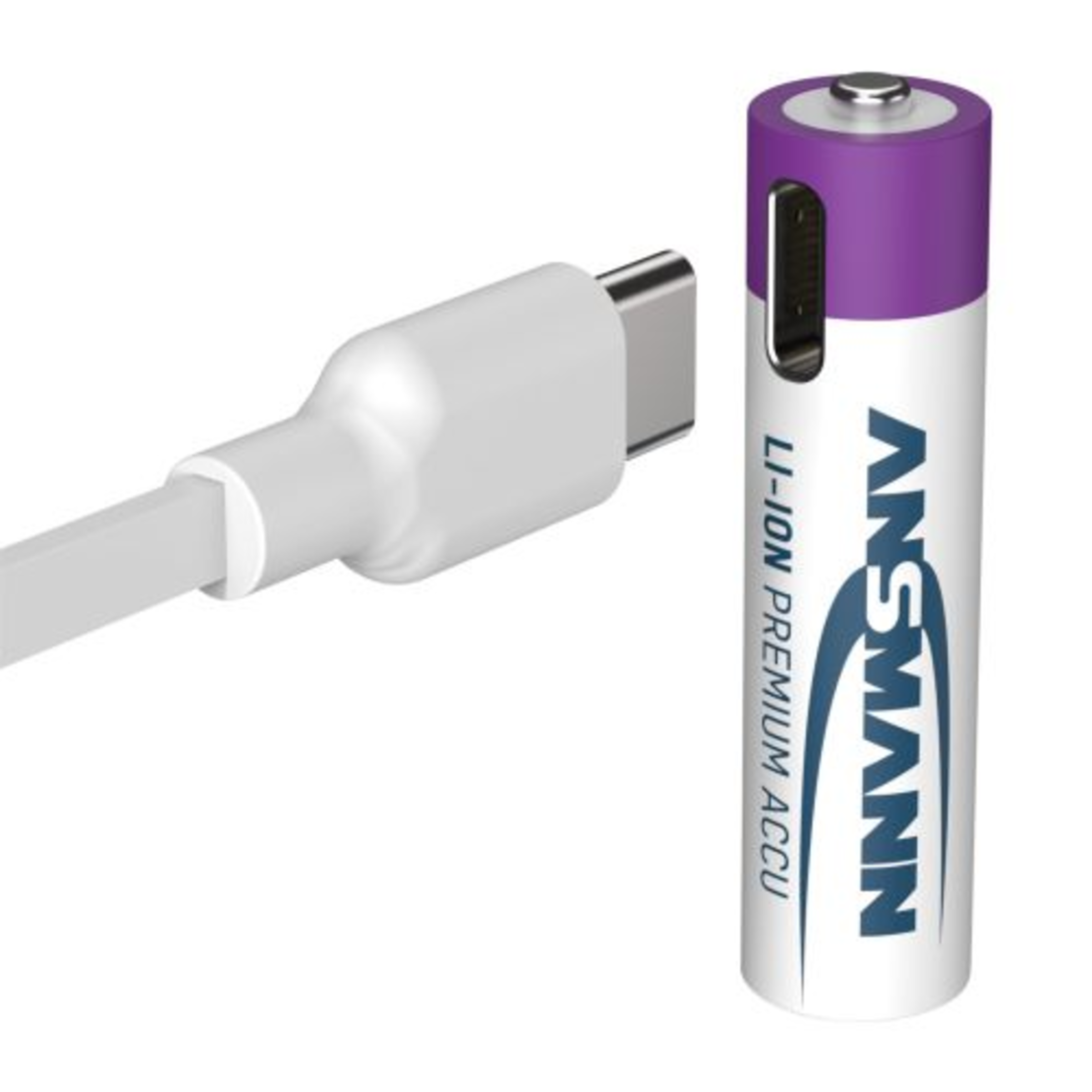

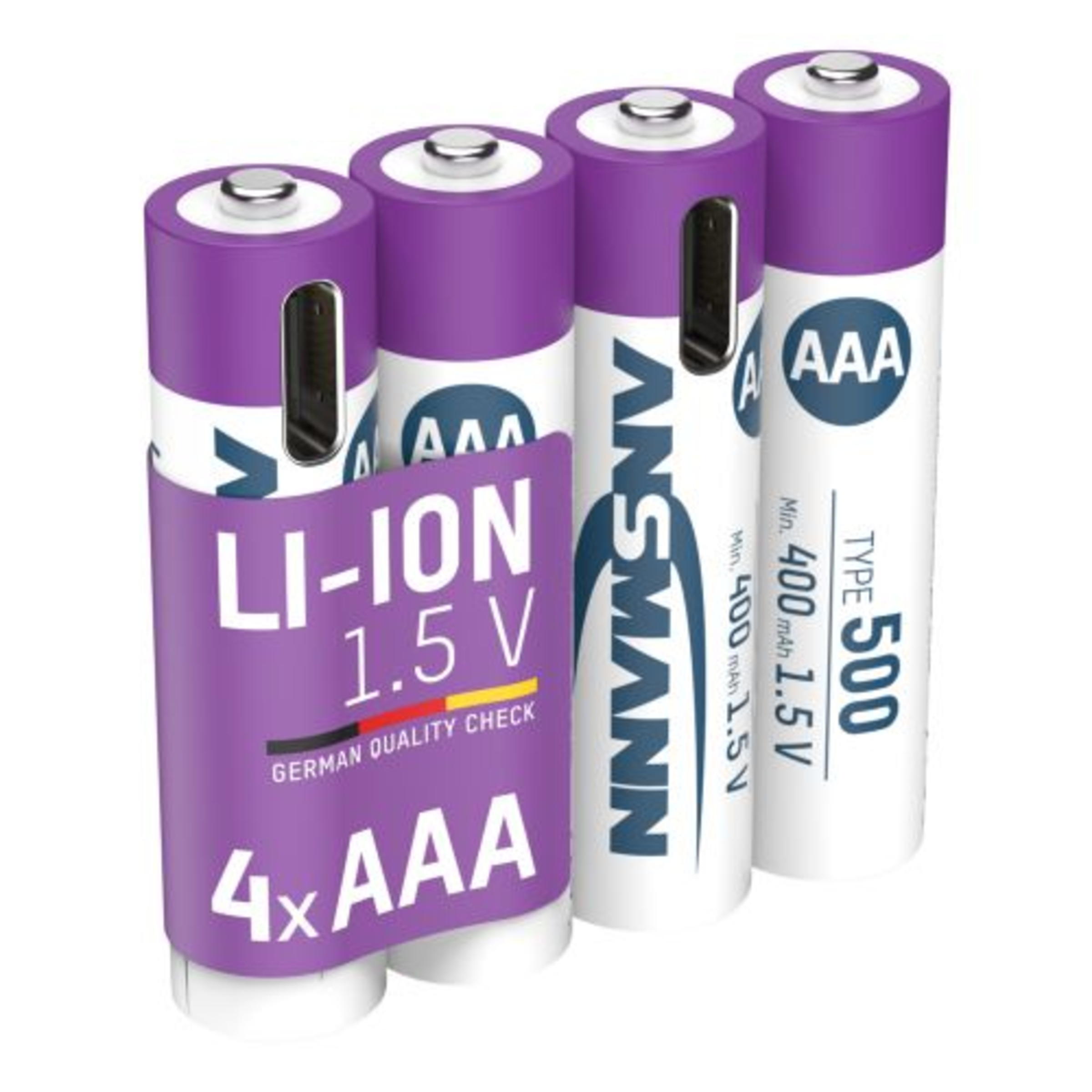

Ansmann Lithium ion (Li-Ion) Round Cell Accu Li-Ion 13XX 1,5V 500mAh HR03 AAA, Micro Blister pack of 4
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
104 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 4 or multiple of 4)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
- Rated Voltage
- 1.5 V
- Nominal capacity
- 500 mAh
- Chemical system
- Lithium ion (Li-Ion)
- IEC Code
- HR03
- Other designation
- AAA, Micro
- Delivery unit
- Blister pack of 4
Specifications
Open all
Operating conditions
- Prefered charge state, min.
- 5 %
- Prefered charge state, max.
- 95 %
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 25 °C
Electrical features
- Nominal capacity
- 500 mAh
- Energy storage, capacity
- 0.74 Wh
- Rated Voltage
- 1.5 V
- Discharge current, max.
- 500 mA
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
Documents
1311-0028 UN_38_3_test summary_2025 (NRCC).pdf
MSDS Ansmann Li-Ion D 26022025.pdf
MSDS_Ansmann_Li-Ion_Batteries.pdf
