1307-0000

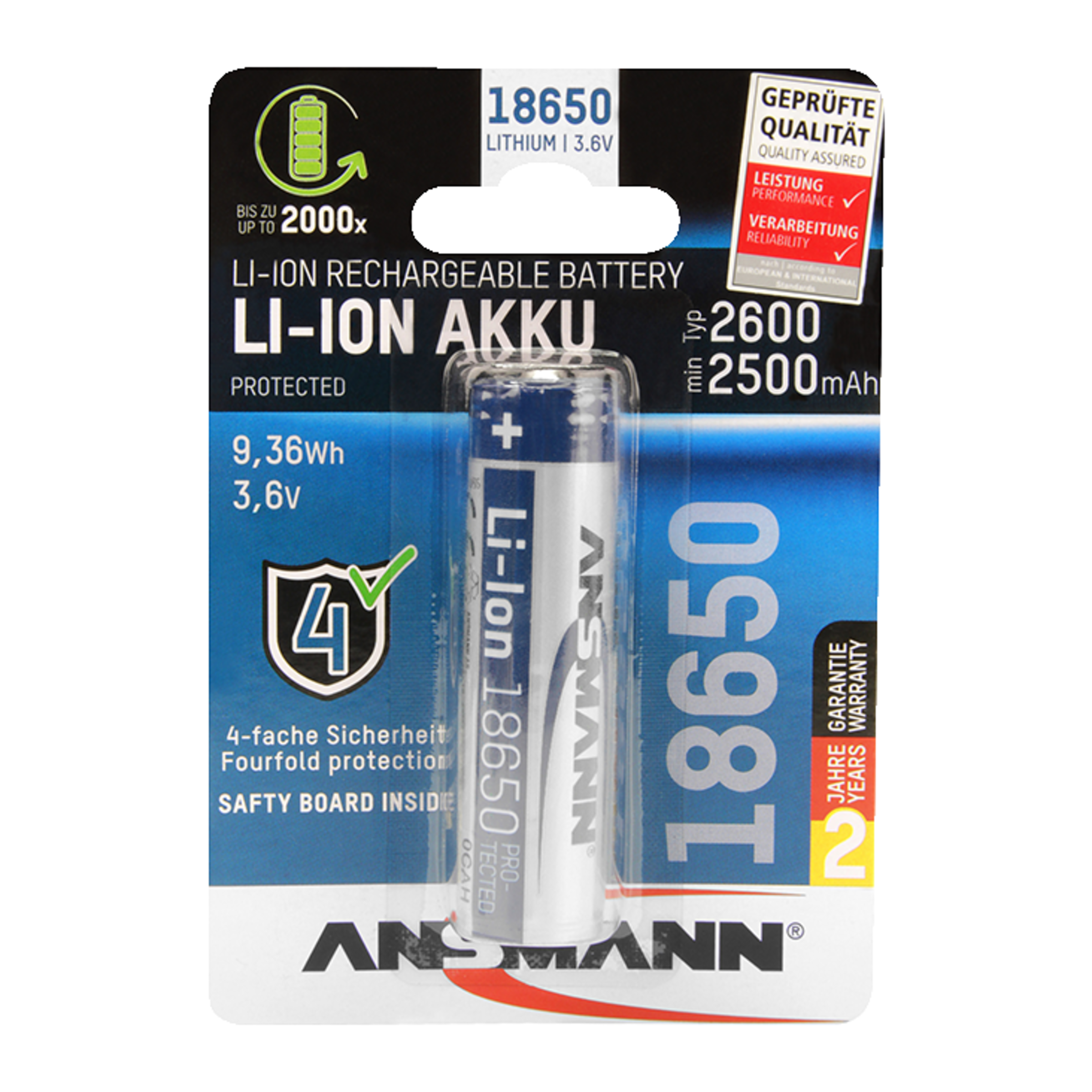

Ansmann Lithium ion (Li-Ion) Round Cell Accu Li-Ion 13XX 3,6V 2.600mAh
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
- Rated Voltage
- 3.6 V
- Nominal capacity
- 2,600 mAh
- Chemical system
- Lithium ion (Li-Ion)
Specifications
Open all
Operating conditions
- Operating temperature, charge, min.
- 0 °C
- Operating temperature, charge, max.
- 45 °C
- Operating temperature, discharge, min.
- 0 °C
- Operating temperature, discharge, max.
- 65 °C
- Shelf life, IEC
- 300 Zyklen
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 45 °C
Electrical features
- Nominal capacity
- 2,600 mAh
- Energy storage, capacity
- 9.36 Wh
- Rated Voltage
- 3.6 V
- Charge voltage, max.
- 4.2 V
- Discharge current, max.
- 5,200 mA
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3480 - Lithium-ion battery
Documents
MSDS Ansmann Li-Ion D 26022025.pdf
MSDS_Ansmann_Li-Ion_Batteries.pdf
UN38.3.5_Cert_from_2020_1307-0000.pdf
