1001-0145

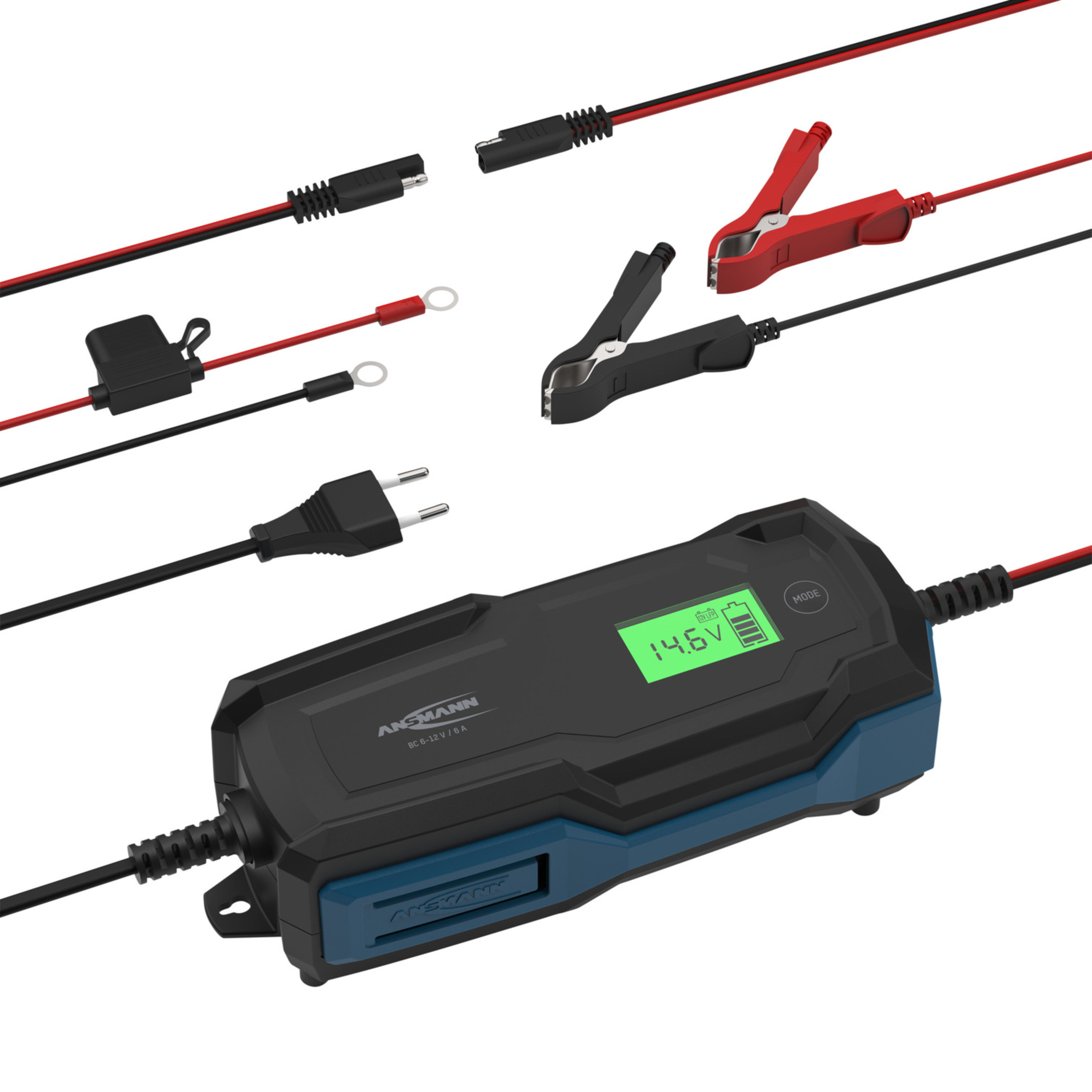

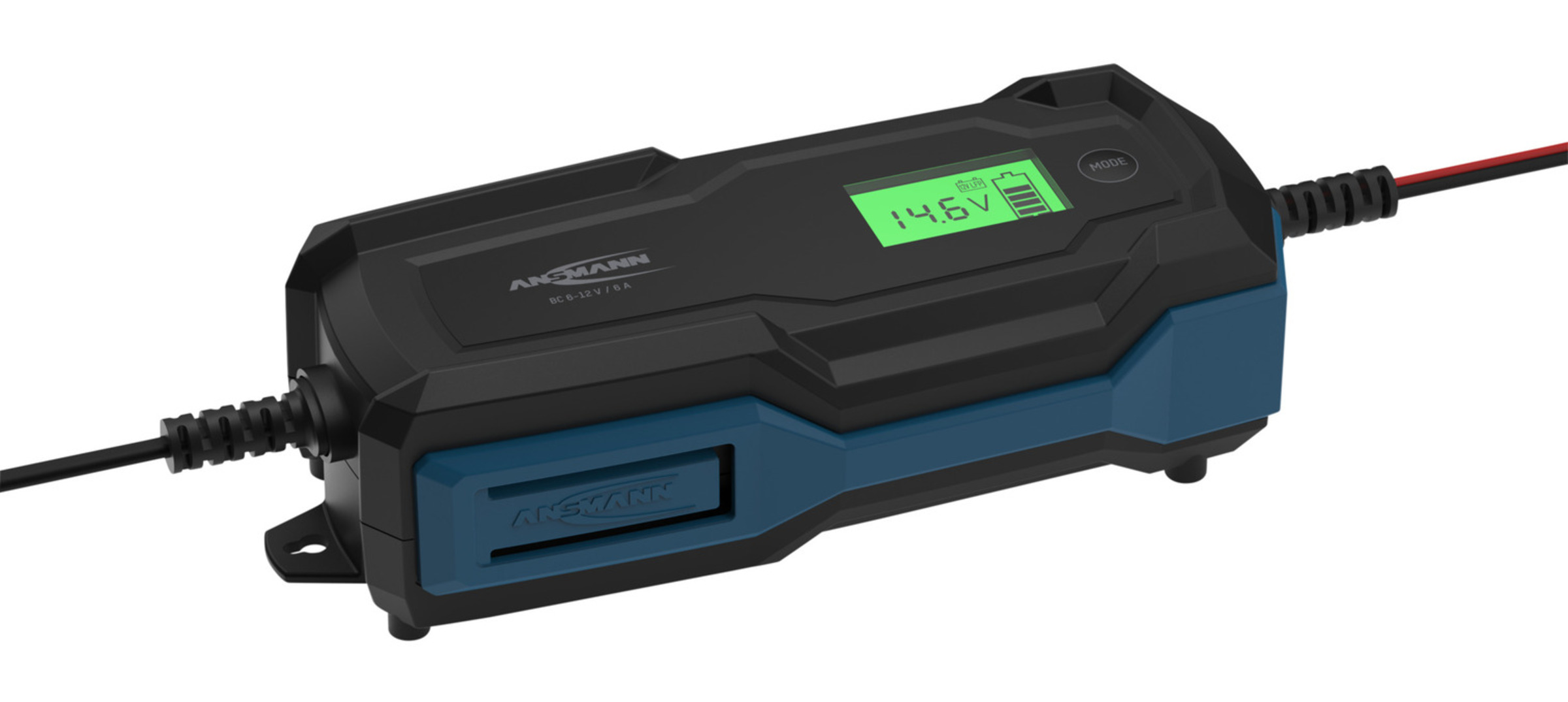

Ansmann Lead Battery Charger
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Lead
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 40 °C
- Chargeable battery systems
- Lead
- Number of chargeable cells
- 10-Stufen Kfz-Ladegerät für 6V und 12V BleiSäure-, Blei-Gel- und Blei-Vlies-Batterien, sowie 12V LiFePO4 Batterien
- Battery capacity, min.
- 4 Ah
- Battery capacity, max.
- 150 Ah
Input
- Mains frequency max.
- 50 Hz
- Input voltage min. AC
- 220 V
- Input voltage max. AC
- 240 V
- Power factor correction (PFC)
Output
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Temperature compensation
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP65
Documents
1001-0145_Bleiladegeraet-6A_Manual.pdf
1001-0145_Bleiladegeraet-6A_Manual.pdf
