1001-0122

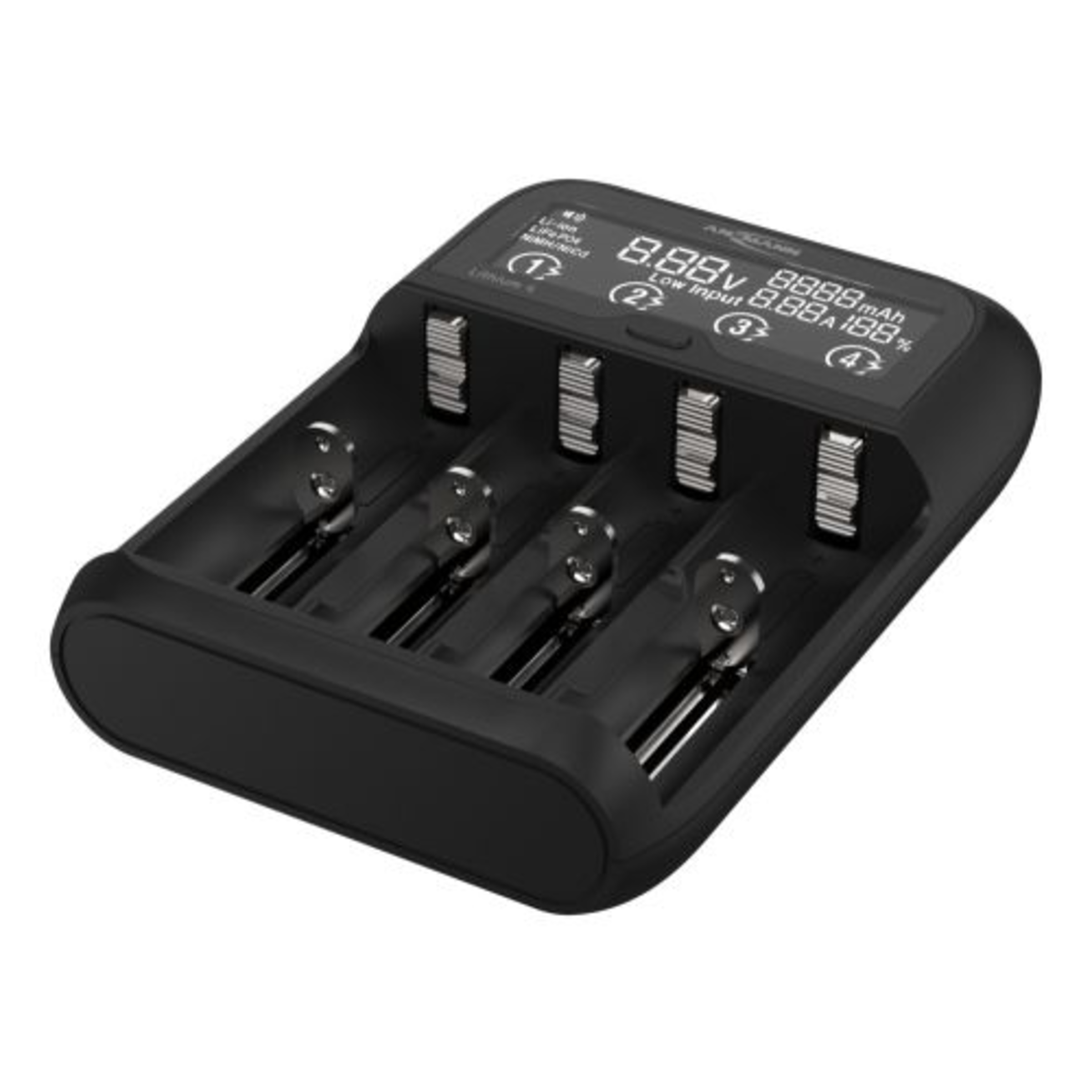

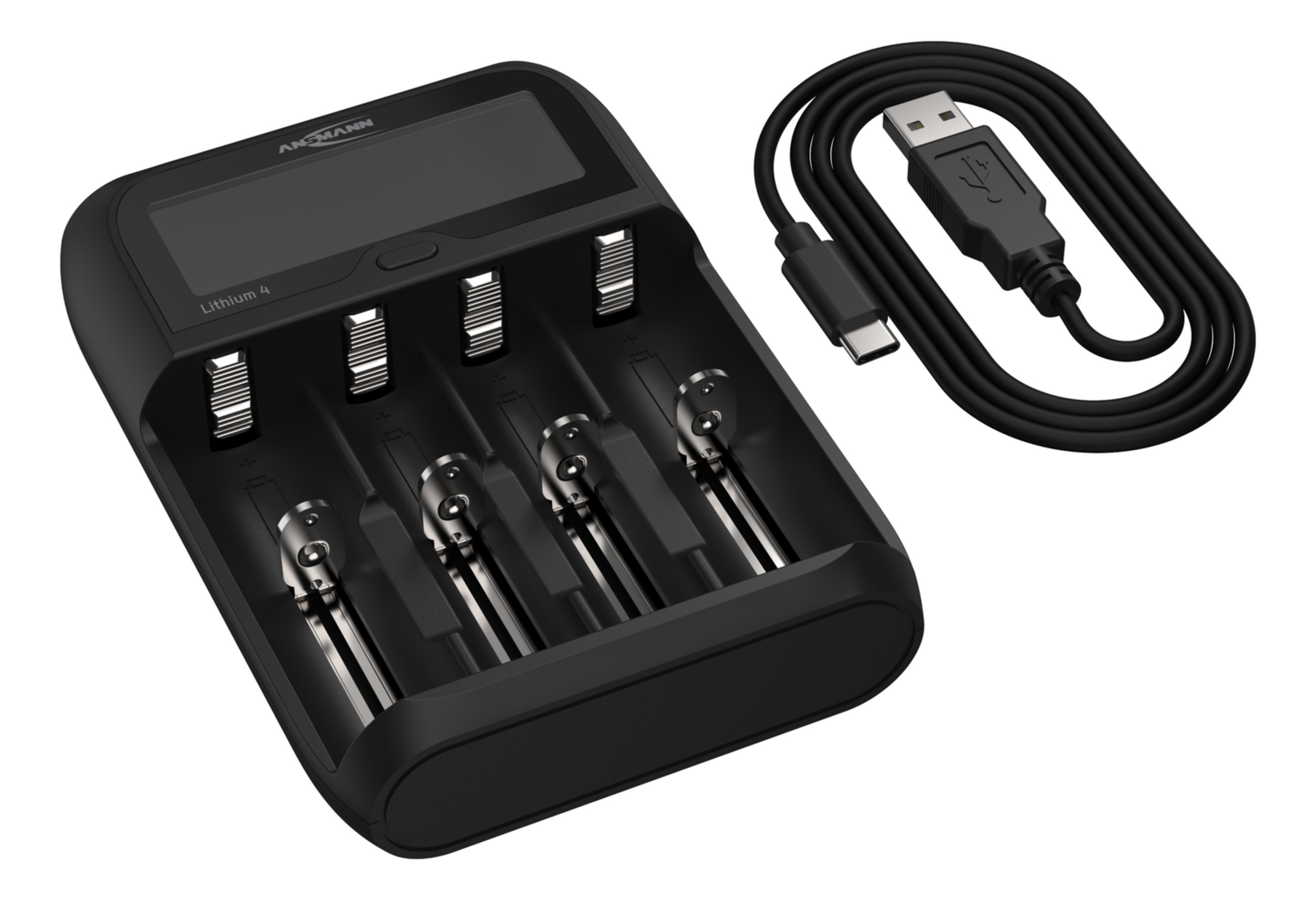

Ansmann Li-Ion NiMH Battery Charger
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
40 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 40 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Li-Ion
NiMH
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 25 °C
- Storage Temperature Min.
- -20 °C
- Storage Temperature Max.
- 60 °C
- Usable battery types
- AA
- AAA
- C
- Chargeable battery systems
- Li-Ion
- NiMH
- Number of chargeable cells
- - For 1 to 4 NiMH rechargeable batteries 1.48V AA and Micro AAA - For 1 to 4 Li-ion rechargeable batteries (3.6V/3.7V) - For round cells 26650, 22650, 18650, 18500, 17670, 16340, 14500, etc.
Input
- Input voltage max. DC
- 5 V
- Input current
- 2.4 A
- Power factor correction (PFC)
Output
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Connection type, output
- USB-C
- Temperature compensation
Safety/Certifications
- Protection Class IP
- IP20
- Approvals
- CE
Documents

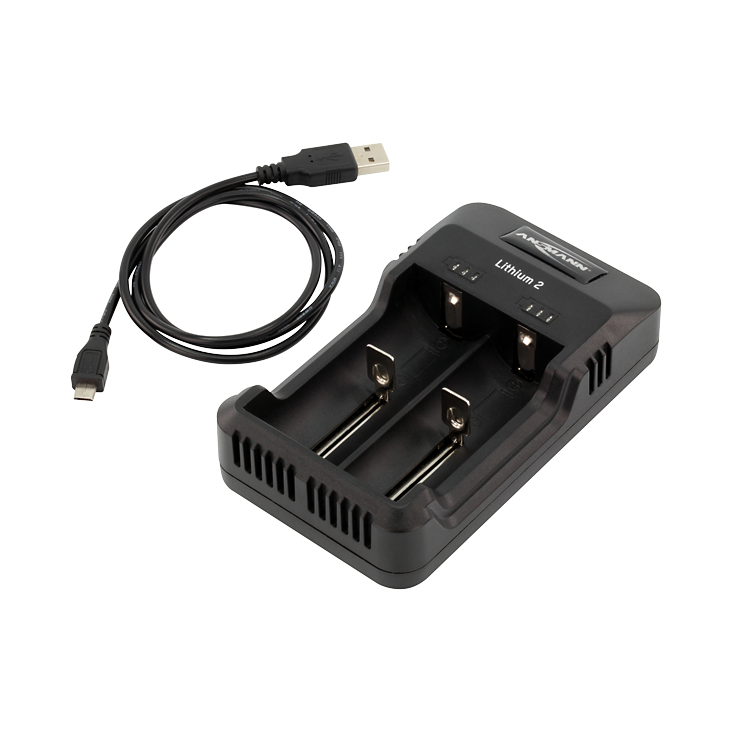

1001-0050_Lithium-2_Manual.pdf
1001-0122_Lithium-4-MA_V02-[PRINT].pdf
