1001-0119-01

Ansmann NiMH Battery Charger 0,24 W 1,2 V 0,2 A

BASIC-IIBASIC-IIBASIC-IIBASIC-IIBASIC-II
NEW
Manufacturer Part No.
1001-0119-01
Schukat Part No.
BASIC-II
Manufacturer
Ansmann
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
You can find suitable surge protection devices here.
Here you will find suitable rechargeable batteries.
Here you will find suitable EMC and interference suppression components.
Chargeable battery systems
NiMH
Output Power
0.24 W
Output voltage
1.2 V
Output current
0.200 A
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Ansmann
Series
  • Basic II
Product group
  • S7233
Dimension: Length
  • 75 mm
Dimension: Width
  • 36.5 mm
Dimension: Height
  • 26 mm
Weight
  • 88 g
Product description

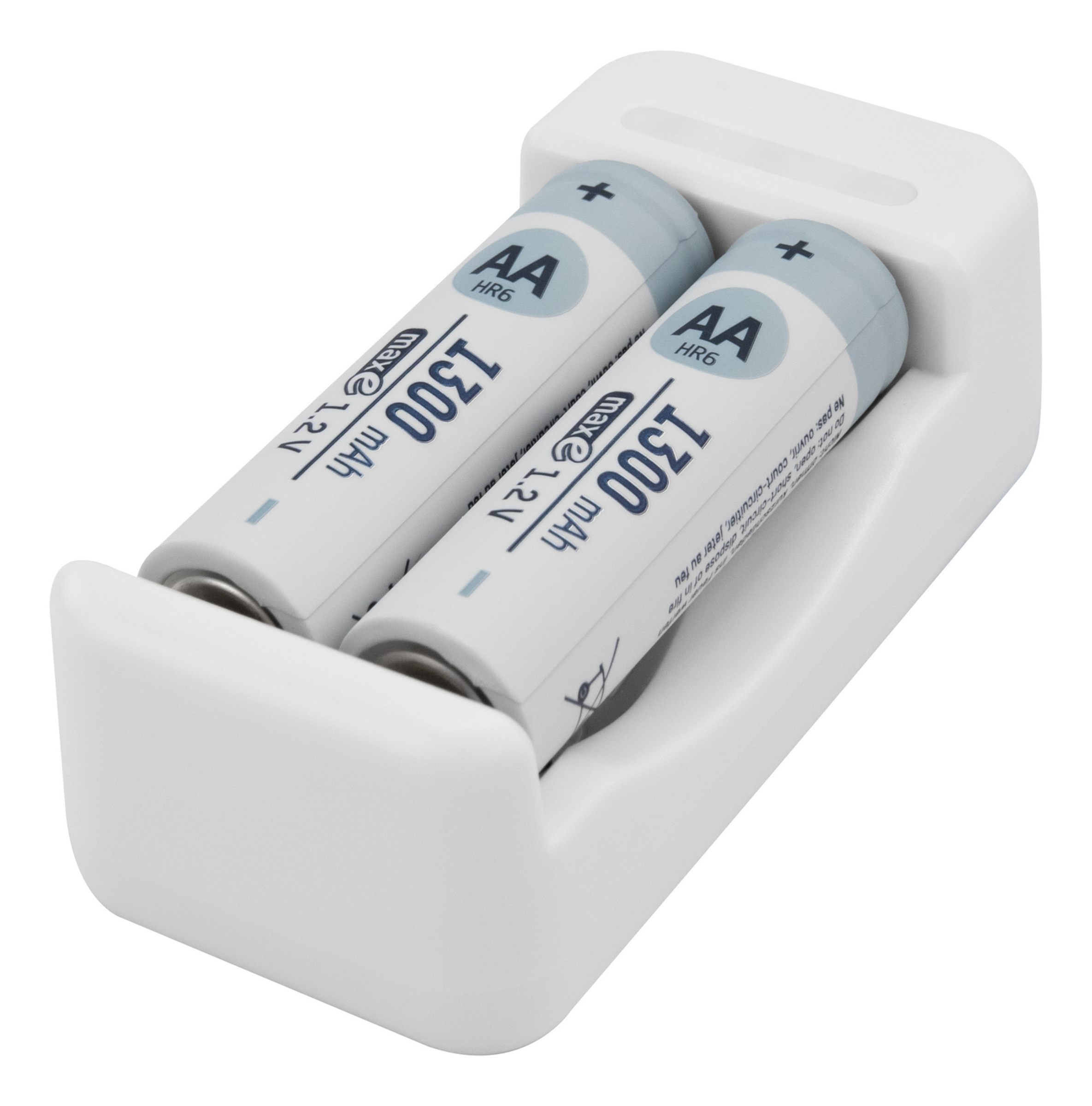

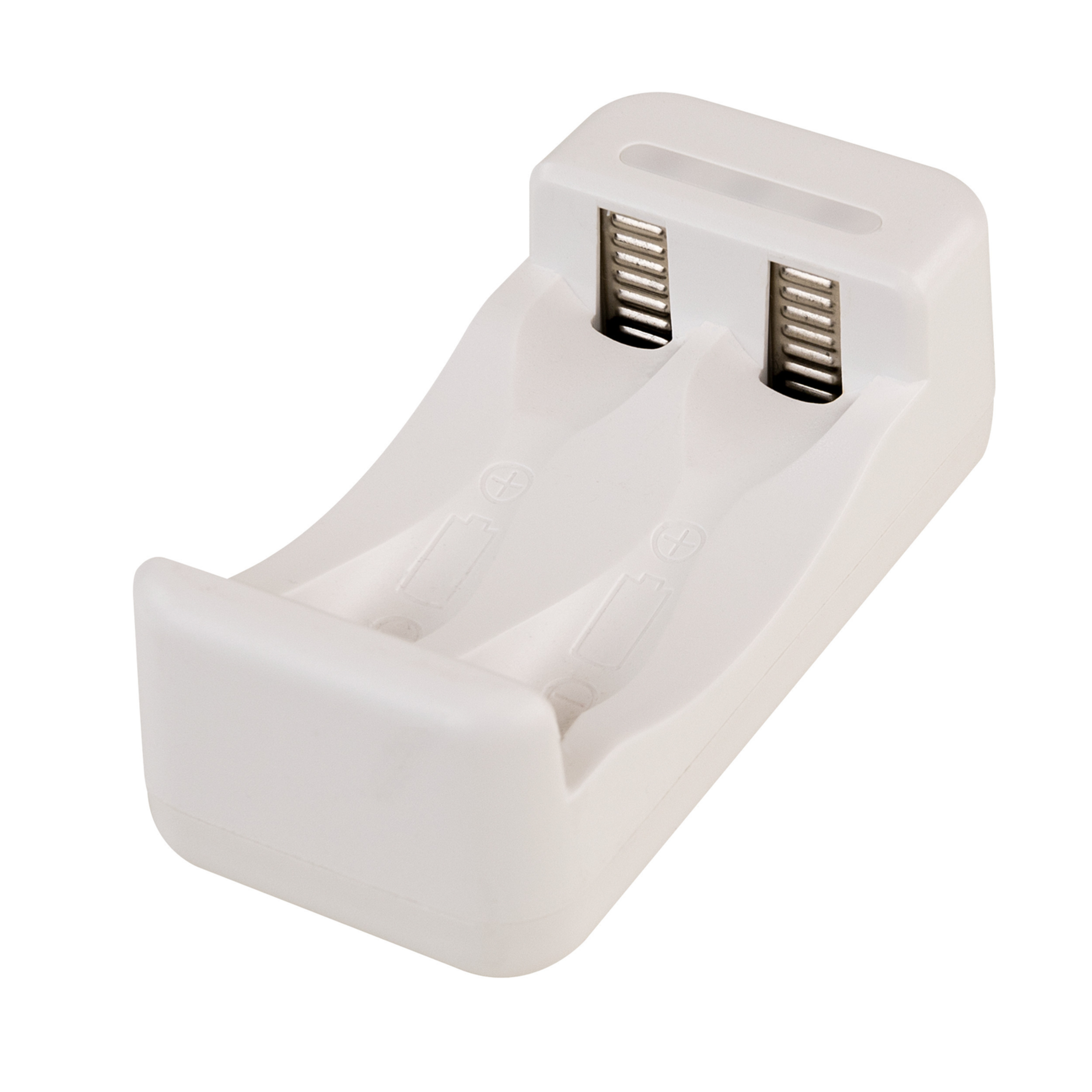

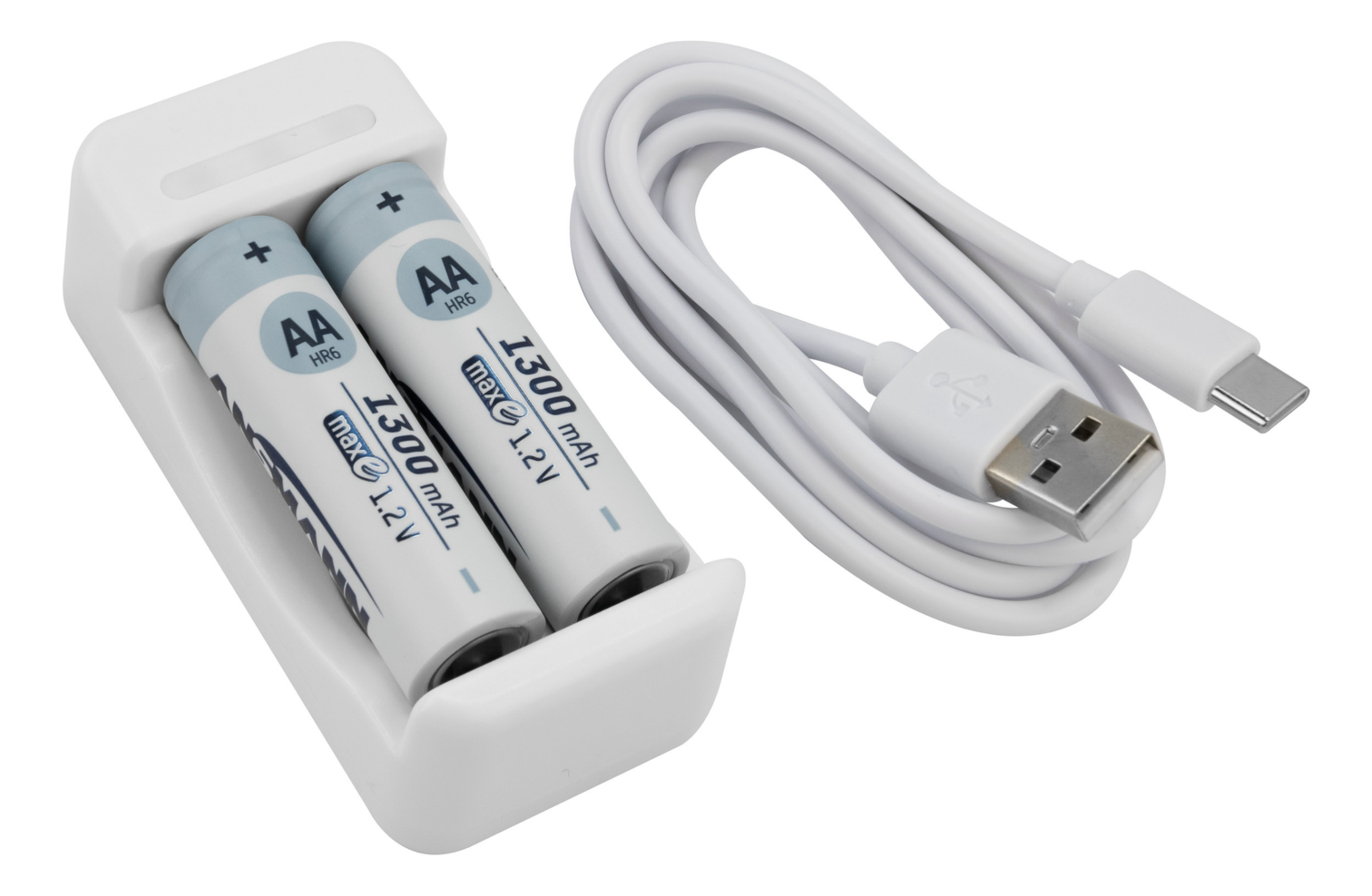

  • Description The charger Basic II is a reliable timer-charger with an excellent price-performance ratio. 2 rechargeable batteries (AA/1300mAh) and a USB charge cable with USB-C connection are included. The charger is equipped with an LED charge display, mechanical reverse polarity protection and automatic charge current adaptation. 1-2 AA / AAA NiMH rechargeable batteries can be charged. This makes this charger an inexpensive entry-point into the ANSMANN range of chargers and rechargeable batteries. Functions Individual supervision of cells, Microprocessor control, Overcharging protection, Safety timer Product content Charger Basic II, 2× AA NiMH rechargeable batteries, USB cable, operating instructions
Application note
  • Suitable for 1-2 NiMH rechargeable batteries, size AAA or AA
Notice

Operating conditions

Usable battery types
  • AA
  • AAA
Chargeable battery systems
  • NiMH
Number of chargeable cells
  • Charger with USB input for 1-2 NiMH rechargeable batteries, size AAA or AA

Input

Input voltage max. DC
  • 5 V
Input current
  • 2.4 A
Power factor correction (PFC)
Connection type, input
  • USB

Output

Output Power
  • 0.24 W
Output voltage
  • 1.2 V
Output current
  • 0.200 A
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Temperature compensation

Safety/Certifications

Protection class
  • III
Approvals
  • CE

Documents

1001-0119-01-Charger-Basic-II-Manual.pdf
Download (pdf, 307 KB)
MSDS_Ansmann_NiMH_Batteries.pdf
Download (pdf, 221 KB)
