1001-0023

Ansmann NiMH MH/NiCd Battery Charger 9,6 W 12 V 0,8 A

ACS110ACS110ACS110ACS110ACS110ACS110
Manufacturer Part No.
1001-0023
Schukat Part No.
ACS110
Manufacturer
Ansmann
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

11 Pcs. in stock

Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
You can find suitable surge protection devices here.
Here you will find suitable rechargeable batteries.
Here you will find suitable EMC and interference suppression components.
Chargeable battery systems
MH/NiCd
NiMH
Output Power
9.6 W
Output voltage
12 V
Output current
0.800 A
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Ansmann
Series
  • ACS
Product group
  • S7411
Application
  • ITE
  • Industry
Package/Case
  • Wall Mount Power Supply
Dimension: Length
  • 118 mm
Dimension: Width
  • 62 mm
Dimension: Height
  • 88 mm
Weight
  • 276 g
Manufacturer's warranty (years)
  • 3
Product description

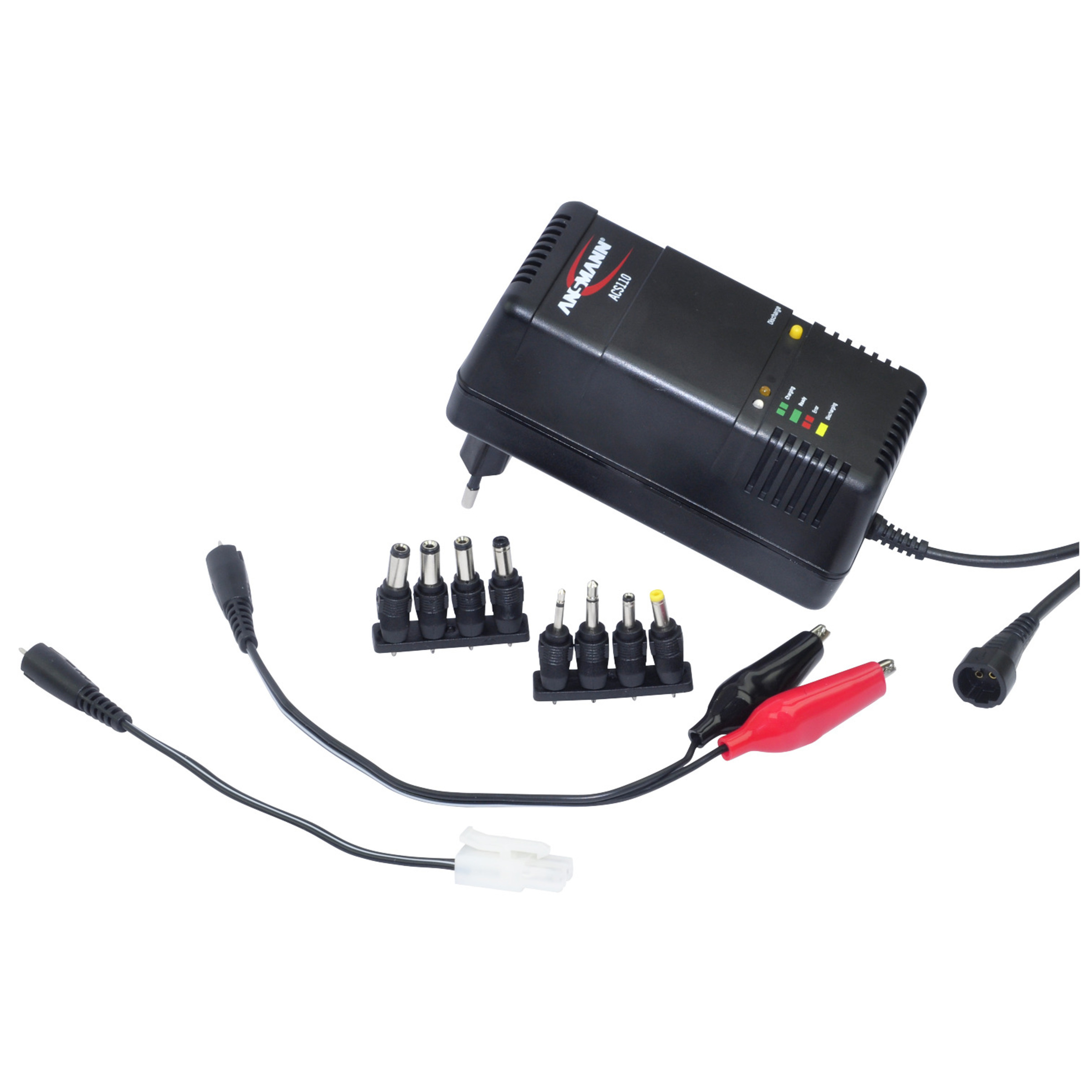

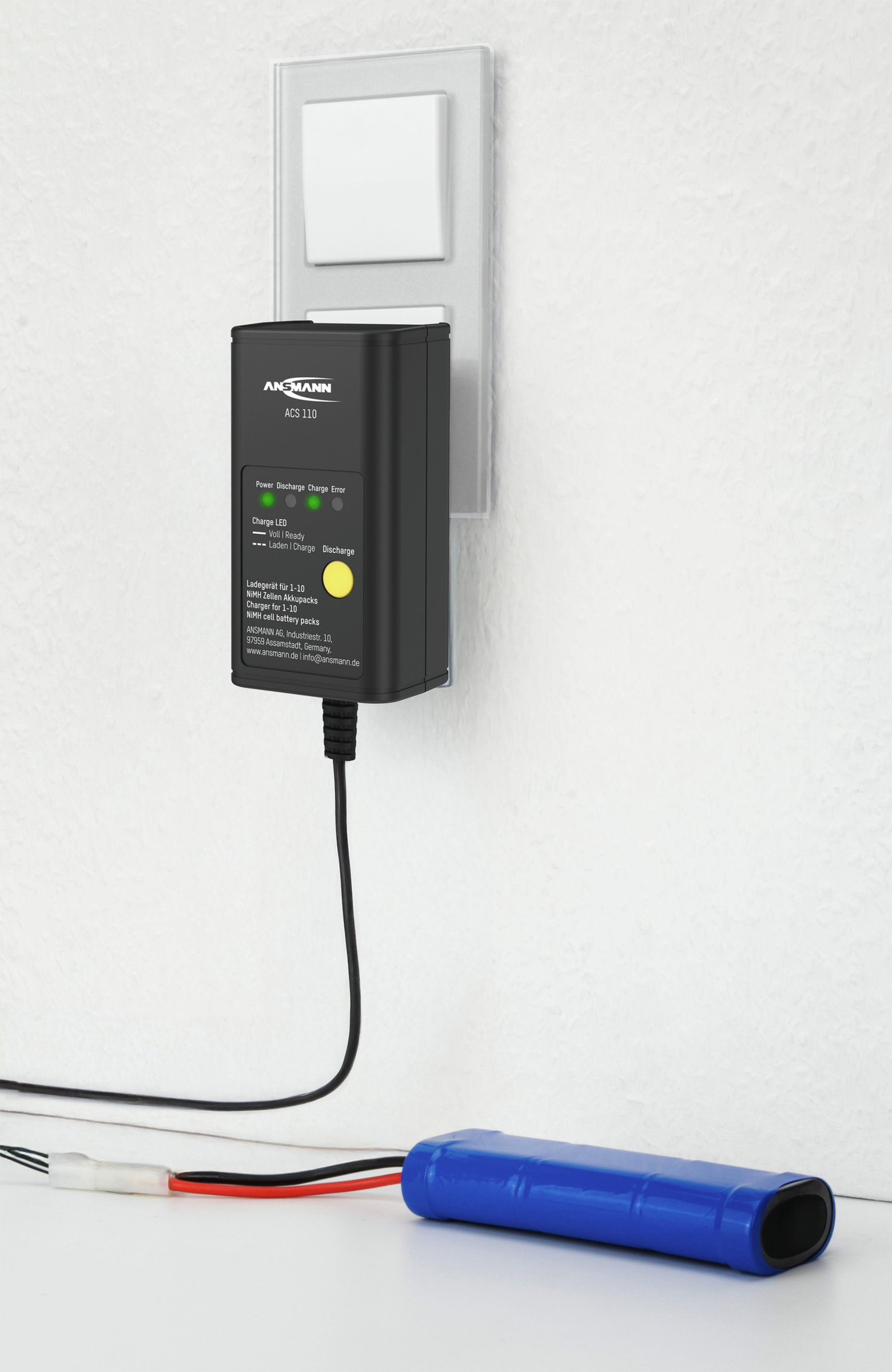

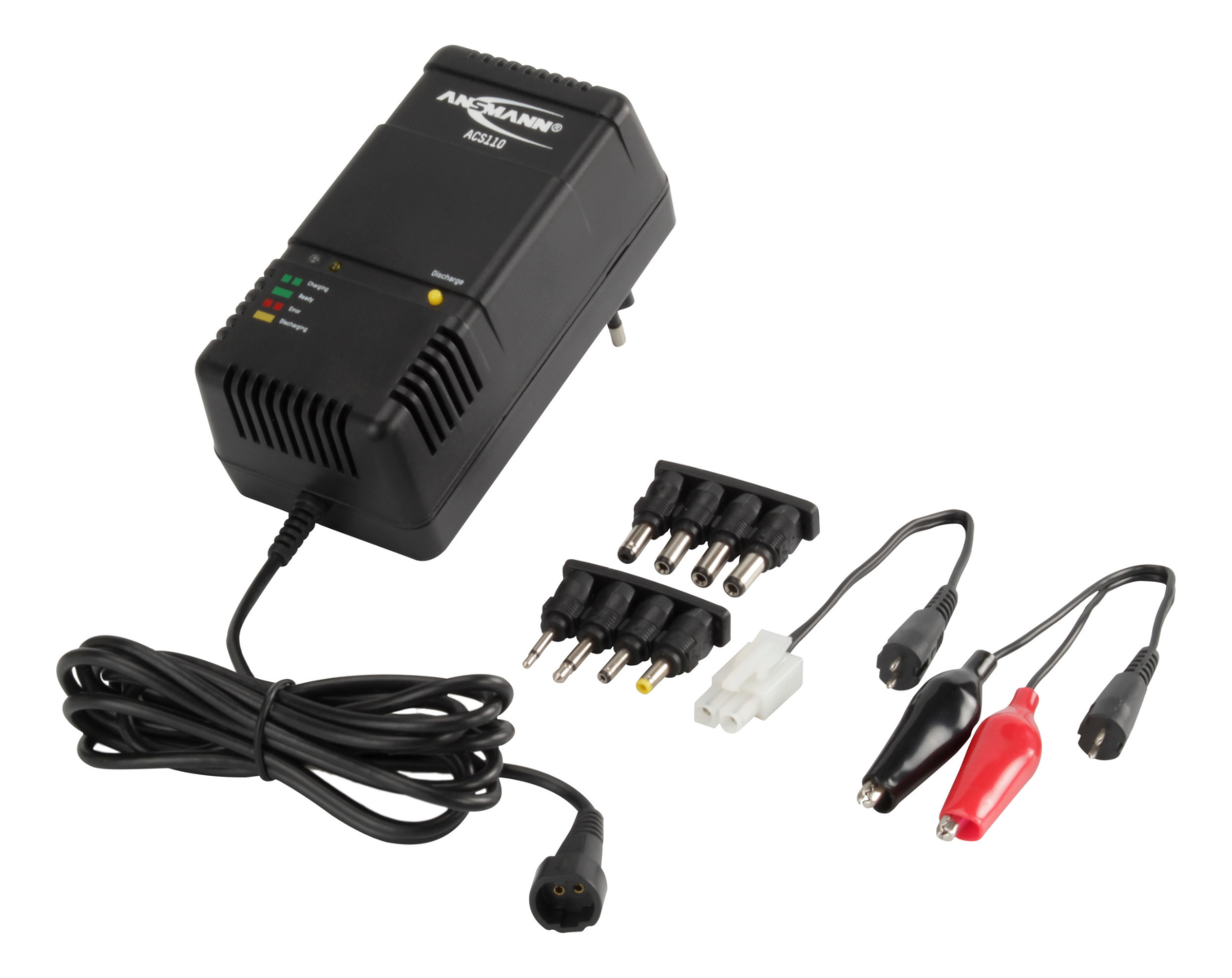

  • The ANSMANN charger ACS110 is designed for 1-10 cell NiMH/NiCd battery packs with a voltage of 1.2V-12.0V. The device detects automatically the amount of the cells and adjusts the charging voltage automatically. A pre-discharge of the battery pack is optional, then it switches automatically to charging (charging current: 800mA / discharge current: 150mA - 200mA). Once the battery pack is fully charged, the charging current indicator lights green permanently. The charging process is cut-off automatically (-deltaV) and switches to trickle charging. With clear LED indication you can see if the battery pack is charging (LED flashes green) or discharging (LED lights yellow) or if there is an error (LED flashes red). Included are one adapter cable with Tamiya socket, one adapter cable with crocodile clips and 8 standard output plugs for connecting in either polarity. The charger includes short-circuit and wrong polarity protection and is made for worldwide use (100-240V AC / 50-60Hz).
Features
  • Adjustable output voltage
Application note
  • Suitable for 1-10 cells 1.2V-12.0V NiMH / NiCd battery packs
Notice

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 40 °C
Storage Temperature Min.
  • -25 °C
Storage Temperature Max.
  • 70 °C
Usable battery types
  • Battery pack
Chargeable battery systems
  • MH/NiCd
  • NiMH
Number of chargeable cells
  • 1-10 Zellen
Battery capacity, min.
  • 0.8 Ah
Battery capacity, max.
  • 10 Ah

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Output Power
  • 9.6 W
Output voltage
  • 12 V
Output current
  • 0.800 A
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Connection type, output
  • Plug Adapter
Temperature compensation

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Isolation voltage I/P-O/P
  • 4,000 V
Approvals
  • CE
Standards (EMC)
  • EN 55032
Standards (safety)
  • EN 60601-1
  • EN 60950-1
  • EN 62368-1
  • IEC 60601-1
  • IEC 60950-1

Documents

1001-0023_ACS110_DS_DE.pdf
Download (pdf, 716 KB)
1001-0023_ACS-110_Manual.pdf
Download (pdf, 1.666 KB)
