1001-0016

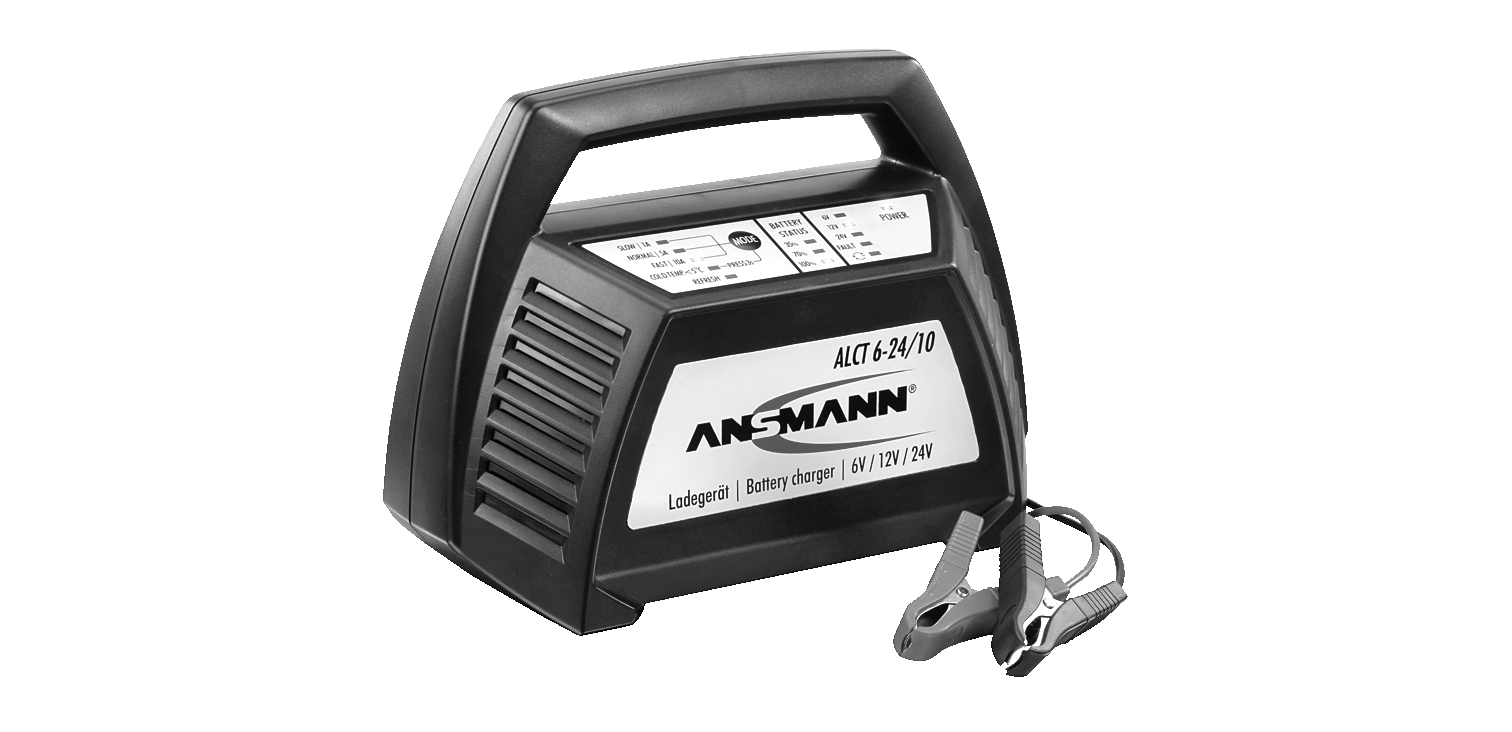

Ansmann Lead Battery Charger 24 W 12 V 2 A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 05.12.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Chargeable battery systems
- Lead
- Output Power
- 24 W
- Output voltage
- 12 V
- Output current
- 2.000 A
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 25 °C
- Storage Temperature Min.
- -25 °C
- Storage Temperature Max.
- 70 °C
- Chargeable battery systems
- Lead
- Battery capacity, min.
- 1.2 Ah
- Battery capacity, max.
- 80 Ah
Input
- Mains frequency min.
- 50 Hz
- Input voltage max. AC
- 230 V
- Power factor correction (PFC)
- Connection type, input
- Euro Plug
Output
- Output Power
- 24 W
- Output voltage
- 12 V
- Output current
- 2.000 A
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Reverse polarity protection
- Temperature compensation
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP65
- Approvals
- CE
Documents
1001-0016_Manual_ALCT-6-24-2.pdf
