1001-0015

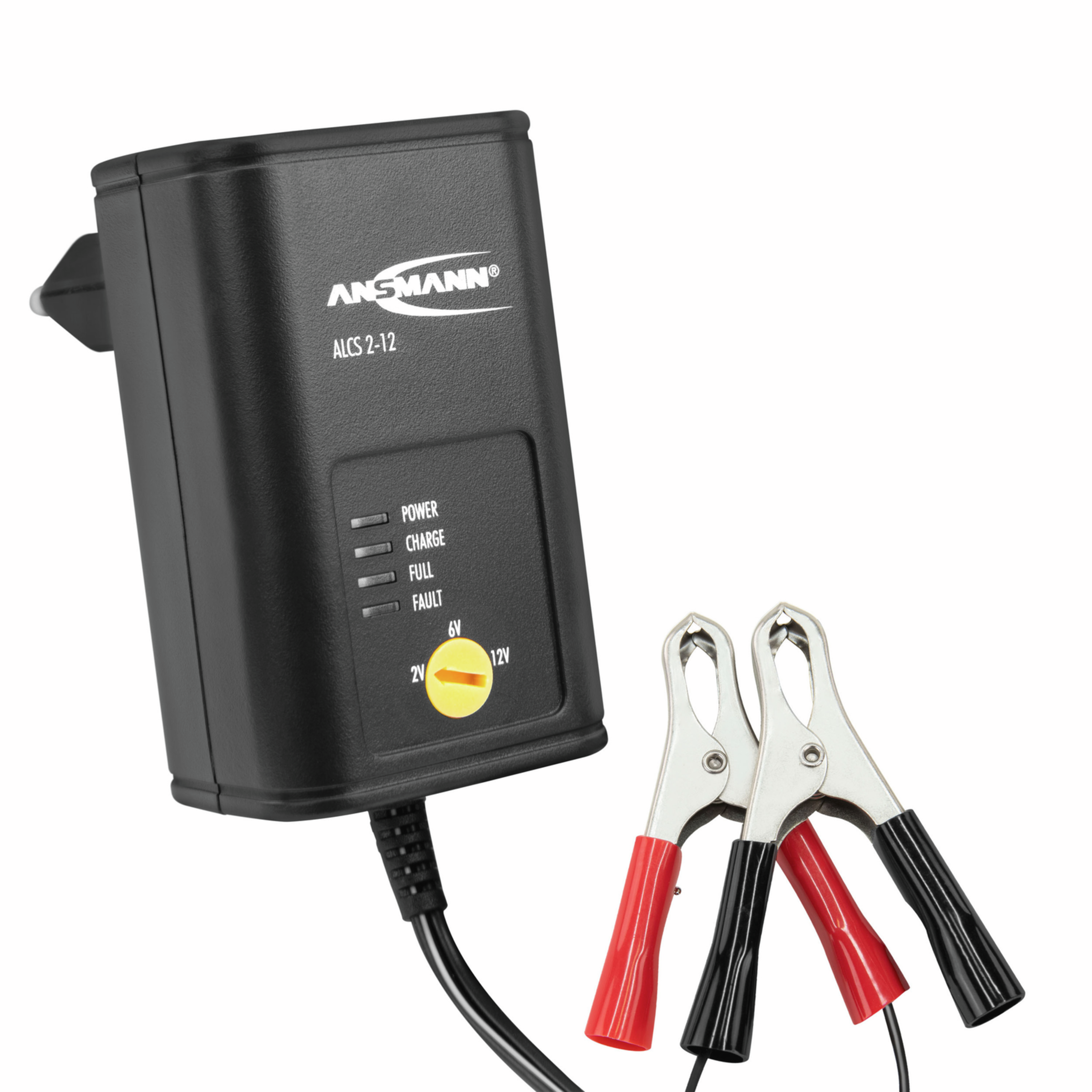

Ansmann Lead Battery Charger 4,8 W 12 V 0,4 A

ALCS2-12/0.4ALCS2-12/0.4ALCS2-12/0.4
NEW
Manufacturer Part No.
1001-0015
Schukat Part No.
ALCS2-12/0.4
Manufacturer
Ansmann
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
You can find suitable surge protection devices here.
Here you will find suitable rechargeable batteries.
Here you will find suitable EMC and interference suppression components.
Chargeable battery systems
Lead
Output Power
4.8 W
Output voltage
12 V
Output current
0.400 A

Specifications

Close all

General

Manufacturer
  • Ansmann
Series
  • ALCS 2
Product group
  • S7811
Application
  • Household
Dimension: Length
  • 49 mm
Dimension: Width
  • 69 mm
Dimension: Height
  • 70 mm
Weight
  • 145 g
Manufacturer's warranty (years)
  • 3
Product description
  • Description Car charger for maintenance-free lead-acid batteries (car batteries) with a 3.5-meter cable The compact and very lightweight ALCS 2-12/0.4 charger is ideal for lead-acid batteries in cars, boats, motorcycles, scooters, ride-on garden tools, or children’s vehicles. An extra-long 3.5-meter cable is particularly convenient and allows for charging without an extension cord. The ALCS 2-12 is, of course, easy to use and intuitive. Depending on the battery, the voltage can be adjusted using the rotary switch on the charger. The terminal clamps allow for quick connection to the lead-acid batteries, after which the charging process starts automatically. For 2 V, 6 V, or 12 V lead-acid batteries with a capacity of 1.2 Ah to 40 Ah It can charge lead-gel, lead-mat, and lead-acid batteries with voltages of 2 V, 6 V, and 12 V. Charging follows the IU characteristic curve with a charging current of 400 mA, which ensures that automotive starter batteries are charged very gently. An LED indicates both the charging process and when charging is complete for visual monitoring. Prevents Deep Discharge of the Battery and Ensures Gentle Winter Storage In addition to regular charging, the ALCS 2-12 is ideally suited for trickle charging. The battery can remain connected to the charger throughout the winter. This prevents deep discharge. Batteries from motorcycles, motorboats, lawn mowers, etc., will thus make it through the winter in good condition and be ready for use at any time when needed. The same applies, of course, to a top-off charge as soon as the battery starts to lose power or has not been used for an extended period.
Features
  • Adjustable output voltage
Application note
  • Suitable for 2V, 6V and 12V lead acid, SLA batteries
Notice

Operating conditions

Operating Temperature Min.
  • 0 °C
Operating Temperature Max.
  • 25 °C
Storage Temperature Min.
  • -25 °C
Storage Temperature Max.
  • 70 °C
Chargeable battery systems
  • Lead
Battery capacity, min.
  • 1.2 Ah
Battery capacity, max.
  • 40 Ah

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Power factor correction (PFC)
Connection type, input
  • Euro Plug

Output

Output Power
  • 4.8 W
Output voltage
  • 12 V
Output current
  • 0.400 A
Short-circuit protection
Overvoltage protection
Overtemperature protection
Reverse polarity protection
Cable length, output
  • 350 cm
Temperature compensation

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Standards (safety)
  • EN 60335-1

Documents

1001-0015_Manual_ALCS_2-12-0.4.pdf
Download (pdf, 1.994 KB)
9164016_ALCS-2-24A_Manual.pdf
Download (pdf, 1.578 KB)

Other Products

All Products of the Series
Loading...
9164016
Ansmann

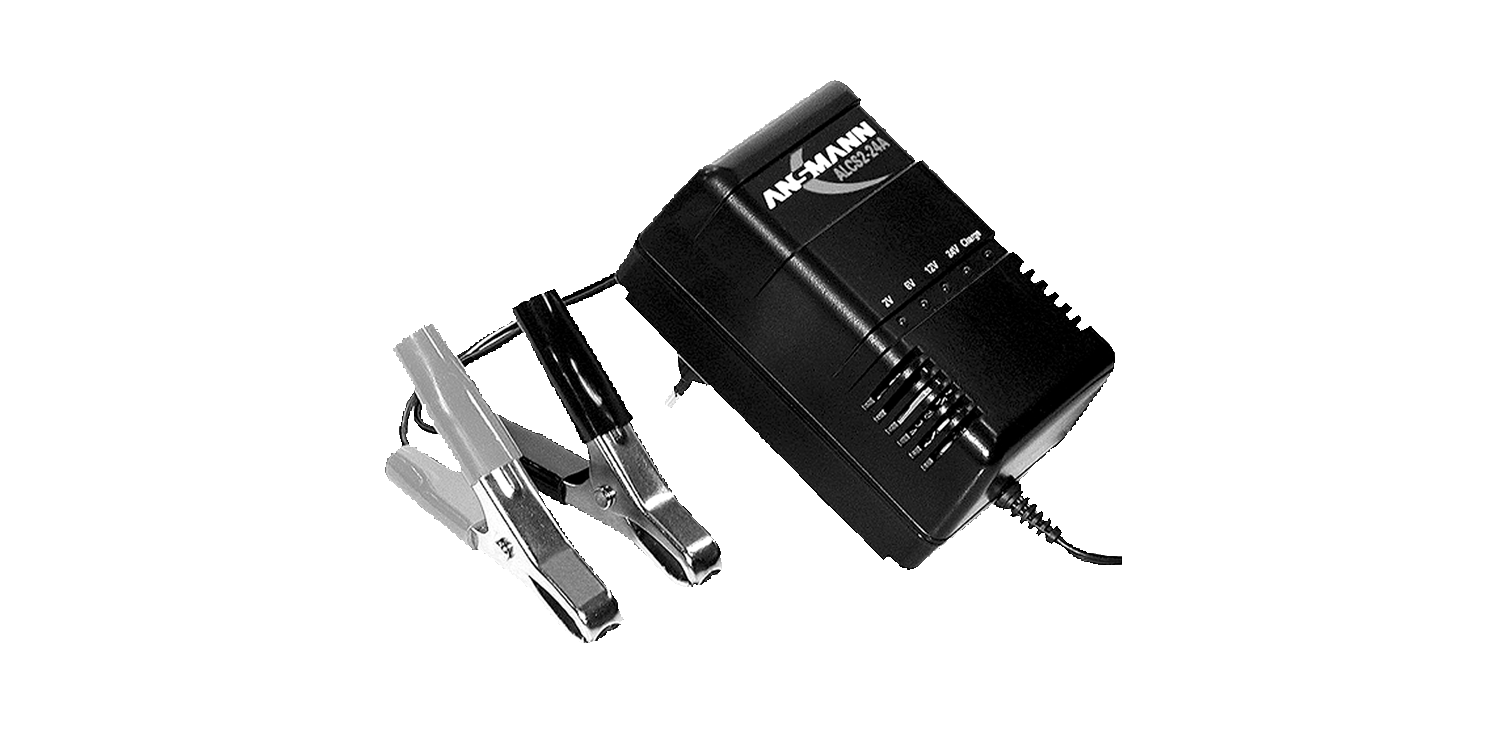

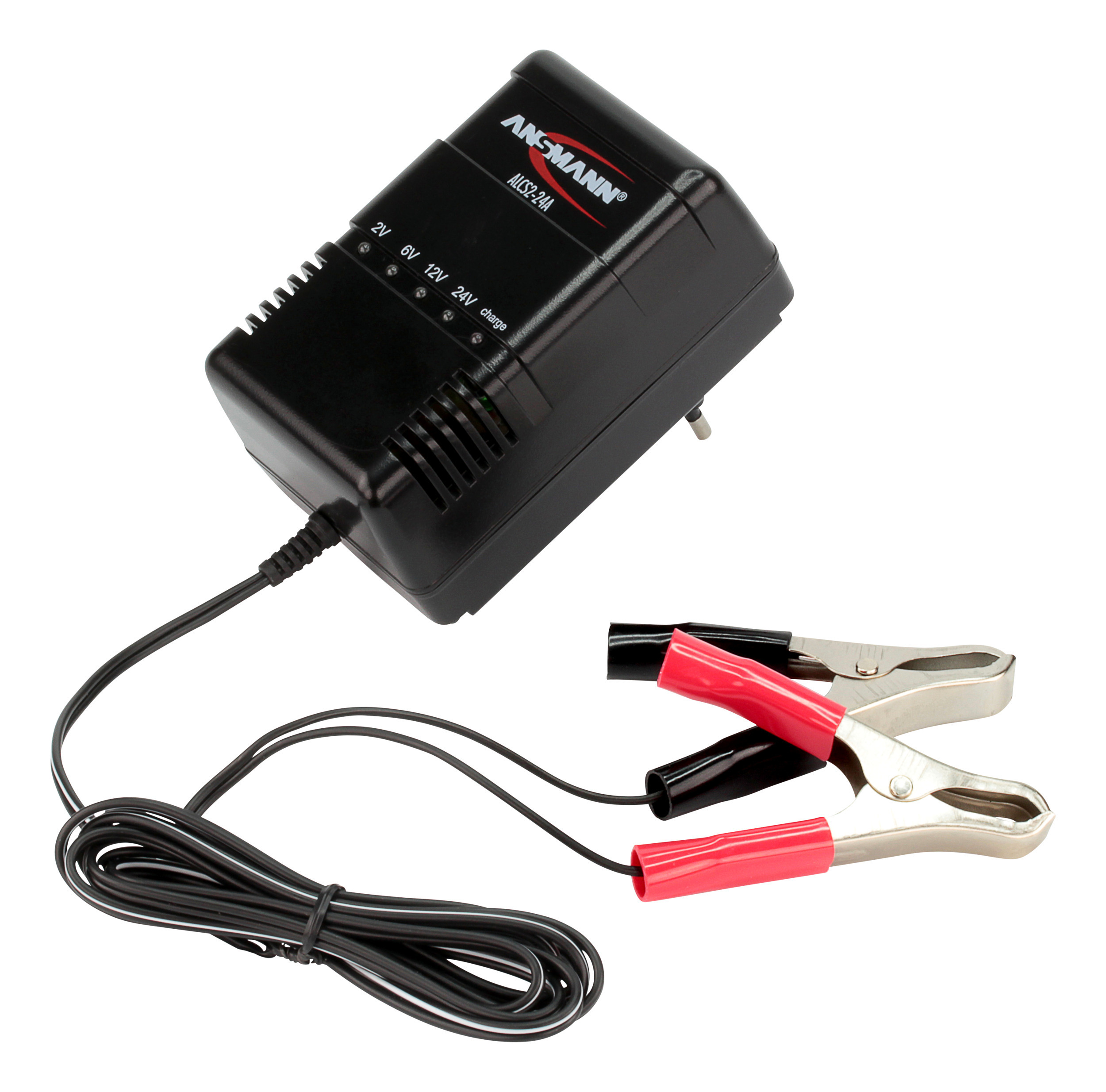

Lead Battery Charger 7,2 W 24 V 0,3 A
