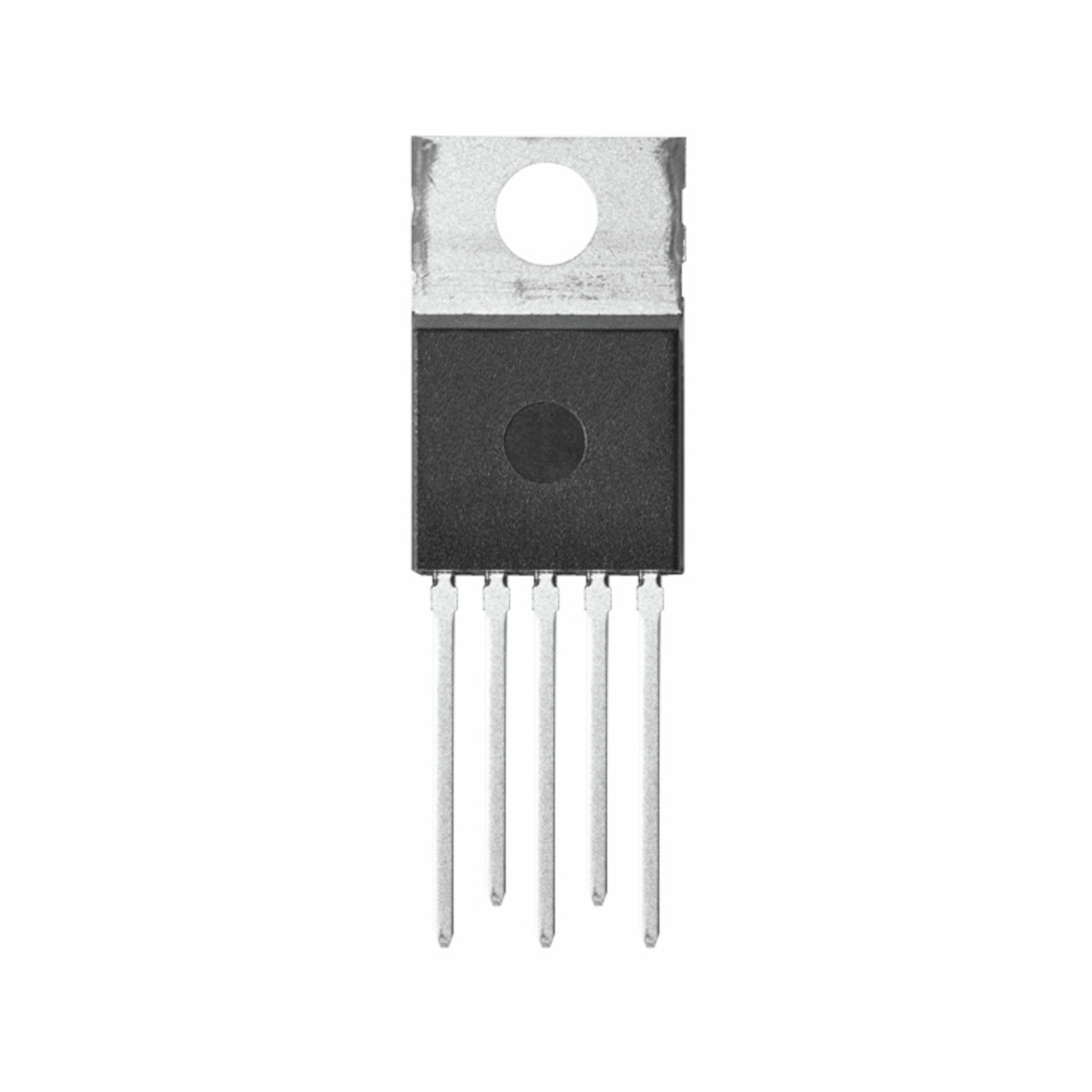

LT1010CTPBF
Analog Devices THT Operational Amplifier 75V/µs TO-220
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
37 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 04.07.2022
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Operational Amplifier
- Supply Voltage Min.
- 4.5 V
- Supply Voltage Max.
- 40 V
- Number of Channels
- 1
- Slew Rate
- 75 V/µs
- Manufacturer Package
- TO-220
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- 0 °C
- Operating Temperature, max. (TA)
- 100 °C
- Barrier Layer temperature, min. (TJ)
- 0 °C
- Barrier Layer Temperature, max. (TJ)
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- Number of Channels
- 1
- Supply Voltage Min.
- 4.5 V
- Supply Voltage Max.
- 40 V
- Dual Supply Voltage max.
- ±20V V
- Slew Rate
- 75 V/µs
- (GBWP) Gain Bandwidth Prod.
- 20 MHz
