RK09D1130C1B

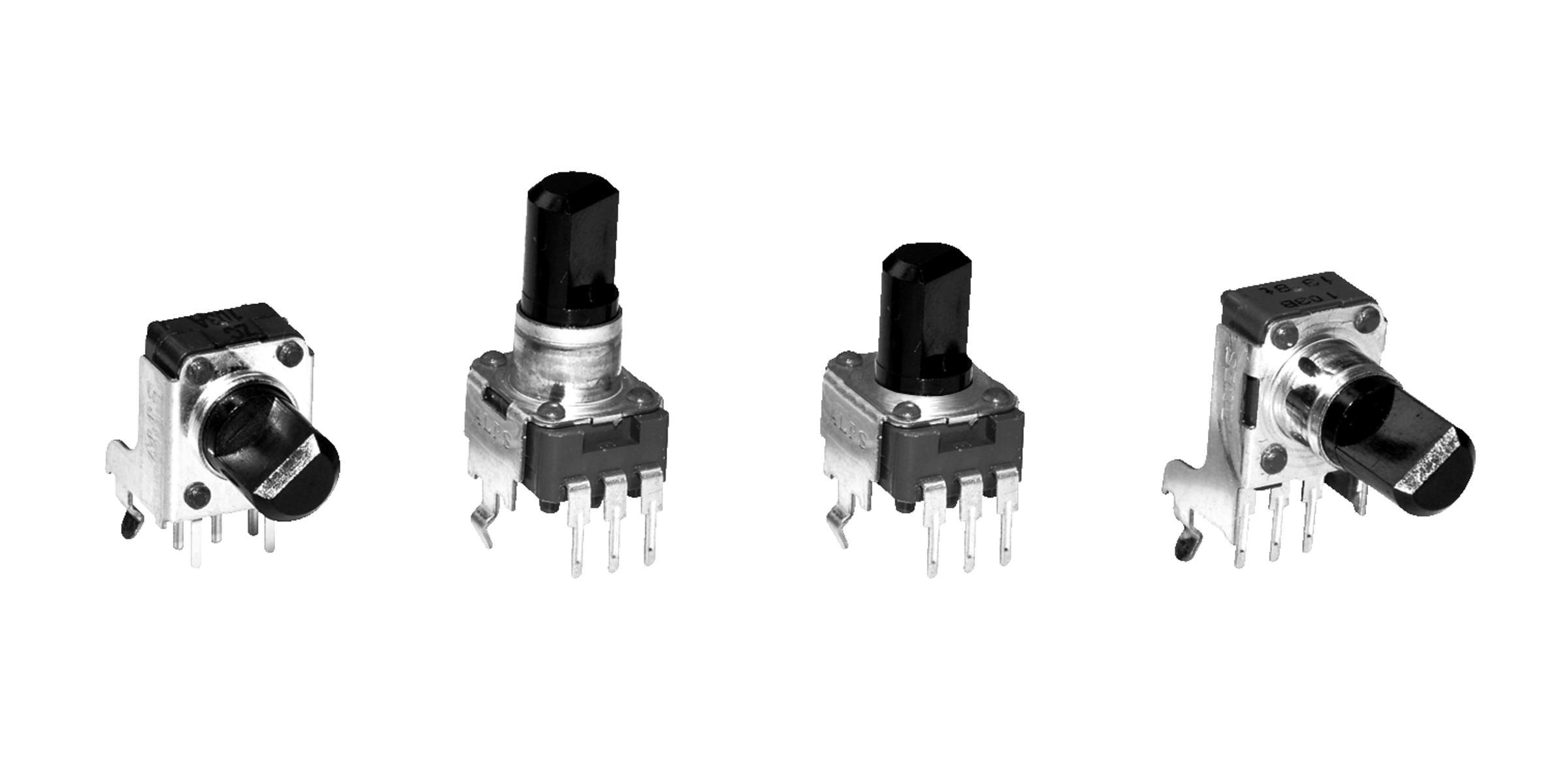

Alps Alpine Carbon film potentiometer RK09D linear 0,05W 10kOhm 20% Shaft-Ø6mm plastic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
640 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable dials, knurled discs and plug-in-axles. - Type
- Carbon film potentiometer
- Series
- RK09D
- Resistance curve
- linear
- Resistance
- 10 kOhm
- Resistance tolerance
- 20 %
- Diameter, shaft
- 6 mm
- Length, shaft
- 20 mm
- Shaft
- plastic
- RoHS-Conform
Specifications
Open all

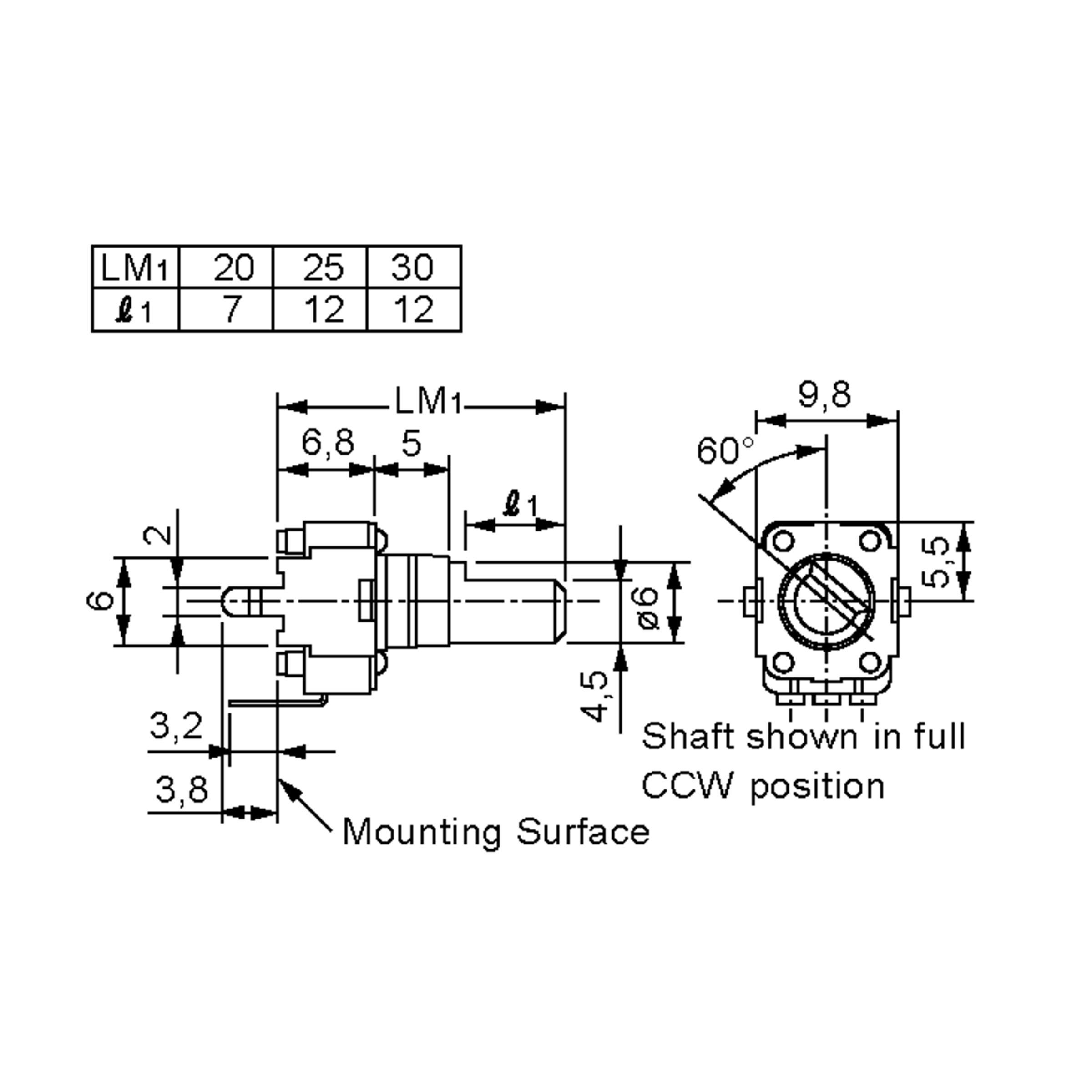

Dimensions and Weights
- Width Body
- 9.8 mm
- Height body
- 6.8 mm
- Length, shaft
- 20 mm
- Diameter, shaft
- 6 mm
- Shaft
- plastic
- Centre detent
- without
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Resistance value
- 10
- Resistance unit
- kOhm
- Resistance
- 10 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.05 W
- Max. Operating voltage (DC)
- 20 V DC
- Max. Operating voltage (AC)
- 50 V AC
- Insulation voltage
- 250 V
- Insulation resistance
- 100 MOhm
- Service life
- 5,000 Zyklen
Mechanical Features
- Rotation angle, mechanical
- 300 °
- Torque
- 8 mNm
