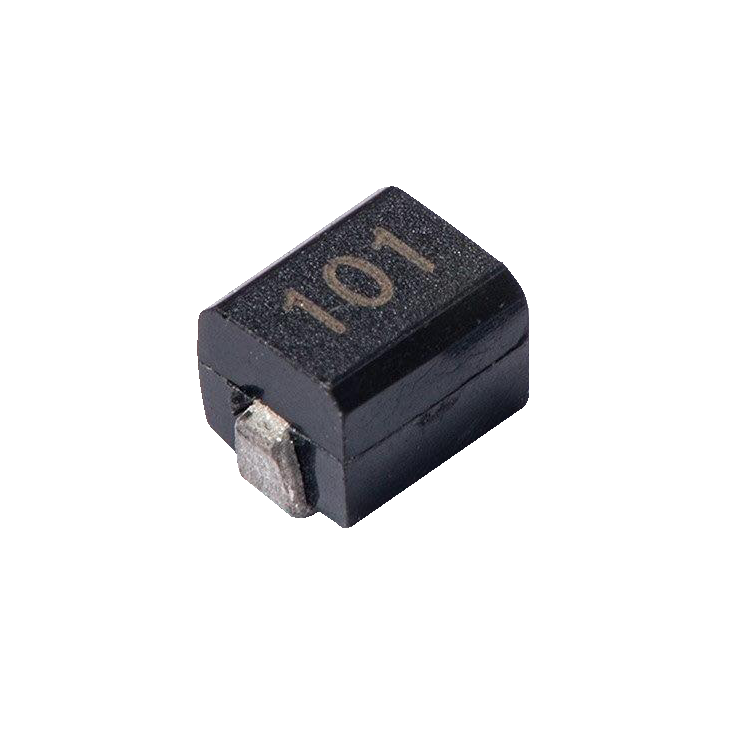

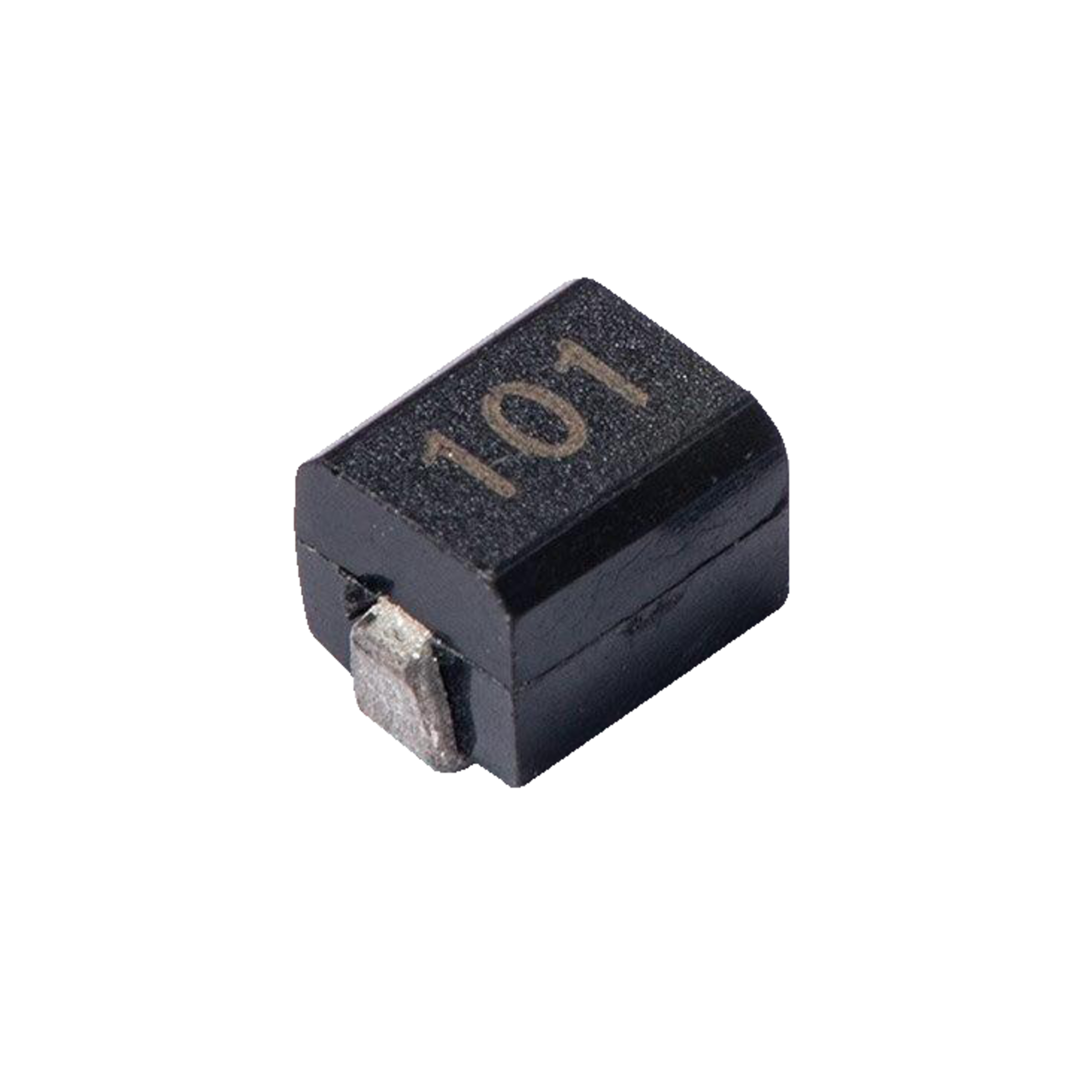

DSKA3225-101KF
Acroparts Technology Inductors SMD throttle DSKA3225 0,075A 100µH -10-10% 3,2mm 2,5mm 2,2mm strapped
Manufacturer Part No.
DSKA3225-101KF
Schukat Part No.
DSKA3225-101KF
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.400 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Kind
- throttle
- Inductance
- 100 µH
- Inductance tolerance
- -10 %
- Nominal resistance
- 10,14 Ohm
- Rated current
- 0.075 A
- Housing
- SMD
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 2.2 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 2.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Inductance
- 100 µH
- Inductance tolerance
- -10 %
- Test frequency
- 0,796 MHz
- Nominal resistance
- 10,14 Ohm
- Rated current
- 0.075 A
- Resonant frequency, min.
- 9 MHz
- Quality factor, min.
- 20
