ZTB455E

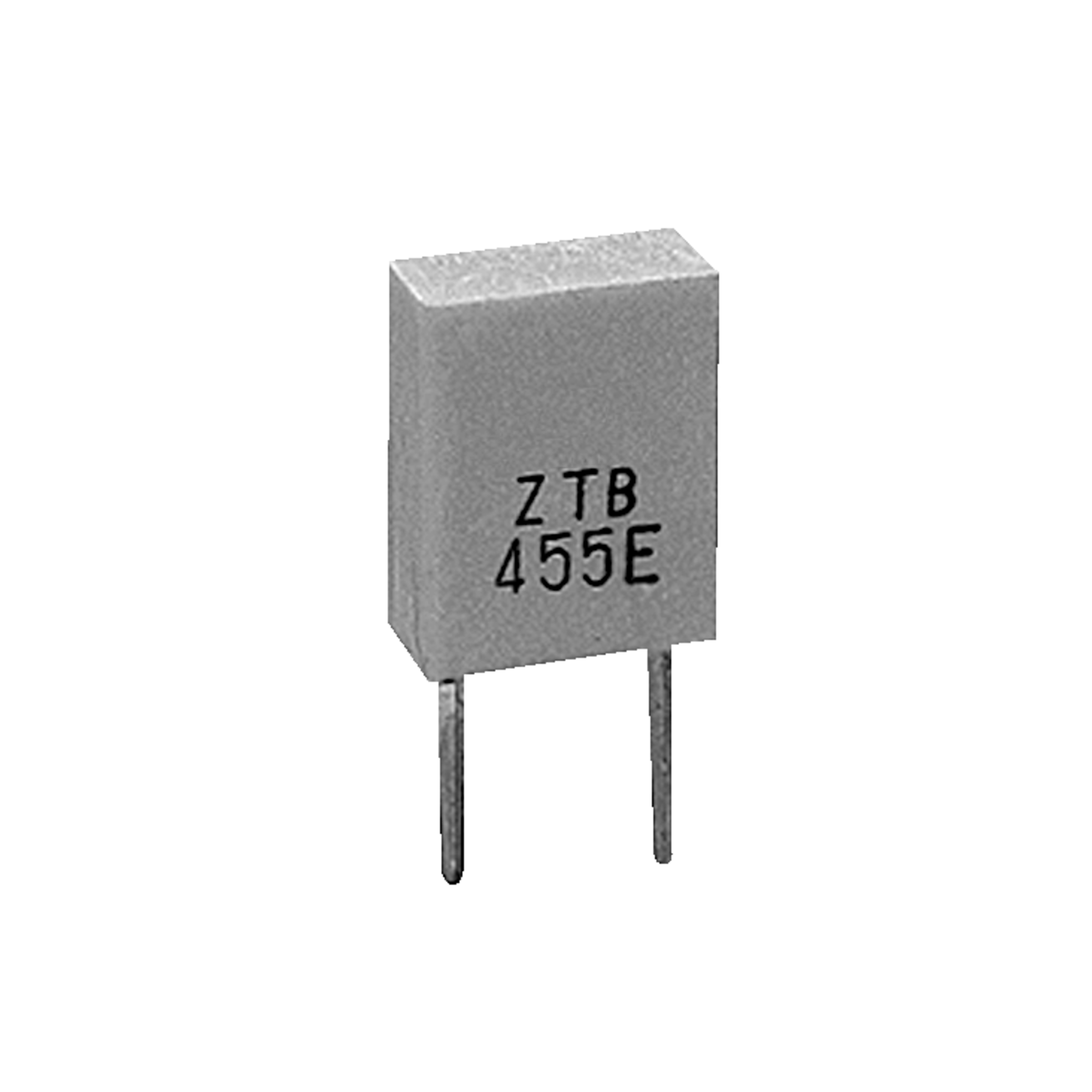

Abundance Ceramic resonators ZTB 0,455MHz -0,5-0,5%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.000 Pcs. in stock
Planned delivery time
Ø 29 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- ZTB
- Frequency
- 0.455 MHz
- Frequency tolerance
- -0,5 - 0,5 %
- Temperature stability
- -0,3 - 0,3 %
- Load capacity
- 100 pF
- RoHS-Conform
Specifications
Open all
Technical features
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 80 °C
- Frequency
- 0.455 MHz
- Frequency tolerance
- -0,5 - 0,5 %
- Temperature stability
- -0,3 - 0,3 %
- Ageing in 10 years
- -0,3 - 0,3 %
- Load capacity
- 100 pF
- Resonant Resistance
- 20 Ohm
