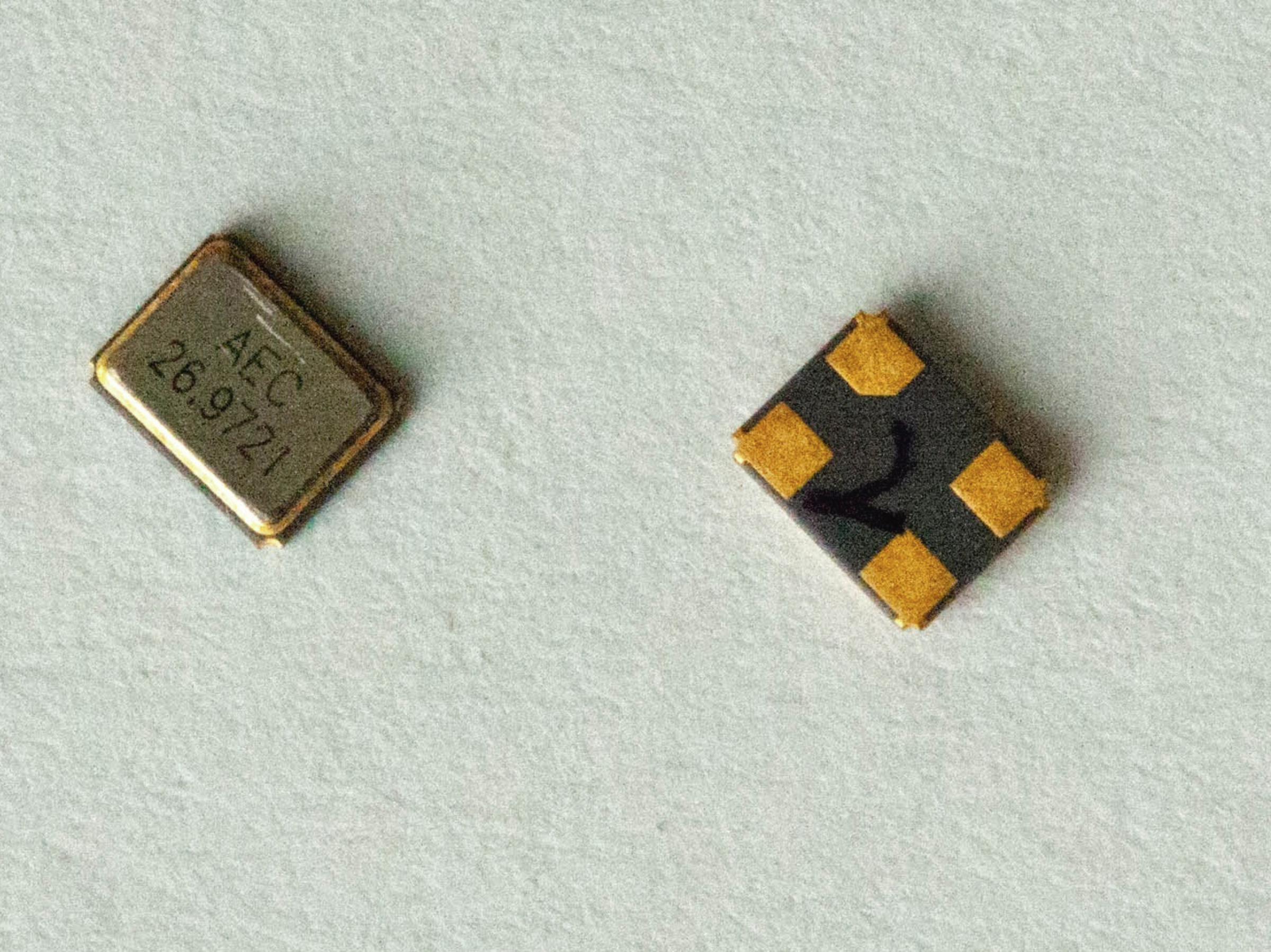

SX3225-27M-AF-10/10-50R-12P
Abundance Quartz Resonators SX3225 27MHz -30-30ppm
Manufacturer Part No.
SX3225-27M-AF-10/10-50R-12P
Schukat Part No.
SX3225-27MHZ
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
3.000 Pcs.
3.000 Pcs.
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 3000 or multiple of 3000)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- SX3225
- Frequency
- 27 MHz
- Frequency tolerance
- -30 - 30 ppm
- Temperature stability
- -30 - 30 ppm
- Load capacity
- 12 pF
- RoHS-Conform
Specifications
Open all
Technical features
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 60 °C
- Frequency
- 27 MHz
- Frequency tolerance
- -30 - 30 ppm
- Temperature stability
- -30 - 30 ppm
- Ageing in 10 years
- -1,3 - 1,3 ppm
- Load capacity
- 12 pF
- Equivalent series resistance (ESR)
- 40 Ohm
