RK09K12C0A19

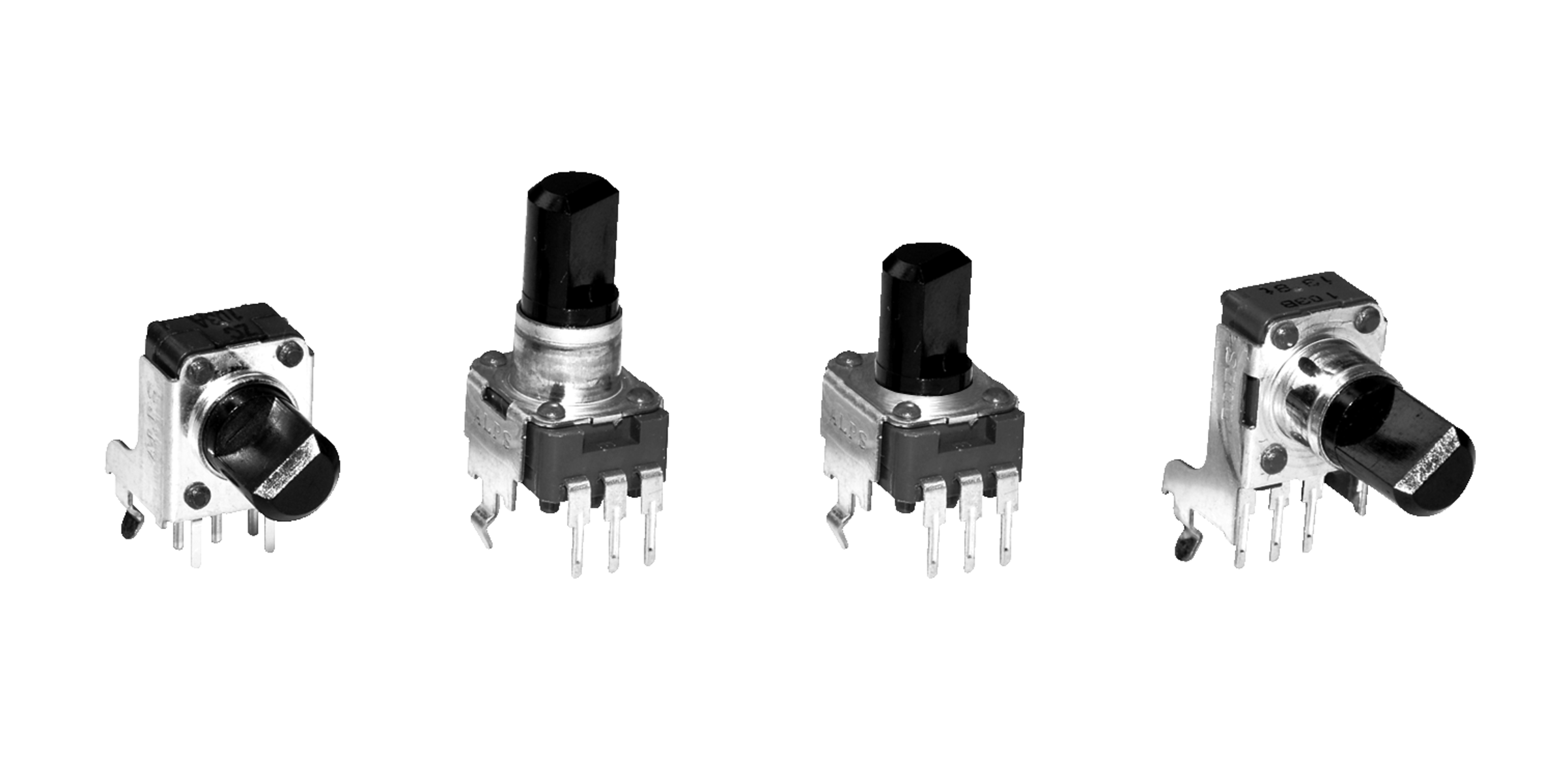

ALPS Carbon film potentiometer RK09 pos. log. 0,03W 10kOhm 30% Shaft-Ø6mm plastic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.590 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 29.11.2021
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 10 kOhm
- Resistance tolerance
- 30 %
- Rated power
- 0.03 W
- RoHS-Conform
Specifications
Open all

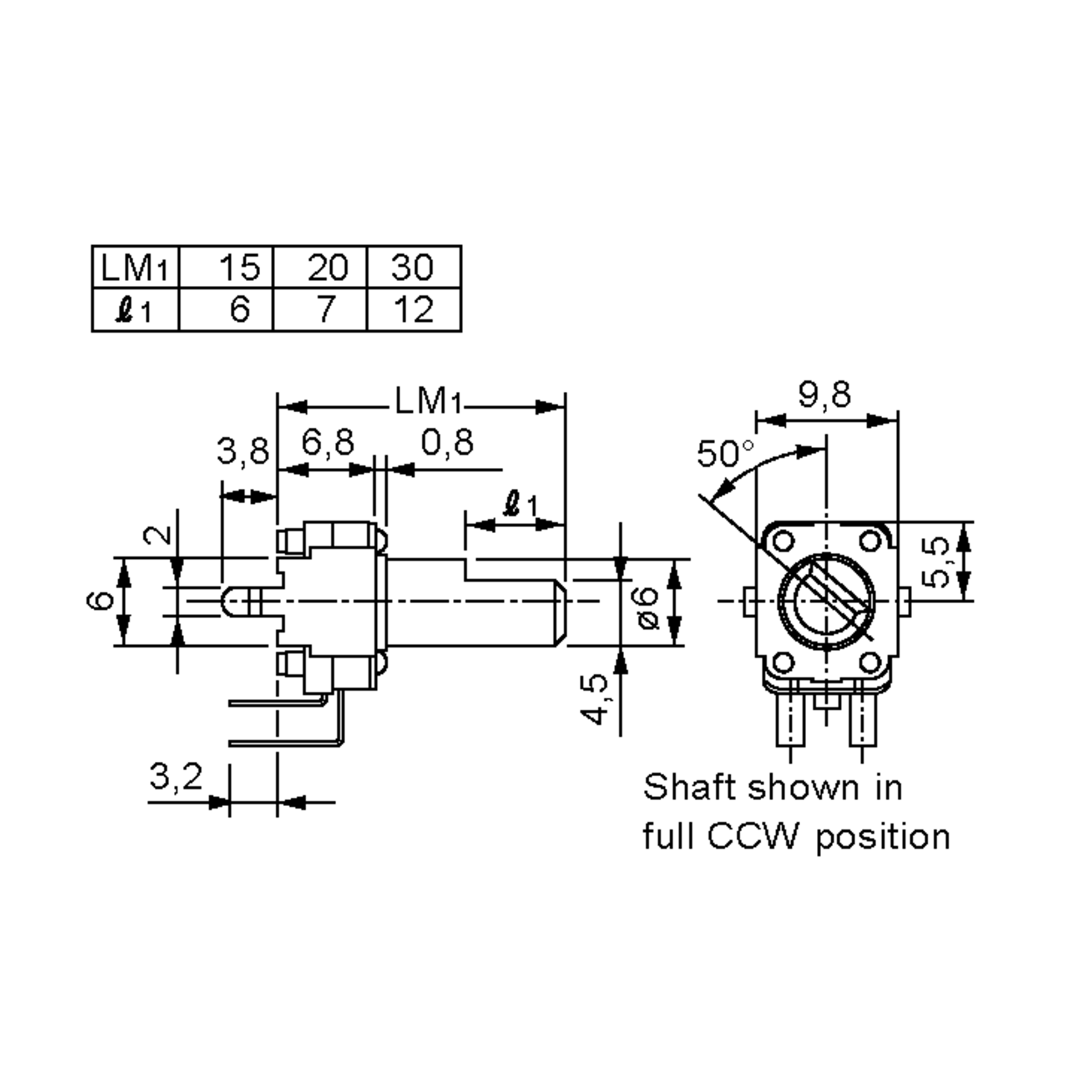

Dimensions and weights
- Lenght Body
- 9.8 mm
- Width Body
- 9.8 mm
- Height body
- 6.8 mm
- Length, shaft
- 15 mm
- Diameter, shaft
- 6 mm
- Shaft
- plastic
- Centre detent
- without
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Resistance value
- 10
- Resistance unit
- kOhm
- Resistance value
- 10 kOhm
- Resistance tolerance
- 30 %
- Resistance curve
- pos. log.
- Rated power
- 0.03 W
- Max. Operating voltage (AC)
- 50 V AC
- Insulation Voltage
- 250 V
- Insulation resistance
- 100 MOhm
- Service life
- 10,000 Zyklen
Mechanical features
- Rotation angle, mechanical
- 280 °
- Torque
- 8 mNm
