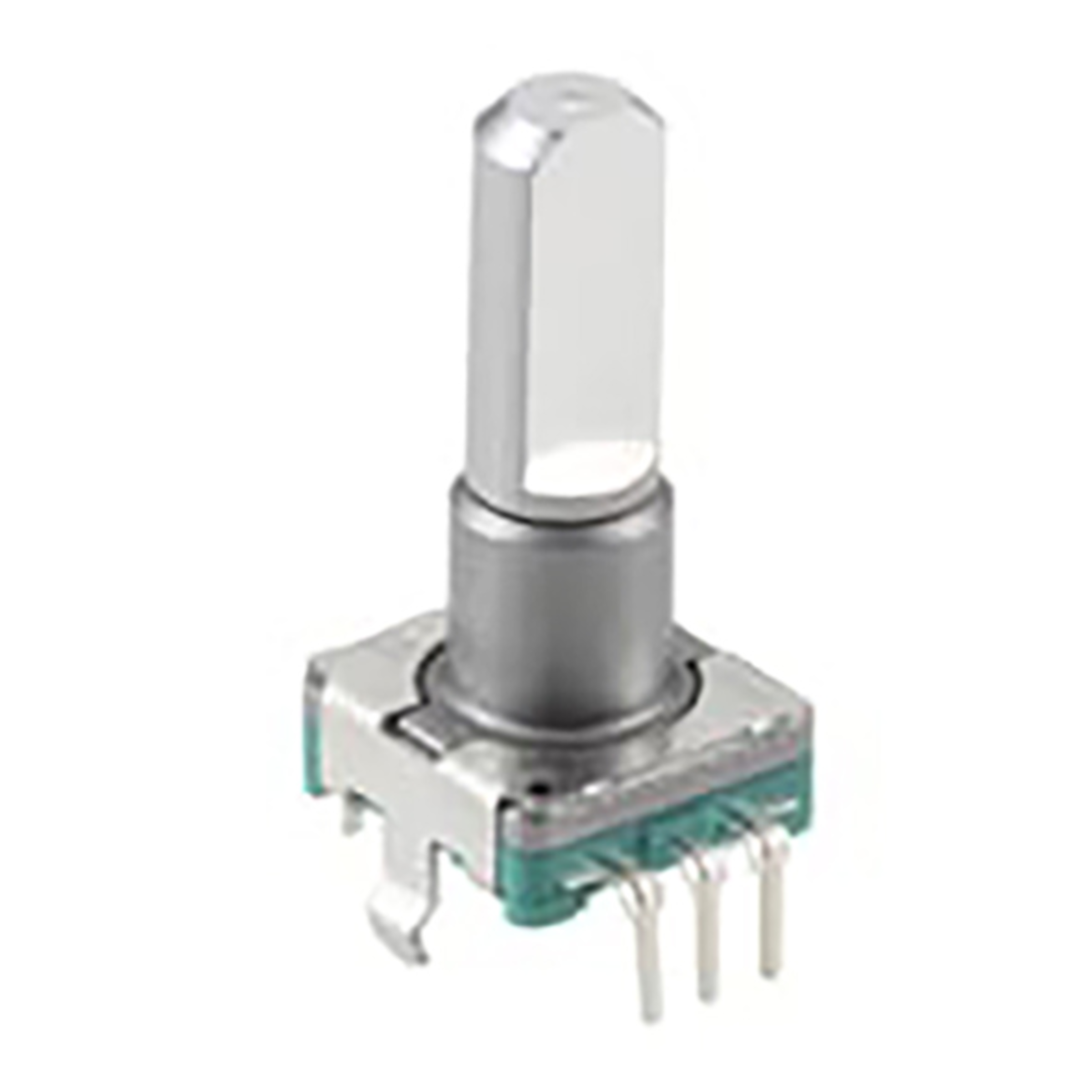

EC11E15204A3
ALPS Encoder without switch EC11 0,5mA 15Pulse 10mNm Shaft Ø6mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 120 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Housing
- vertical
- RoHS-Conform
Specifications
Open all

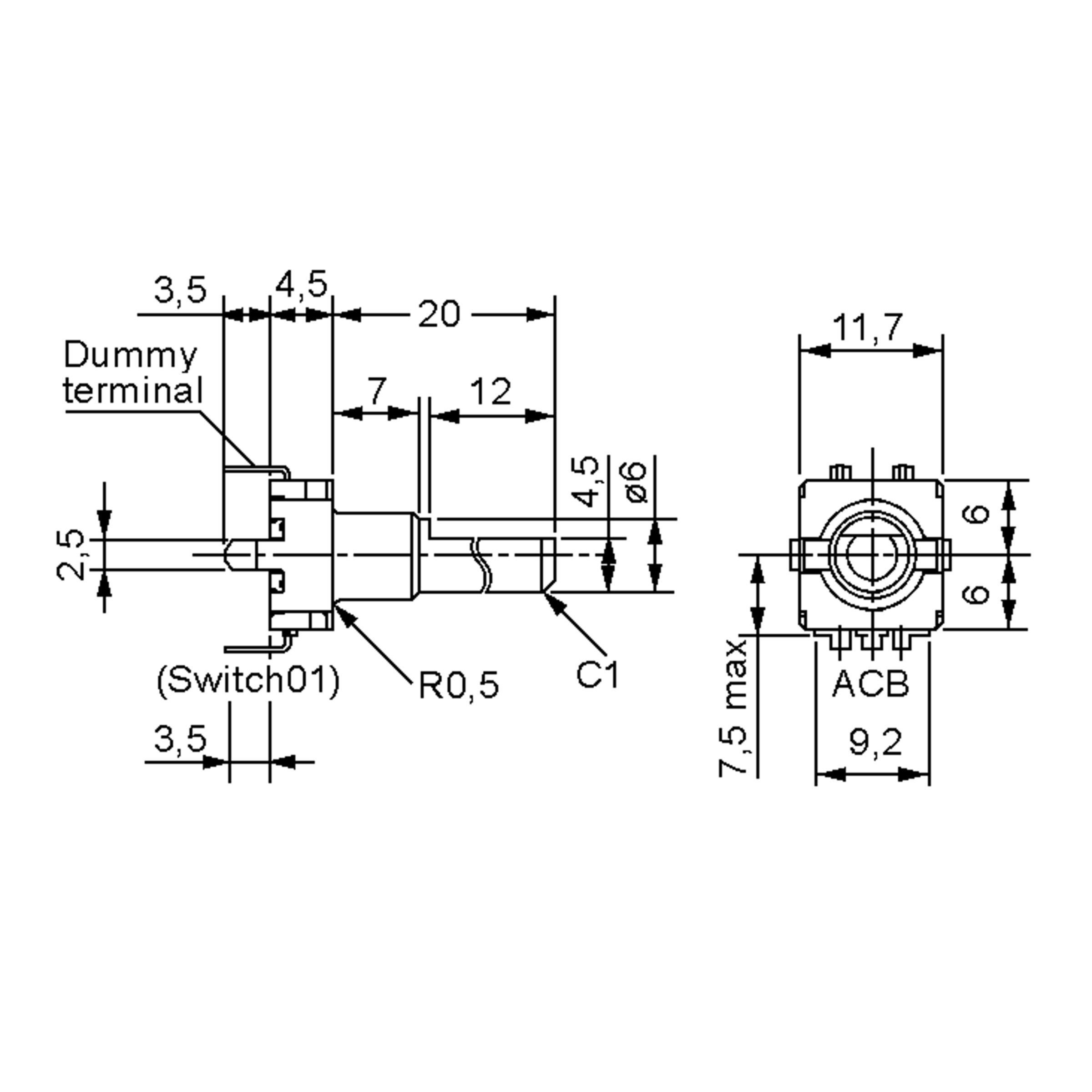

Dimensions and weights
- Total height
- 24.5 mm
- Lenght Body
- 11.7 mm
- Width Body
- 11.7 mm
- Height body
- 4.5 mm
- Length, shaft
- 20 mm
- Diameter, shaft
- 6 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated current
- 0.5 mA
- Stops
- 30
- Pulse output number
- 15
- Rated Voltage
- 5 V
- Insulation resistance
- 100 MOhm
- Service life
- 15,000 Zyklen
Mechanical features
- Rotation angle, mechanical
- 360 °
- Torque
- 10 mNm

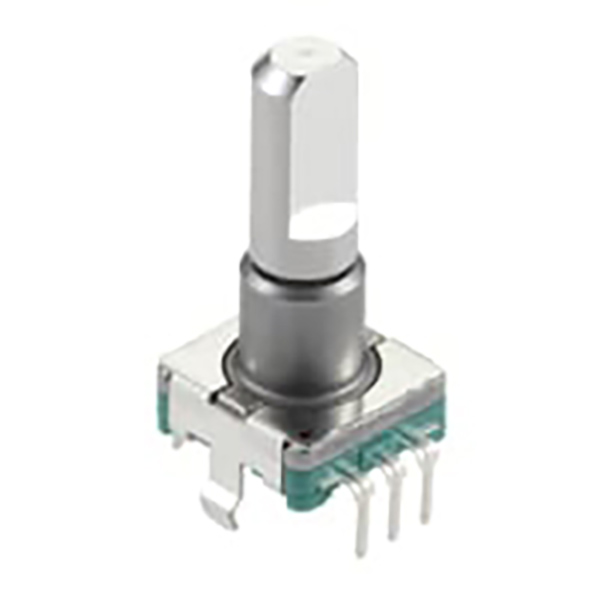

Other Products
