CA6XV05-1KA2020

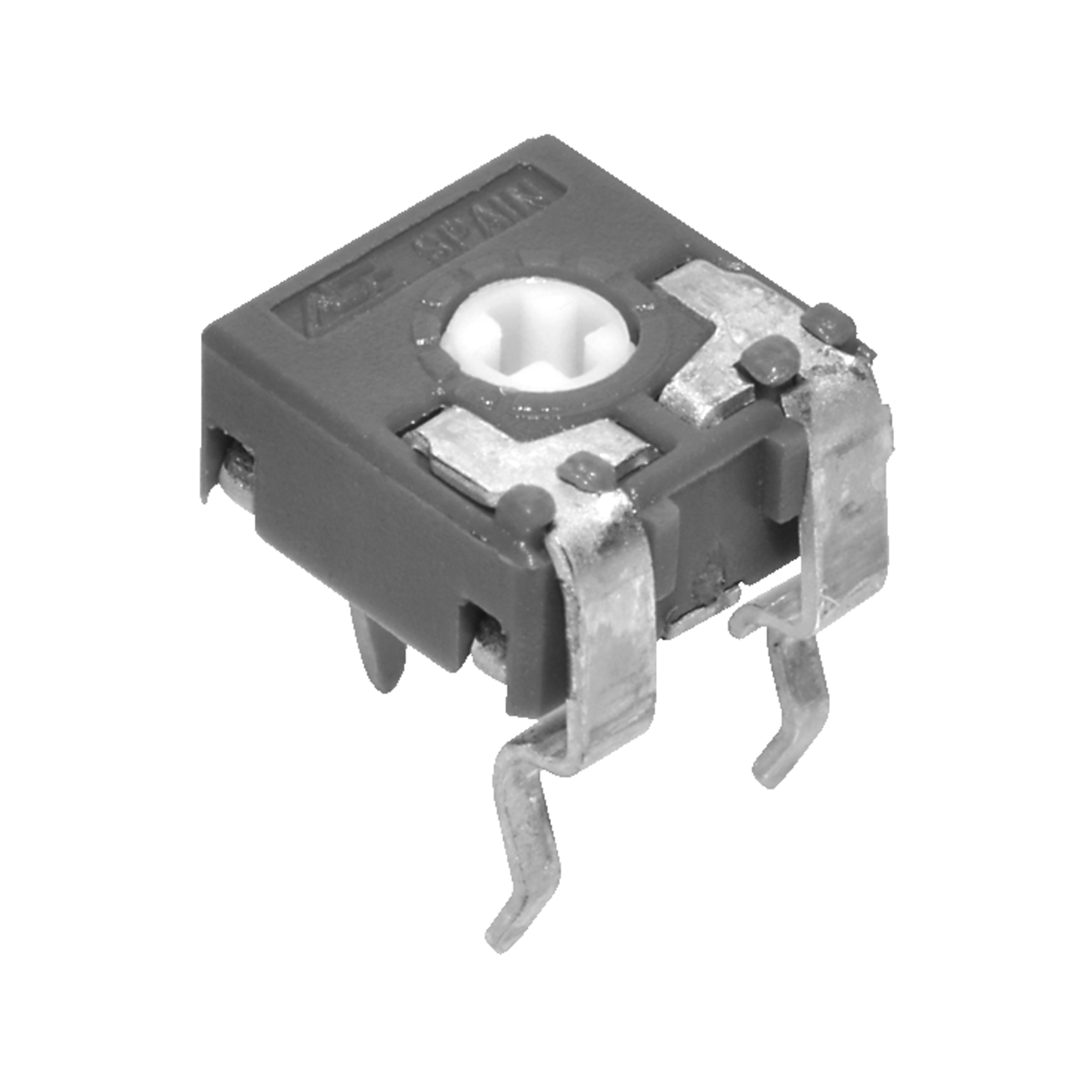

ACP Carbon film trimmer CA6 vertical 0,1W 1kOhm 20% Actuation from above crossed slot P5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
6.700 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 1 kOhm
- Resistance tolerance
- 20 %
- Rated power
- 0.1 W
- Housing
- vertical
- Pitch
- 5 mm
- RoHS-Conform
Specifications
Open all

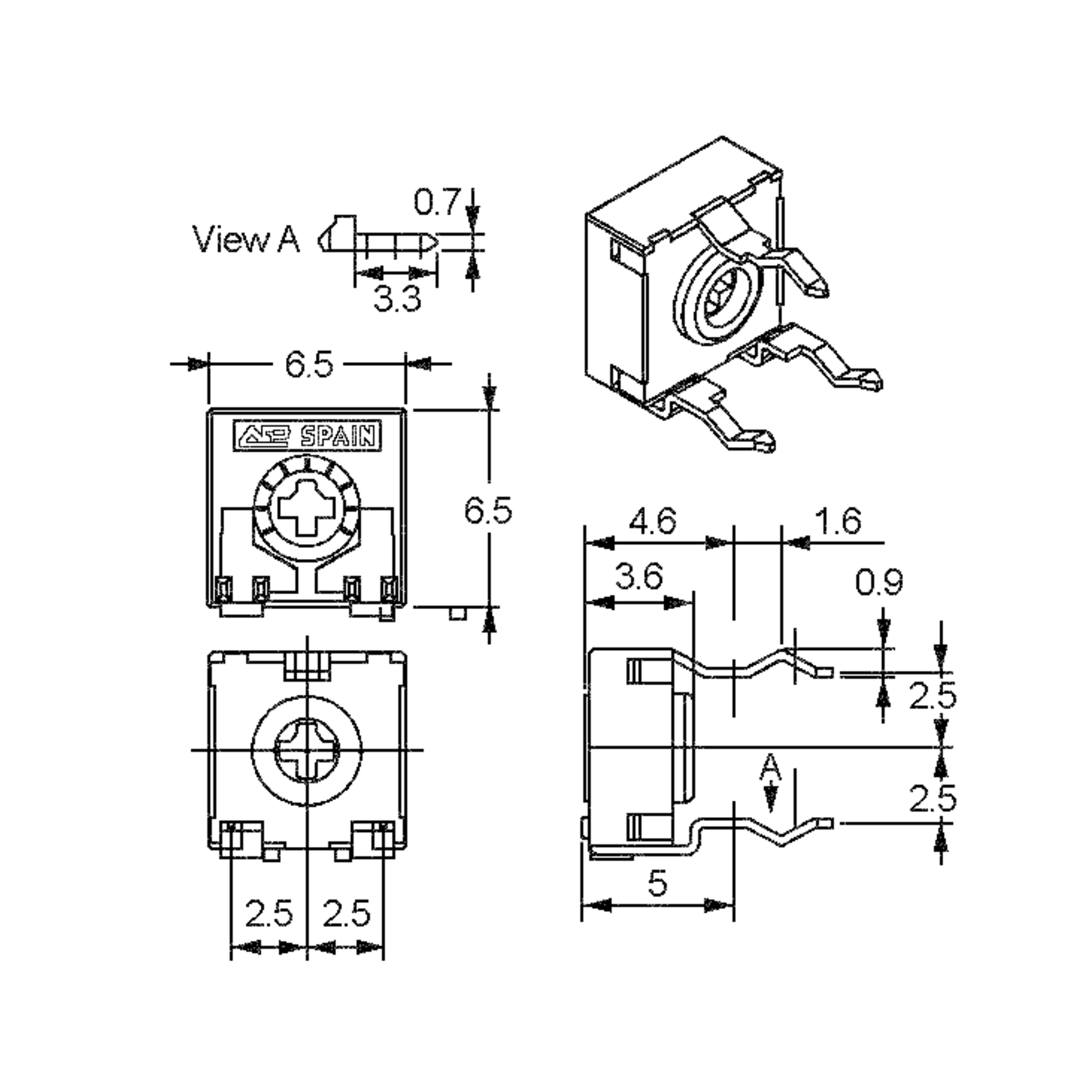

Dimensions and weights
- Dimension: Length
- 6.5 mm
- Dimension: Width
- 6.5 mm
- Dimension: Height
- 8.2 mm

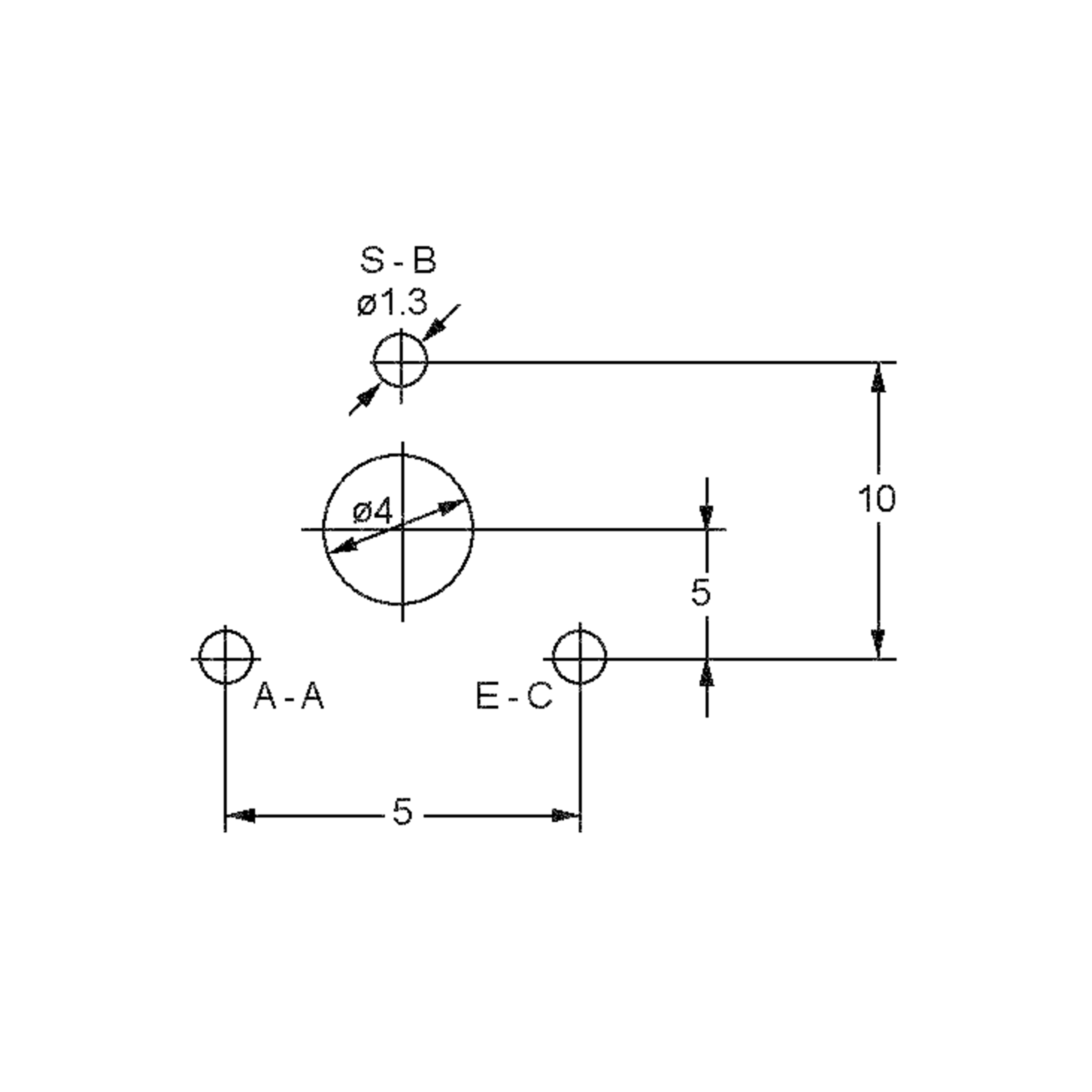

- Pitch
- 5 mm
- Shaft
- crossed slot
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Resistance value
- 1
- Resistance unit
- kOhm
- Resistance value
- 1 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.1 W
- Hold-off Voltage
- 100 V
Mechanical features
- Actuation
- from above
- Rotation angle, mechanical
- 235 °
- Rotation angle, electric
- 215 °
- Impact resistance
- 4 Ncm
- Torque
- 2 Ncm
Safety/Certifications
- Standards
- DIN 41450-1-4-5
