CA14NV12,5-100KA2020

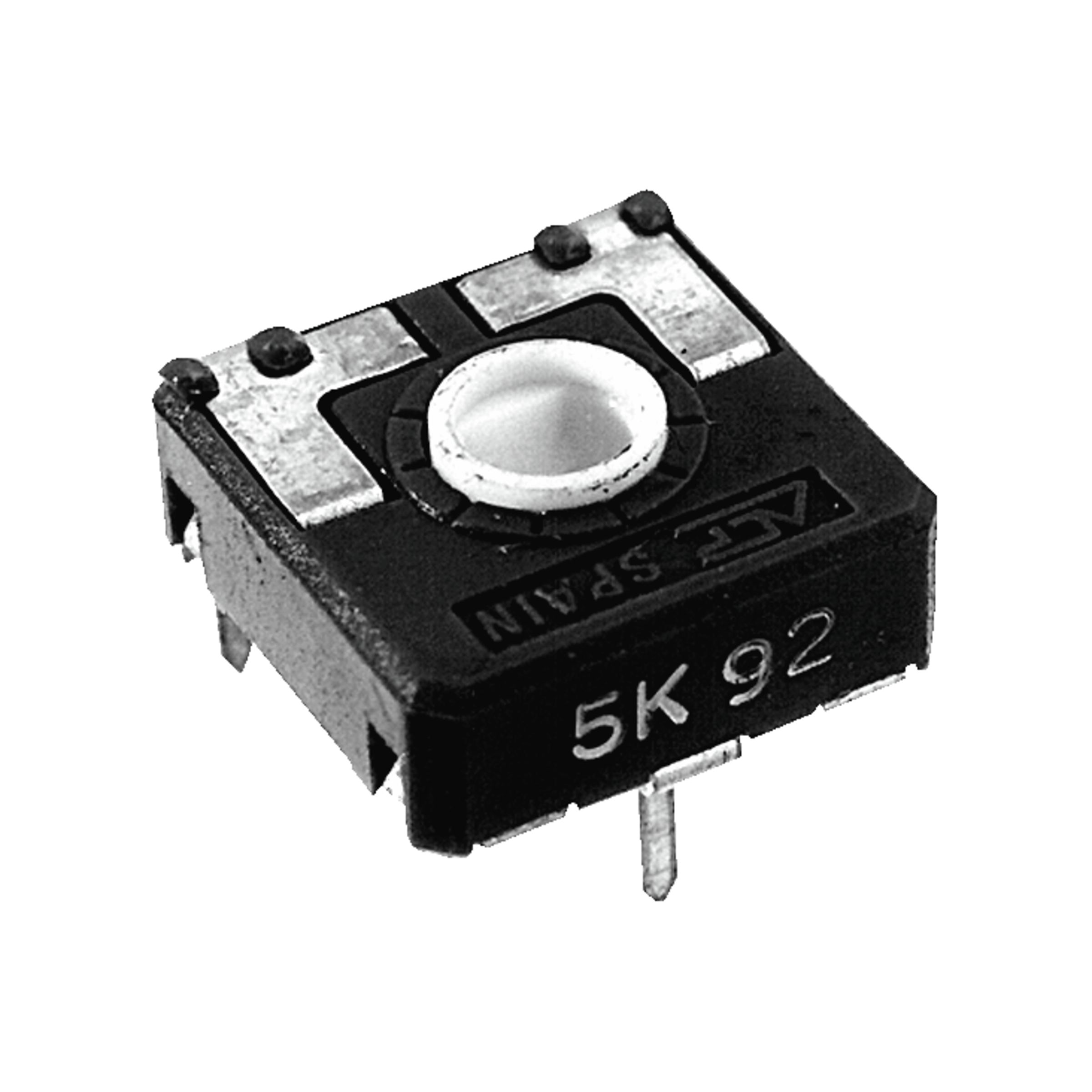

ACP Carbon film trimmer CA14 vertical 0,25W 100kOhm 20% Actuation from above elougated hole P12,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.550 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 100 kOhm
- Resistance tolerance
- 20 %
- Rated power
- 0.25 W
- Housing
- vertical

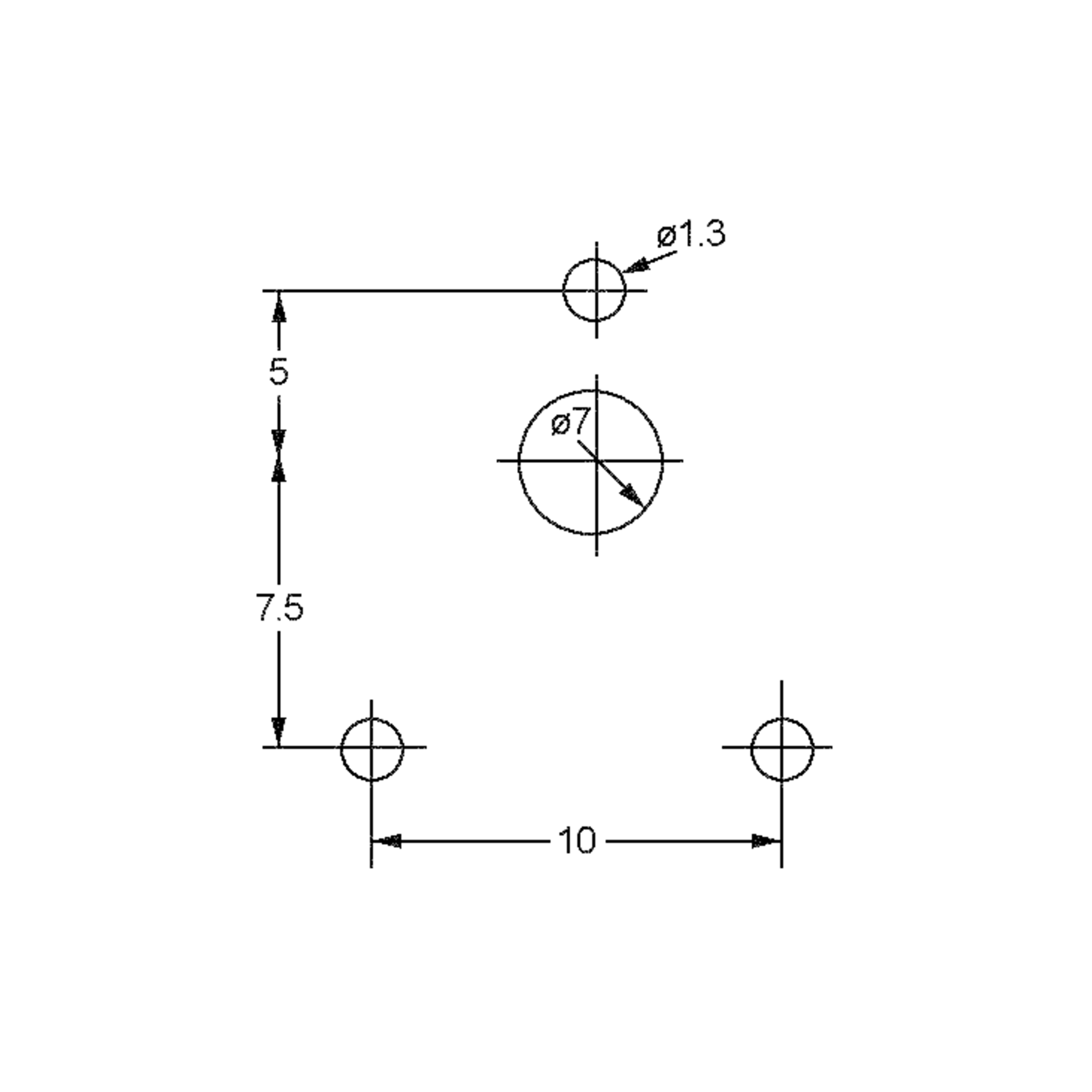

- Pitch
- 12.5 mm
- RoHS-Conform
Specifications
Open all

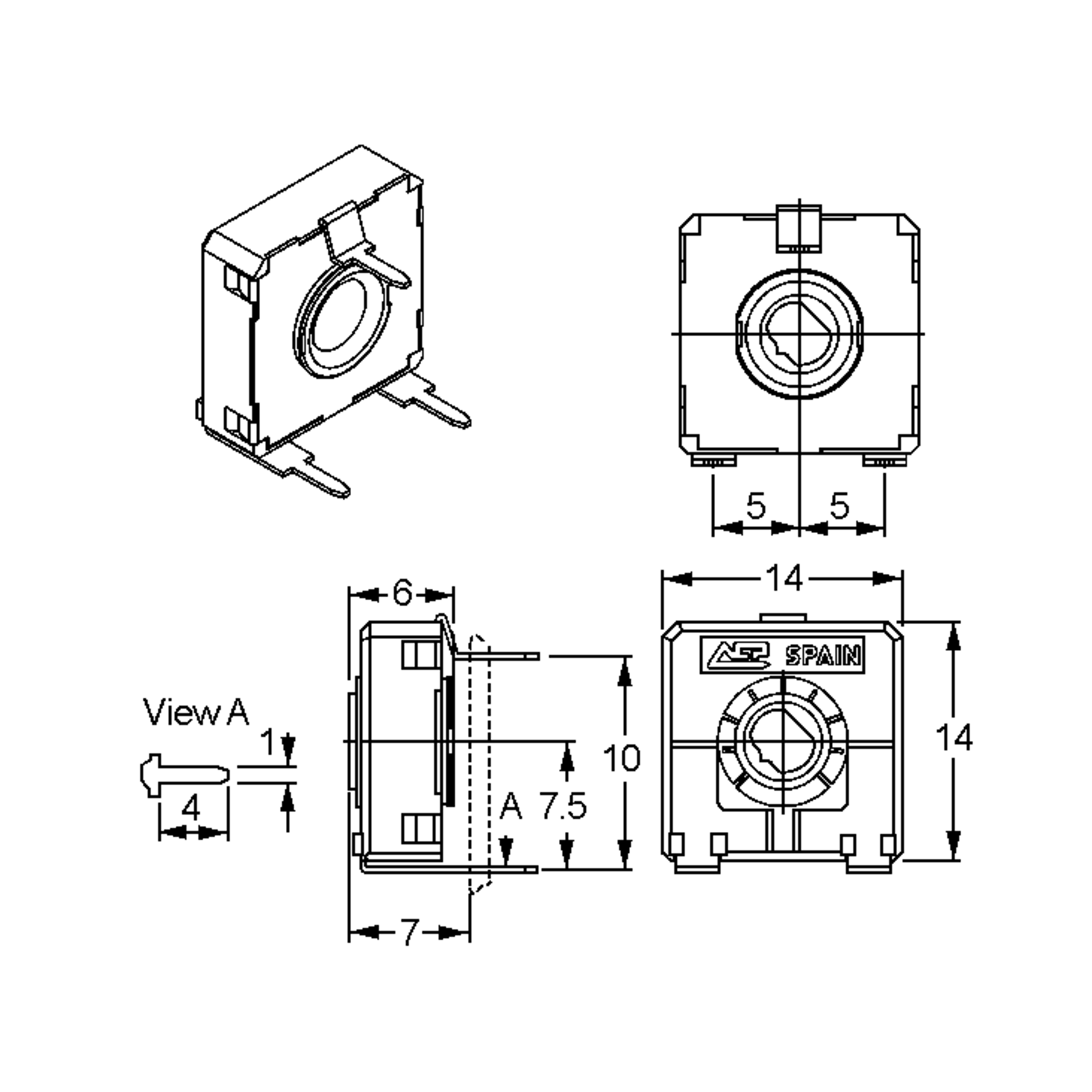

Dimensions and weights
- Dimension: Length
- 14 mm
- Dimension: Width
- 14 mm
- Pitch
- 12.5 mm
- Shaft
- elougated hole
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Resistance value
- 100
- Resistance unit
- kOhm
- Resistance value
- 100 kOhm
- Resistance tolerance
- 20 %
- Resistance curve
- linear
- Rated power
- 0.25 W
- Hold-off Voltage
- 250 V
Mechanical features
- Actuation
- from above
- Rotation angle, mechanical
- 265 °
- Rotation angle, electric
- 245 °
- Impact resistance
- 10 Ncm
- Torque
- 2,5 Ncm
Safety/Certifications
- Standards
- DIN 41450-1-4-5
