Results (336)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Mains connection/phases | Output Power | Output voltage | Output current | Efficiency | Input voltage min. AC | Input voltage max. AC | Operating Temperature Min. | Operating Temperature Max. | Dimension: Width | Dimension: Height | Dimension: Depth | Protection class | Application | Approvals | Standards (safety) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

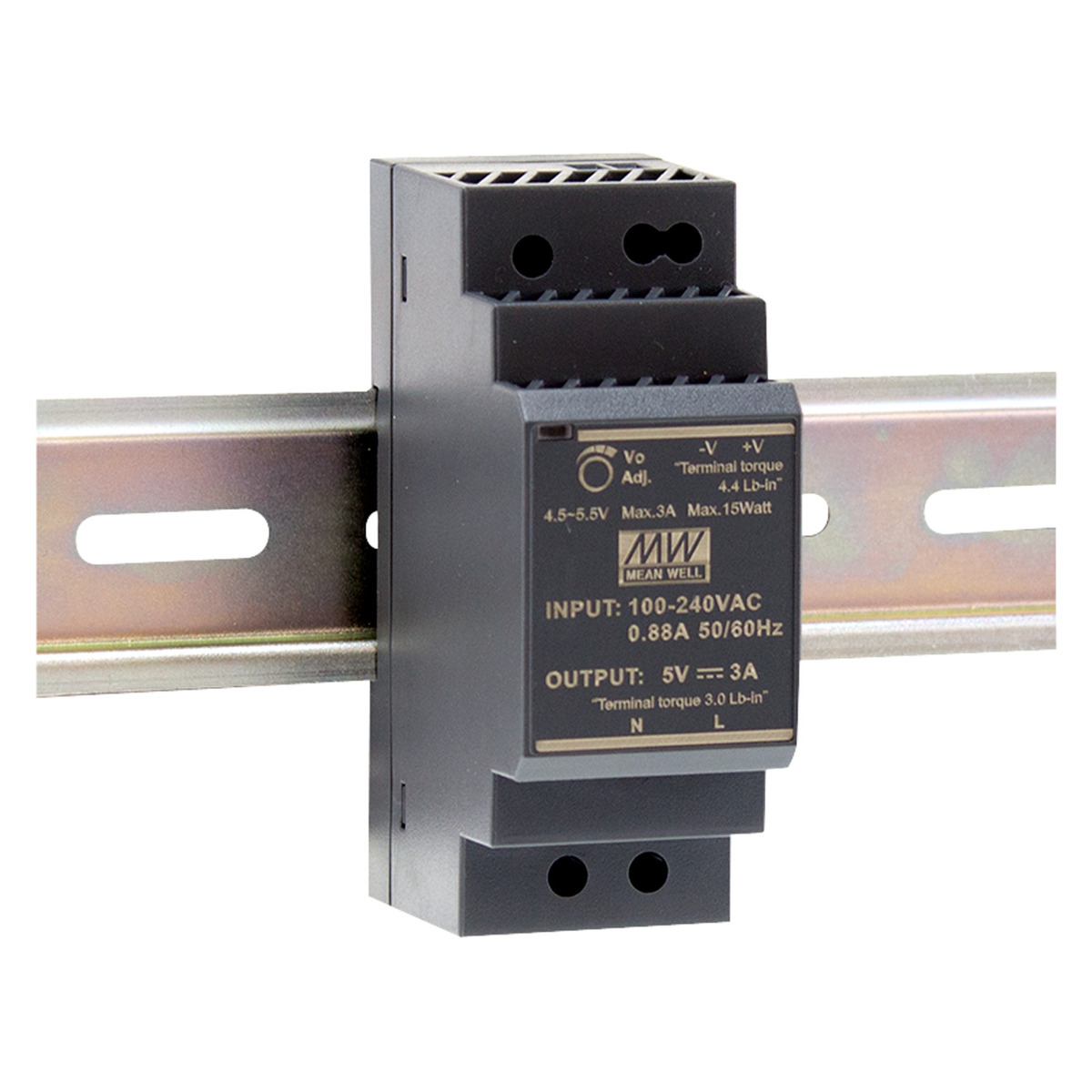

126 |  | Manufacturers Part No. HDR-30-5(HDR-30-5) MEAN WELL AC/DC industrial power supply unit DIN Rail 15W 5V 3,00A TOP | Customer Part No. Customer Project No. | 2.318 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 15.0 W | 5.0 V | 3.0 A | 82.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 35.0 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||

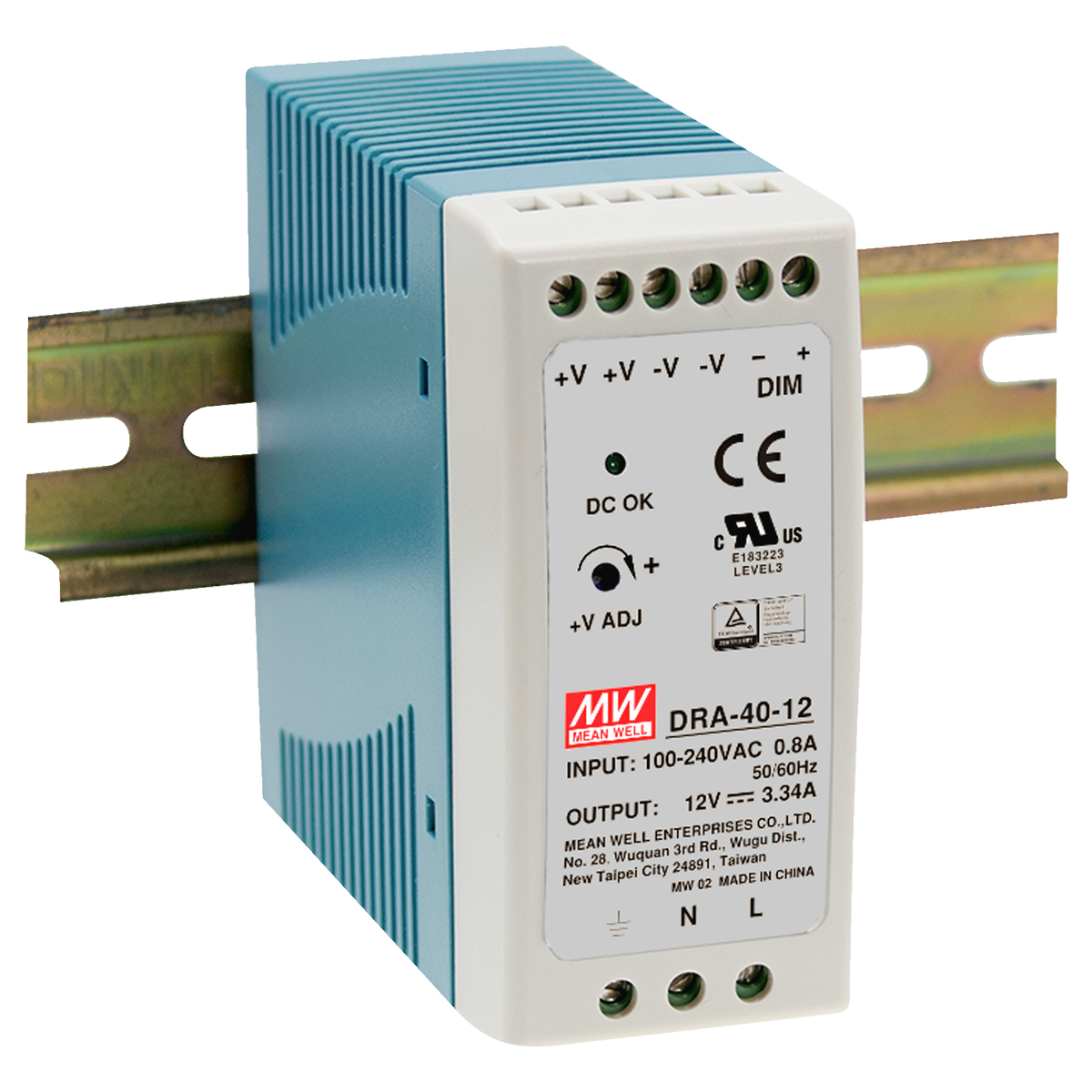

127 | | Manufacturers Part No. DRA-40-12(DRA-40-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 40,08W 12V 3,34A | Customer Part No. Customer Project No. | 173 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 40.08 W | 12.0 V | 3.34 A | 85.0 % | 90.0 V | 264.0 V | -30.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 UL 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible LPS | |||||
128 | | Manufacturers Part No. DRA-40-24(DRA-40-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 40,8W 24V 1,7A | Customer Part No. Customer Project No. | 79 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 40.8 W | 24.0 V | 1.7 A | 87.0 % | 90.0 V | 264.0 V | -30.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 UL 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible LPS | |||||
129 | | Manufacturers Part No. MDR-40-12(MDR-40-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 40W 12V 3,33A TOP | Customer Part No. Customer Project No. | 621 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 40.0 W | 12.0 V | 3.33 A | 86.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA | EN 62368-1 UL 60950-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
130 | | Manufacturers Part No. MDR-40-24(MDR-40-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 40,8W 24V 1,7A TOP | Customer Part No. Customer Project No. | 1.593 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 40.8 W | 24.0 V | 1.7 A | 88.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA | EN 62368-1 UL 60950-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
131 | | Manufacturers Part No. MDR-40-48(MDR-40-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 39,8W 48V 0,83A | Customer Part No. Customer Project No. | 143 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 39.8 W | 48.0 V | 0.83 A | 88.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA | EN 62368-1 UL 60950-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
132 | | Manufacturers Part No. MDR-40-5(MDR-40-5) MEAN WELL AC/DC industrial power supply unit DIN Rail 30W 5V 6A TOP | Customer Part No. Customer Project No. | 407 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 30.0 W | 5.0 V | 6.0 A | 78.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA | EN 62368-1 UL 60950-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
133 | | Manufacturers Part No. WDR-60-12(WDR-60-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 12V 5,00A | Customer Part No. Customer Project No. | 360 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I/II | 60.0 W | 12.0 V | 5.0 A | 86.0 % | 180.0 V | 550.0 V | -30.0 °C | 85.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | Building Automation ITE Industry | CE EAC EN UKCA | EN 61558-1 EN 61558-2-16 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
134 | | Manufacturers Part No. HDR-60-12(HDR-60-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 54W 12V 4,5A TOP | Customer Part No. Customer Project No. | 7.050 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 54.0 W | 12.0 V | 4.5 A | 88.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 52.2 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||
135 | | Manufacturers Part No. WDR-60-24(WDR-60-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 24V 2,5A | Customer Part No. Customer Project No. | 1.183 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I/II | 60.0 W | 24.0 V | 2.5 A | 89.0 % | 180.0 V | 550.0 V | -30.0 °C | 85.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | Building Automation ITE Industry | CE EAC EN UKCA | EN 61558-1 EN 61558-2-16 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
136 | | Manufacturers Part No. HDR-60-15(HDR-60-15) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 15V 4,00A TOP | Customer Part No. Customer Project No. | 272 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 15.0 V | 4.0 A | 89.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 52.2 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||
137 | | Manufacturers Part No. WDR-60-48(WDR-60-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 48V 1,25A | Customer Part No. Customer Project No. | 4 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I/II | 60.0 W | 48.0 V | 1.25 A | 90.0 % | 180.0 V | 550.0 V | -30.0 °C | 85.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | Building Automation ITE Industry | CE EAC EN UKCA | EN 61558-1 EN 61558-2-16 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
138 | | Manufacturers Part No. HDR-60-24(HDR-60-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 24V 2,5A TOP | Customer Part No. Customer Project No. | 36.638 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 24.0 V | 2.5 A | 90.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 52.2 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||
139 | | Manufacturers Part No. WDR-60-5(WDR-60-5) MEAN WELL AC/DC industrial power supply unit DIN Rail 50W 5V 10,00A | Customer Part No. Customer Project No. | 125 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I/II | 50.0 W | 5.0 V | 10.0 A | 83.0 % | 180.0 V | 550.0 V | -30.0 °C | 85.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | Building Automation ITE Industry | CE EAC EN UKCA | EN 61558-1 EN 61558-2-16 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
140 | | Manufacturers Part No. HDR-60-48(HDR-60-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 48V 1,25A TOP | Customer Part No. Customer Project No. | 961 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 48.0 V | 1.25 A | 91.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 52.2 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||
141 | | Manufacturers Part No. NDR-75-12(NDR-75-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 75,6W 12V 6,3A TOP | Customer Part No. Customer Project No. | 1.747 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 75.6 W | 12.0 V | 6.3 A | 85.5 % | 90.0 V | 264.0 V | -20.0 °C | 70.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 | Adjustable Output Voltage DC compatible | |||||
142 | | Manufacturers Part No. HDR-60-5(HDR-60-5) MEAN WELL AC/DC industrial power supply unit DIN Rail 32,5W 5V 6,5A TOP | Customer Part No. Customer Project No. | 2.752 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 32.5 W | 5.0 V | 6.5 A | 85.0 % | 85.0 V | 264.0 V | -30.0 °C | 70.0 °C | 52.2 mm | 90.0 mm | 54.5 mm | II | Building Automation ITE Industry | AS/NZ BSMI CE EAC EN IEC UKCA UL | EN 61558-2-16 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible LPS | |||||
143 | | Manufacturers Part No. NDR-75-24(NDR-75-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 76,8W 24V 3,2A TOP | Customer Part No. Customer Project No. | 3.606 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 76.8 W | 24.0 V | 3.2 A | 88.0 % | 90.0 V | 264.0 V | -20.0 °C | 70.0 °C | 32.0 mm | 125.2 mm | 102.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 | Adjustable Output Voltage DC compatible | |||||
144 | | Manufacturers Part No. DRA-60-12(DRA-60-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 12V 5A | Customer Part No. Customer Project No. | 79 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 12.0 V | 5.0 A | 85.0 % | 90.0 V | 264.0 V | -30.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 UL 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible LPS | |||||
145 | | Manufacturers Part No. DRA-60-24(DRA-60-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 24V 2,5A TOP | Customer Part No. Customer Project No. | 484 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 24.0 V | 2.5 A | 87.0 % | 90.0 V | 264.0 V | -30.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | CE EAC EN IEC UKCA UL | EN 62368-1 UL 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible LPS | |||||
146 | | Manufacturers Part No. MDR-60-12(MDR-60-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 12V 5A TOP | Customer Part No. Customer Project No. | 3.505 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 12.0 V | 5.0 A | 86.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BIS BSMI CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
147 | | Manufacturers Part No. MDR-60-24(MDR-60-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 24V 2,5A TOP | Customer Part No. Customer Project No. | 12.928 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 24.0 V | 2.5 A | 88.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BIS BSMI CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
148 | | Manufacturers Part No. MDR-60-48(MDR-60-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 60W 48V 1,25A TOP | Customer Part No. Customer Project No. | 1.710 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 60.0 W | 48.0 V | 1.25 A | 87.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BIS BSMI CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
149 | | Manufacturers Part No. MDR-60-5(MDR-60-5) MEAN WELL AC/DC industrial power supply unit DIN Rail 50W 5V 10A TOP | Customer Part No. Customer Project No. | 908 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 50.0 W | 5.0 V | 10.0 A | 78.0 % | 85.0 V | 264.0 V | -20.0 °C | 70.0 °C | 40.0 mm | 90.0 mm | 100.0 mm | I | ITE Industry | AS/NZ BIS BSMI CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
150 | | Manufacturers Part No. XDR-960-48(XDR-960-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 960W 48V 20A MOD-Bus New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 30 Weeks Available on order | (at least 1 or mul. of 1) | MEAN WELL | I | 960.0 W | 48.0 V | 20.0 A | 96.0 % | 85.0 V | 305.0 V | -40.0 °C | 85.0 °C | 96.0 mm | 125.2 mm | 132.0 mm | I | ITE Industry MSR/Laboratory | BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Peak Power Remote Function |
