Results (348)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Mains connection/phases | Output Power | Output voltage | Output current | Efficiency | Input voltage min. AC | Input voltage max. AC | Operating Temperature Min. | Operating Temperature Max. | Dimension: Width | Dimension: Height | Dimension: Depth | Protection class | Application | Approvals | Standards (safety) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 |  | Manufacturers Part No. HSEUIREG07201.090(R2)(HSEUIREG07201.090) Camtec AC/DC industrial power supply unit DIN Rail 720W 90V 10A 0-5 Volt 0-10 Volt 0-20 mA 4-20 mA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 720.0 W | 90.0 V | 10.0 A | 90.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||

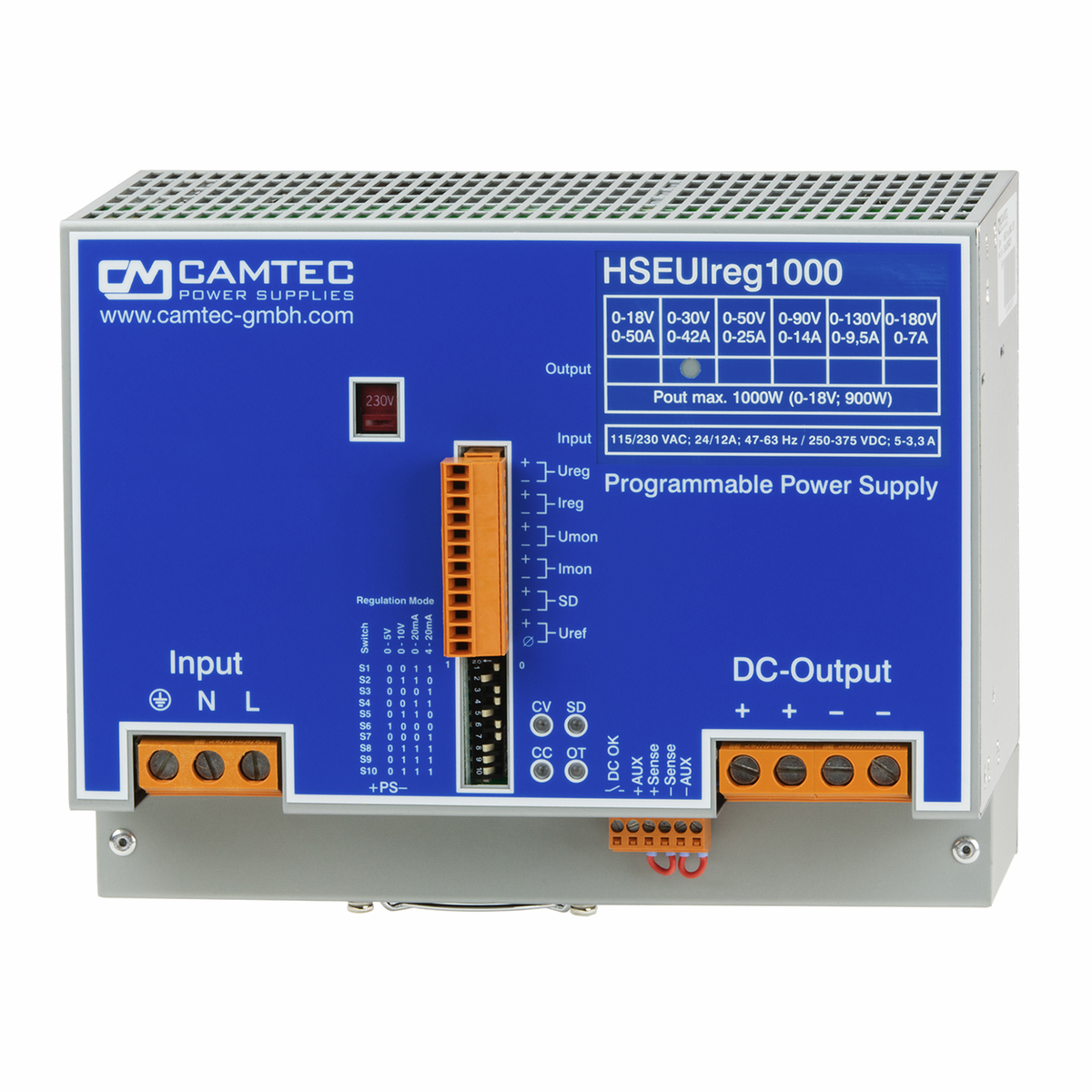

27 | | Manufacturers Part No. HSEUIREG10001.180(R2)(HSEUIREG10001.180) Camtec AC/DC industrial power supply unit DIN Rail 1.008W 180V 7A 0-10 Volt 0-20 mA 4-20 mA 0-5 Volt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 1008.0 W | 180.0 V | 7.0 A | 90.0 % | 90.0 V | 264.0 V | -20.0 °C | 70.0 °C | 200.0 mm | 156.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||

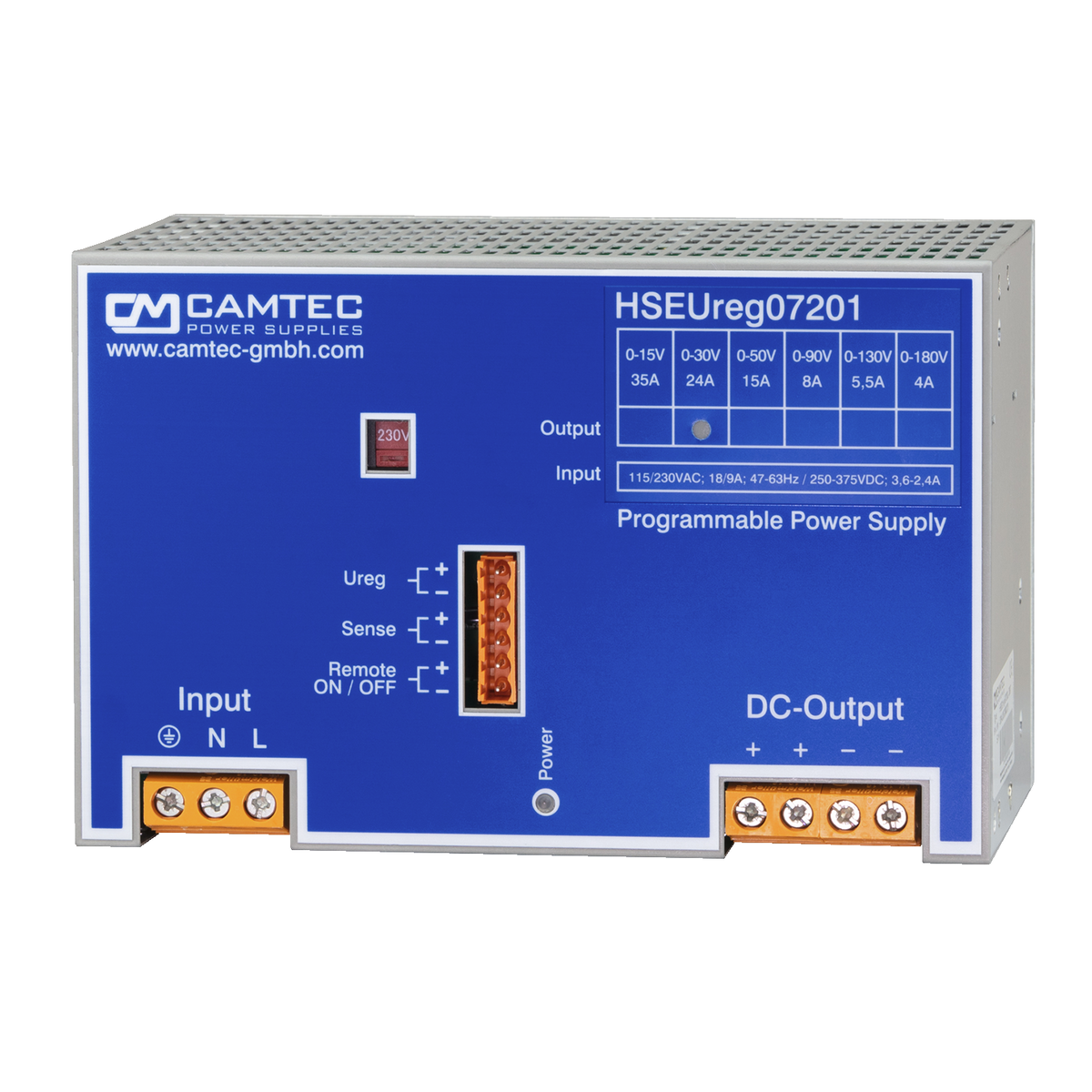

28 | | Manufacturers Part No. HSEUREG07201.050(R2)(HSEUREG07201.050) Camtec AC/DC industrial power supply unit DIN Rail 720W 50V 15A 0-10 Volt 0-20 mA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 720.0 W | 50.0 V | 15.0 A | 90.0 % | 90.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible Programmable Output Voltage Remote Function Remote Sense | |||||
29 | | Manufacturers Part No. HSEUIREG10001.130(R2)(HSEUIREG10001.130) Camtec AC/DC industrial power supply unit DIN Rail 1.008W 130V 9,5A 0-10 Volt 0-20 mA 4-20 mA 0-5 Volt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 1008.0 W | 130.0 V | 9.5 A | 90.0 % | 90.0 V | 264.0 V | -20.0 °C | 70.0 °C | 200.0 mm | 156.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||
30 | | Manufacturers Part No. HSEUIREG10001.240(R2)(HSEUIREG10001.240) Camtec AC/DC industrial power supply unit DIN Rail 1.008W 240V 5,3A 0-10 Volt 0-20 mA 4-20 mA 0-5 Volt | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 1008.0 W | 240.0 V | 5.3 A | 90.0 % | 90.0 V | 264.0 V | -20.0 °C | 70.0 °C | 200.0 mm | 156.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||
31 | | Manufacturers Part No. HSEUREG07201.015(R2)(HSEUREG07201.015) Camtec AC/DC industrial power supply unit DIN Rail 720W 15V 35A 0-10 Volt 0-20 mA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 720.0 W | 15.0 V | 35.0 A | 90.0 % | 90.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible Programmable Output Voltage Remote Function Remote Sense | |||||
32 | | Manufacturers Part No. HPV10001.110PG(R2)(HPV10001.110PG(R2)) Camtec AC/DC industrial power supply unit DIN Rail 1.008W 110V 9,1A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 1008.0 W | 110.0 V | 9.1 A | 93.0 % | 90.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 156.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | Adjustable Input Voltage Adjustable Output Voltage DC-OK-Signal | |||||
33 | | Manufacturers Part No. HPV10001.220PG(R2)(HPV10001.220PG(R2)) Camtec AC/DC industrial power supply unit DIN Rail 1.008W 220V 4,55A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 1008.0 W | 220.0 V | 4.55 A | 93.0 % | 90.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 156.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | Adjustable Input Voltage Adjustable Output Voltage DC-OK-Signal | |||||
34 | | Manufacturers Part No. HSEUIREG07201.130(R2)(HSEUIREG07201.130) Camtec AC/DC industrial power supply unit DIN Rail 720W 130V 7A 0-5 Volt 0-10 Volt 0-20 mA 4-20 mA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 720.0 W | 130.0 V | 7.0 A | 90.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||
35 | | Manufacturers Part No. HSEUIREG07201.240(R2)(HSEUIREG07201.240) Camtec AC/DC industrial power supply unit DIN Rail 720W 240V 3,8A 0-5 Volt 0-10 Volt 0-20 mA 4-20 mA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 720.0 W | 240.0 V | 3.8 A | 90.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 115.0 mm | I | ITE Industry | CE EN IEC UKCA | EN 61010-1 EN 62368-1 | DC compatible DC-OK-Signal Programmable Output Current Programmable Output Voltage Remote Function Remote Sense | |||||
36 | | Manufacturers Part No. CPS-EC480.048(R2)(CPS-EC480.048(R2)) Camtec AC/DC industrial power supply unit DIN Rail 480W 48V 10,5A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 480.0 W | 48.0 V | 10.5 A | 92.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 114.5 mm | I | ITE Industry | CE EN UKCA | EN 61010-1 EN 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | |||||
37 | | Manufacturers Part No. CPS-EC480.072(R2)(CPS-EC480.072(R2)) Camtec AC/DC industrial power supply unit DIN Rail 480W 72V 7,000A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 480.0 W | 72.0 V | 7.0 A | 92.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 114.5 mm | I | ITE Industry | CE EN UKCA | EN 61010-1 EN 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | |||||
38 | | Manufacturers Part No. CPS-EC480.150(R2)(CPS-EC480.150(R2)) Camtec AC/DC industrial power supply unit DIN Rail 480W 150V 3,3A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 480.0 W | 150.0 V | 3.3 A | 92.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 114.5 mm | I | ITE Industry | CE EN UKCA | EN 61010-1 EN 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | |||||
39 | | Manufacturers Part No. CPS-EC480.300(R2)(CPS-EC480.300(R2)) Camtec AC/DC industrial power supply unit DIN Rail 480W 300V 1,7A | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 1 or mul. of 1) | Camtec | I | 480.0 W | 300.0 V | 1.7 A | 92.0 % | 184.0 V | 264.0 V | -25.0 °C | 70.0 °C | 200.0 mm | 130.0 mm | 114.5 mm | I | ITE Industry | CE EN UKCA | EN 61010-1 EN 62368-1 | Adjustable Output Current Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | |||||
40 | | Manufacturers Part No. XDR-75E-12(XDR-75E-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 75,6W 12V 6,3A | Customer Part No. Customer Project No. | 446 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 75.6 W | 12.0 V | 6.3 A | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||

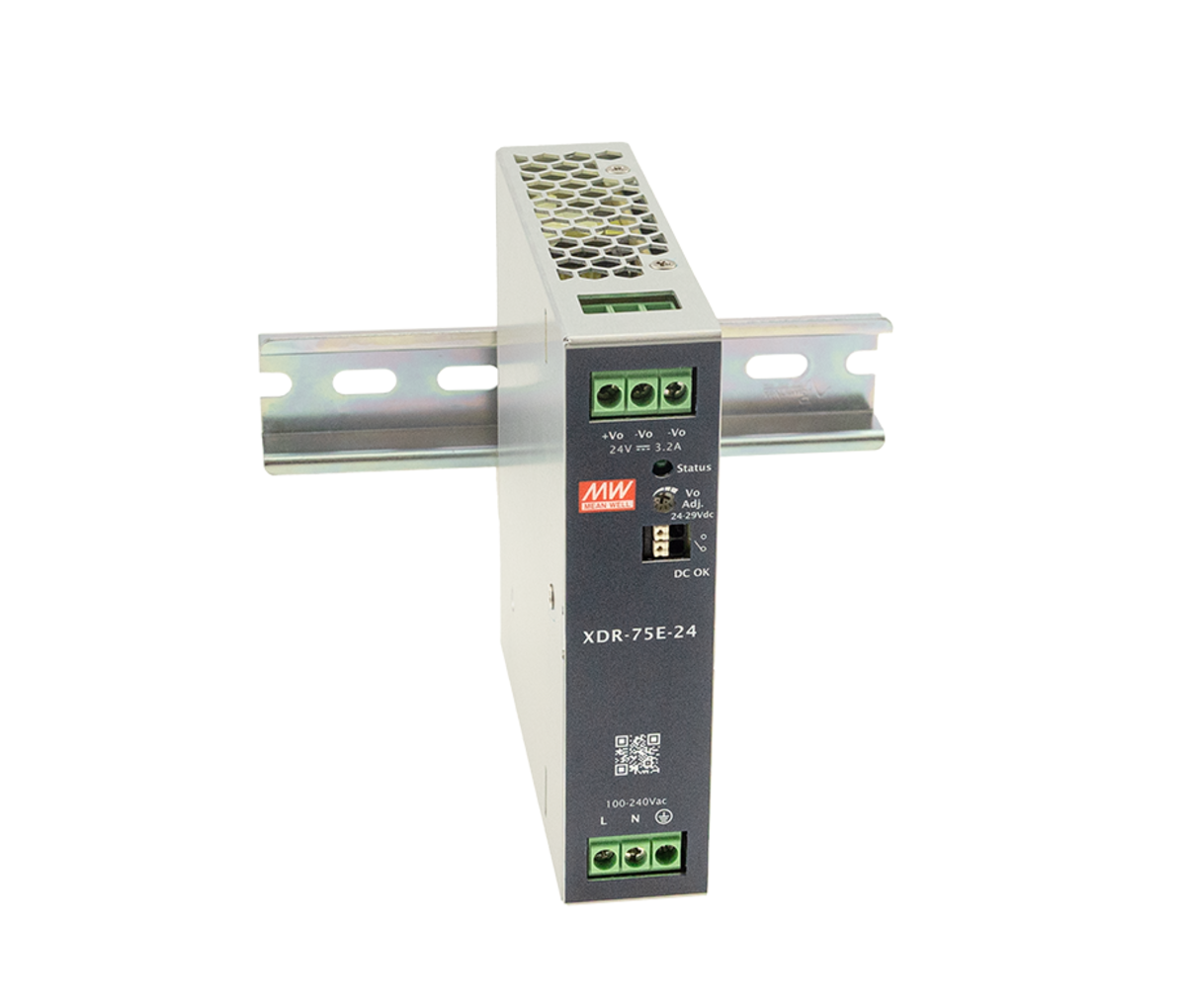

41 | | Manufacturers Part No. XDR-75E-24(XDR-75E-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 76,8W 24V 3,2A | Customer Part No. Customer Project No. | 1.405 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 76.8 W | 24.0 V | 3.2 A | 90.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
42 | | Manufacturers Part No. XDR-75E-36(XDR-75E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 75,6W 36V 2,1A | Customer Part No. Customer Project No. | 115 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 75.6 W | 36.0 V | 2.1 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
43 | | Manufacturers Part No. XDR-75E-48(XDR-75E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 76,8W 48V 1,6A | Customer Part No. Customer Project No. | 97 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 76.8 W | 48.0 V | 1.6 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||

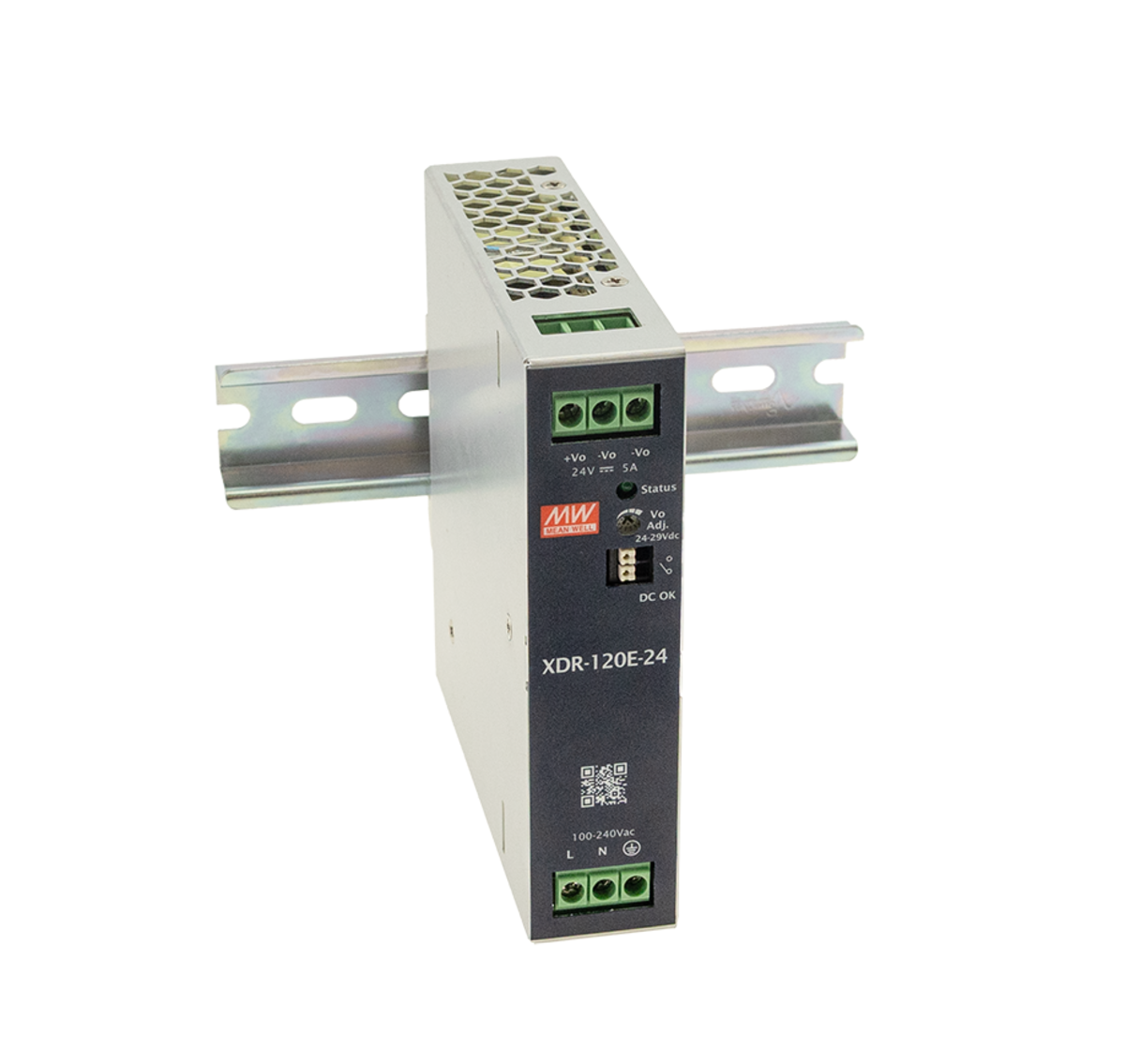

44 | | Manufacturers Part No. XDR-120E-24(XDR-120E-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 120W 24V 5A | Customer Part No. Customer Project No. | 339 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 120.0 W | 24.0 V | 5.0 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||

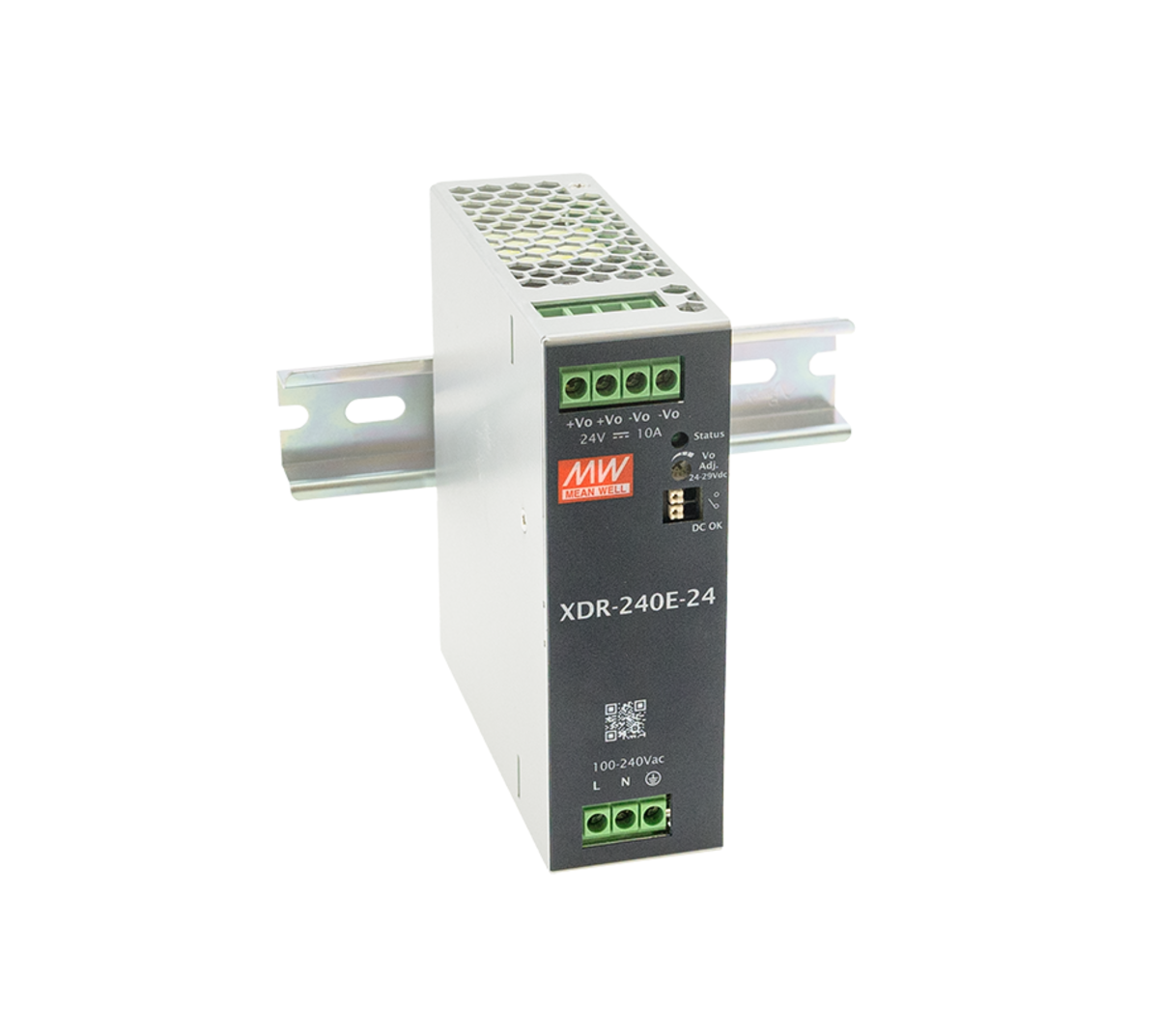

45 | | Manufacturers Part No. XDR-240E-24(XDR-240E-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 240W 24V 10A | Customer Part No. Customer Project No. | 907 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 240.0 W | 24.0 V | 10.0 A | 95.2 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 40.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
46 | | Manufacturers Part No. XDR-240E-36(XDR-240E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 240W 36V 6,66A | Customer Part No. Customer Project No. | 32 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 240.0 W | 36.0 V | 6.66 A | 95.5 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 40.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
47 | | Manufacturers Part No. XDR-240E-48(XDR-240E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 240W 48V 5A | Customer Part No. Customer Project No. | 730 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 240.0 W | 48.0 V | 5.0 A | 95.5 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 40.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
48 | | Manufacturers Part No. XDR-150E-12(XDR-150E-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 132W 12V 11A | Customer Part No. Customer Project No. | 189 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 132.0 W | 12.0 V | 11.0 A | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
49 | | Manufacturers Part No. XDR-480E-12(XDR-480E-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 360W 12V 30A | Customer Part No. Customer Project No. | 330 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 360.0 W | 12.0 V | 30.0 A | 94.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 48.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||
50 | | Manufacturers Part No. XDR-960E-36(XDR-960E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 957,6W 36V 26,6A | Customer Part No. Customer Project No. | 2 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 957.6 W | 36.0 V | 26.6 A | 95.0 % | 180.0 V | 264.0 V | -40.0 °C | 70.0 °C | 96.0 mm | 125.2 mm | 132.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function |
