Results (1307)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Output Power | Number of outputs | Output voltage | Output current | Package/Case | Efficiency | Input voltage min. AC | Input voltage max. AC | Interfaces | Operating Temperature Min. | Operating Temperature Max. | Dimension: Length | Dimension: Width | Dimension: Height | Protection class | Application | Approvals | Standards (safety) | Connection type, output | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
176 |  | Manufacturers Part No. MSP-450-5(MSP-450-5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 450W 5V 90A MOOP | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 450.0 W | 1 | 5.0 V | 90.0 A | Enclosed Metal | 83.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
177 | | Manufacturers Part No. MSP-450-7.5(MSP-450-7.5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 450W 7,5V 60A MOOP | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 450.0 W | 1 | 7.5 V | 60.0 A | Enclosed Metal | 86.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
178 | | Manufacturers Part No. MSP-450-12(MSP-450-12) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 450W 12V 37,5A MOOP | Customer Part No. Customer Project No. | 13 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 450.0 W | 1 | 12.0 V | 37.5 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
179 | | Manufacturers Part No. MSP-450-15(MSP-450-15) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 450W 15V 30A MOOP | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 7 Weeks Available on order | (at least 1 or mul. of 1) | MEAN WELL | 450.0 W | 1 | 15.0 V | 30.0 A | Enclosed Metal | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
180 | | Manufacturers Part No. MSP-450-24(MSP-450-24) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 451,2W 24V 18,8A MOOP TOP | Customer Part No. Customer Project No. | 45 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 451.2 W | 1 | 24.0 V | 18.8 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
181 | | Manufacturers Part No. MSP-450-36(MSP-450-36) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 450W 36V 12,5A MOOP | Customer Part No. Customer Project No. | 42 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 450.0 W | 1 | 36.0 V | 12.5 A | Enclosed Metal | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||
182 | | Manufacturers Part No. MSP-450-48(MSP-450-48) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 456W 48V 9,5A MOOP | Customer Part No. Customer Project No. | 21 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 456.0 W | 1 | 48.0 V | 9.5 A | Enclosed Metal | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 41.0 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Remote Function Remote Sense | ||||||

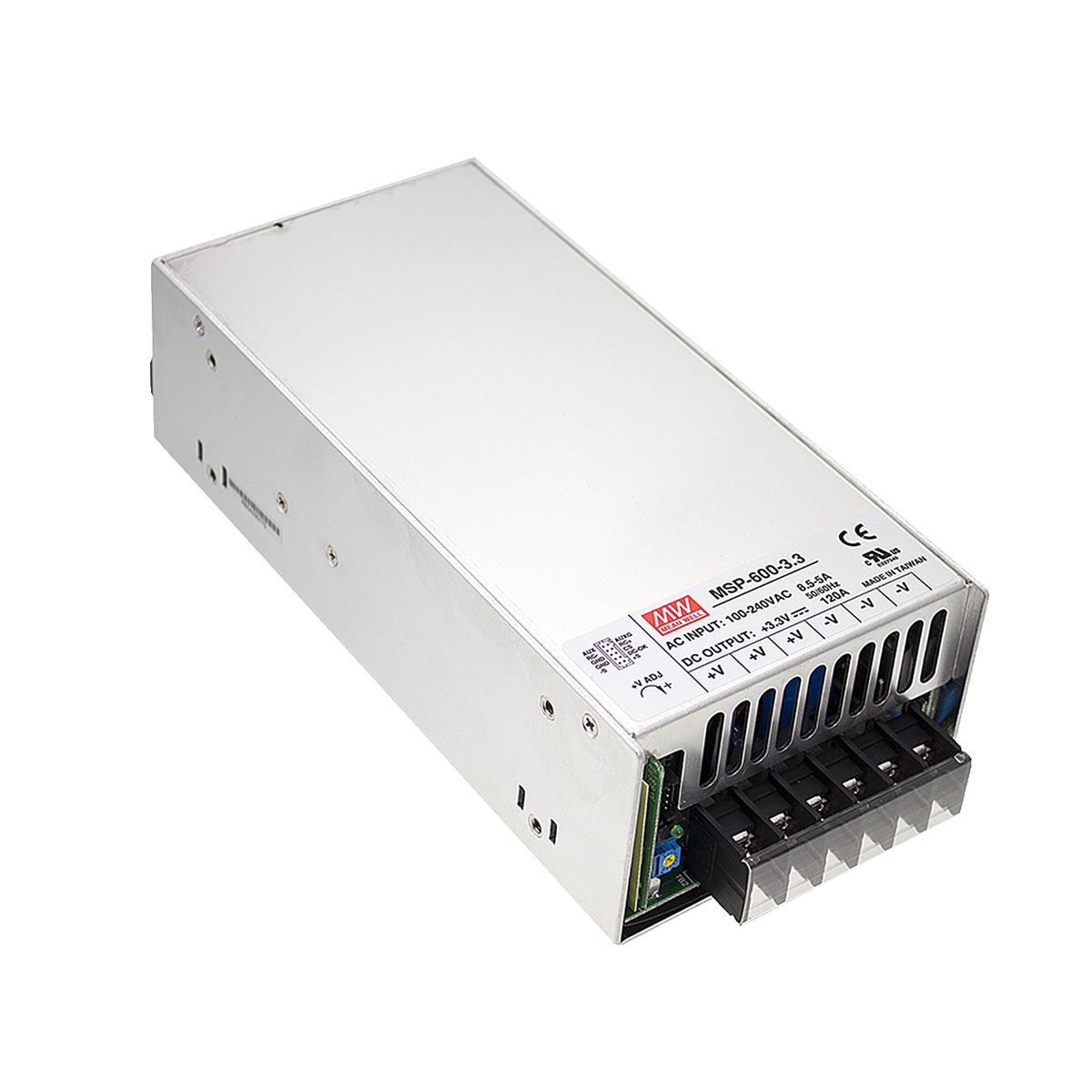

183 | | Manufacturers Part No. MSP-600-3.3(MSP-600-3.3) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 396W 3,3V 120A MOOP | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 396.0 W | 1 | 3.3 V | 120.0 A | Enclosed Metal | 78.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
184 | | Manufacturers Part No. MSP-600-5(MSP-600-5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 600W 5V 120A MOOP | Customer Part No. Customer Project No. | 16 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 600.0 W | 1 | 5.0 V | 120.0 A | Enclosed Metal | 82.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
185 | | Manufacturers Part No. MSP-600-7.5(MSP-600-7.5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 600W 7,5V 80A MOOP | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 7 Weeks Available on order | (at least 1 or mul. of 1) | MEAN WELL | 600.0 W | 1 | 7.5 V | 80.0 A | Enclosed Metal | 86.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
186 | | Manufacturers Part No. MSP-600-12(MSP-600-12) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 636W 12V 53A MOOP | Customer Part No. Customer Project No. | 1 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 636.0 W | 1 | 12.0 V | 53.0 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
187 | | Manufacturers Part No. MSP-600-15(MSP-600-15) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 645W 15V 43A MOOP | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 645.0 W | 1 | 15.0 V | 43.0 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
188 | | Manufacturers Part No. MSP-600-24(MSP-600-24) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 648W 24V 27A MOOP TOP | Customer Part No. Customer Project No. | 72 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 648.0 W | 1 | 24.0 V | 27.0 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
189 | | Manufacturers Part No. MSP-600-36(MSP-600-36) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 630W 36V 17,5A MOOP | Customer Part No. Customer Project No. | 18 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 630.0 W | 1 | 36.0 V | 17.5 A | Enclosed Metal | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
190 | | Manufacturers Part No. MSP-600-48(MSP-600-48) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 624W 48V 13A MOOP | Customer Part No. Customer Project No. | 8 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 624.0 W | 1 | 48.0 V | 13.0 A | Enclosed Metal | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE EAC IEC UKCA UL | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Remote Function Remote Sense | ||||||
191 | | Manufacturers Part No. MSP-1000-12(MSP-1000-12) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 960W 12V 80A 2*MOPP | Customer Part No. Customer Project No. | 55 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 960.0 W | 1 | 12.0 V | 80.0 A | Enclosed Metal | 91.0 % | 90.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE CSA EAC IEC UKCA | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Peak Power Remote Function Remote Sense | ||||||
192 | | Manufacturers Part No. MSP-1000-15(MSP-1000-15) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 960W 15V 64A 2*MOPP | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 960.0 W | 1 | 15.0 V | 64.0 A | Enclosed Metal | 92.0 % | 90.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE CSA EAC IEC UKCA | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Peak Power Remote Function Remote Sense | ||||||
193 | | Manufacturers Part No. MSP-1000-24(MSP-1000-24) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 960W 24V 42A 2*MOPP | Customer Part No. Customer Project No. | 28 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 960.0 W | 1 | 24.0 V | 42.0 A | Enclosed Metal | 93.0 % | 90.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE CSA EAC IEC UKCA | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Peak Power Remote Function Remote Sense | ||||||
194 | | Manufacturers Part No. MSP-1000-48(MSP-1000-48) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 960W 48V 21A 2*MOPP | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 960.0 W | 1 | 48.0 V | 21.0 A | Enclosed Metal | 94.0 % | 90.0 V | 264.0 V | -40.0 °C | 70.0 °C | 218.0 mm | 105.0 mm | 63.5 mm | I | Medical | CE CSA EAC IEC UKCA | ANSI/AAMI ES 60601-1 IEC 60601-1 | Screw Terminal | AUX Power Supply Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function Peak Power Remote Function Remote Sense | ||||||

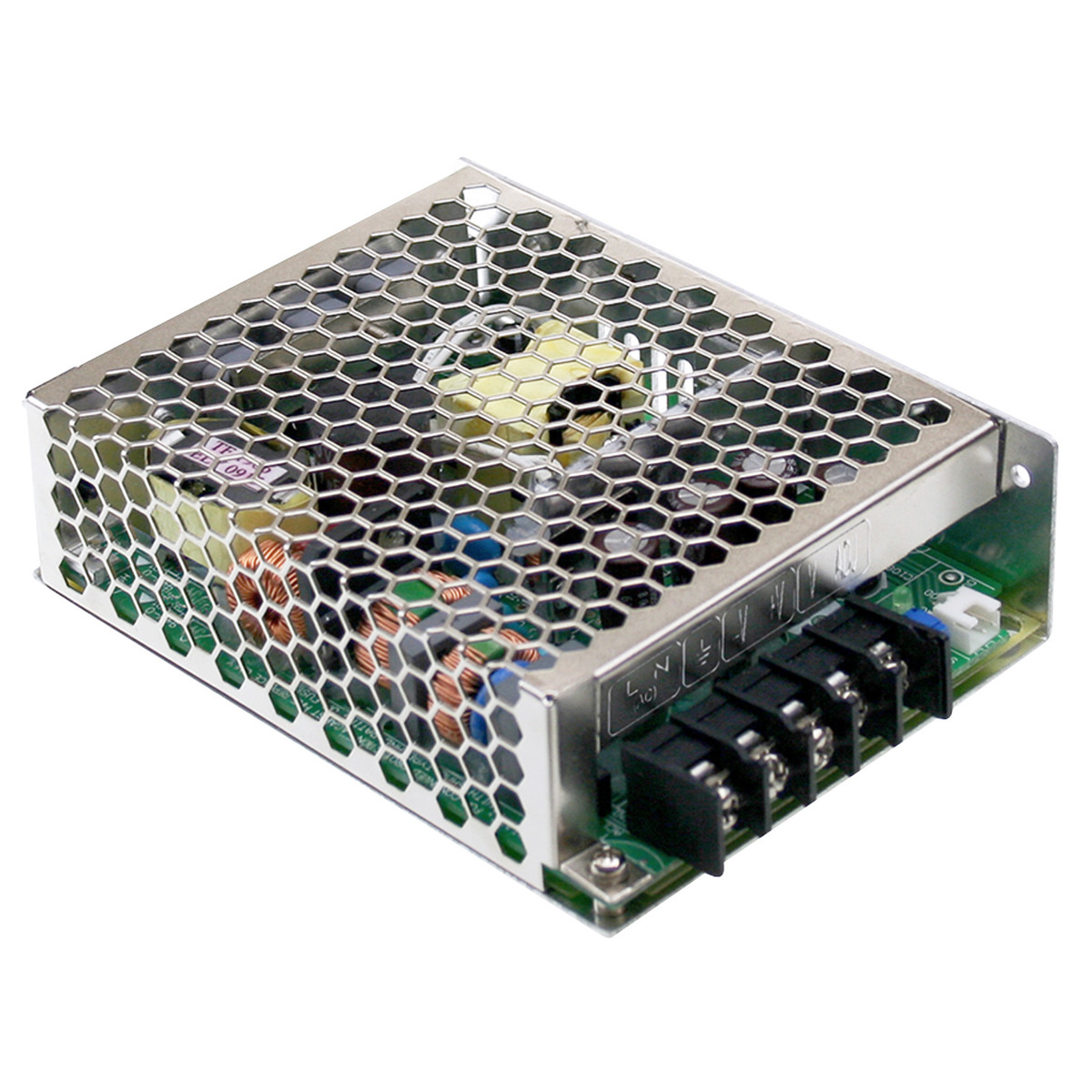

195 | | Manufacturers Part No. HRP-75-3.3(HRP-75-3.3) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 49,5W 3,3V 15A | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 49.5 W | 1 | 3.3 V | 15.0 A | Enclosed Metal | 77.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function | ||||||
196 | | Manufacturers Part No. HRP-75-5(HRP-75-5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 75W 5V 15A | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 75.0 W | 1 | 5.0 V | 15.0 A | Enclosed Metal | 82.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function | ||||||
197 | | Manufacturers Part No. HRP-75-7.5(HRP-75-7.5) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 75W 7,5V 10A | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 75.0 W | 1 | 7.5 V | 10.0 A | Enclosed Metal | 84.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function | ||||||
198 | | Manufacturers Part No. HRP-75-12(HRP-75-12) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 75,6W 12V 6,3A | Customer Part No. Customer Project No. | 25 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 75.6 W | 1 | 12.0 V | 6.3 A | Enclosed Metal | 87.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function | ||||||
199 | | Manufacturers Part No. HRP-75-15(HRP-75-15) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 75W 15V 5A | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 75.0 W | 1 | 15.0 V | 5.0 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function | ||||||
200 | | Manufacturers Part No. HRP-75-24(HRP-75-24) MEAN WELL AC/DC industrial power supply unit Enclosed Metal 76,8W 24V 3,2A TOP | Customer Part No. Customer Project No. | 313 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 76.8 W | 1 | 24.0 V | 3.2 A | Enclosed Metal | 88.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 129.0 mm | 98.0 mm | 38.0 mm | I | ITE Industry | AS/NZ CE EAC EN IEC UKCA UL | EN 62368-1 IEC 62368-1 UL 62368-1 | Screw Terminal | Adjustable Output Voltage DC compatible Remote Function |
