Filter articles
Manufacturer
Manufacturer
Series
Series
Mains connection/phases
Mains connection/phases
Output Power
Output Power
Output voltage
Output voltage
Output current
Output current
Efficiency
Efficiency
Input voltage min. AC
Input voltage min. AC
Input voltage max. AC
Input voltage max. AC
Operating Temperature Min.
Operating Temperature Min.
Operating Temperature Max.
Operating Temperature Max.
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Dimension: Depth
Dimension: Depth
Protection class
Protection class
Application
Application
Approvals
Approvals
Standards (safety)
Standards (safety)
Features
Features
Results (336)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Mains connection/phases | Output Power | Output voltage | Output current | Efficiency | Input voltage min. AC | Input voltage max. AC | Operating Temperature Min. | Operating Temperature Max. | Dimension: Width | Dimension: Height | Dimension: Depth | Protection class | Application | Approvals | Standards (safety) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51 |  | Manufacturers Part No. XDR-960E-36(XDR-960E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 957,6W 36V 26,6A New | Customer Part No. Customer Project No. | 18 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 957.6 W | 36.0 V | 26.6 A | 95.0 % | 180.0 V | 264.0 V | -40.0 °C | 70.0 °C | 96.0 mm | 125.2 mm | 132.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||
52 | | Manufacturers Part No. XDR-120E-12(XDR-120E-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 120W 12V 10A New | Customer Part No. Customer Project No. | 932 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 120.0 W | 12.0 V | 10.0 A | 89.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
53 | | Manufacturers Part No. XDR-120E-36(XDR-120E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 119,88W 36V 3,33A New | Customer Part No. Customer Project No. | 61 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 119.88 W | 36.0 V | 3.33 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
54 | | Manufacturers Part No. XDR-120E-48(XDR-120E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 120W 48V 2,5A New | Customer Part No. Customer Project No. | 194 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 120.0 W | 48.0 V | 2.5 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
55 | | Manufacturers Part No. XDR-480E-24(XDR-480E-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 24V 20A New | Customer Part No. Customer Project No. | 813 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 480.0 W | 24.0 V | 20.0 A | 95.5 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 48.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||

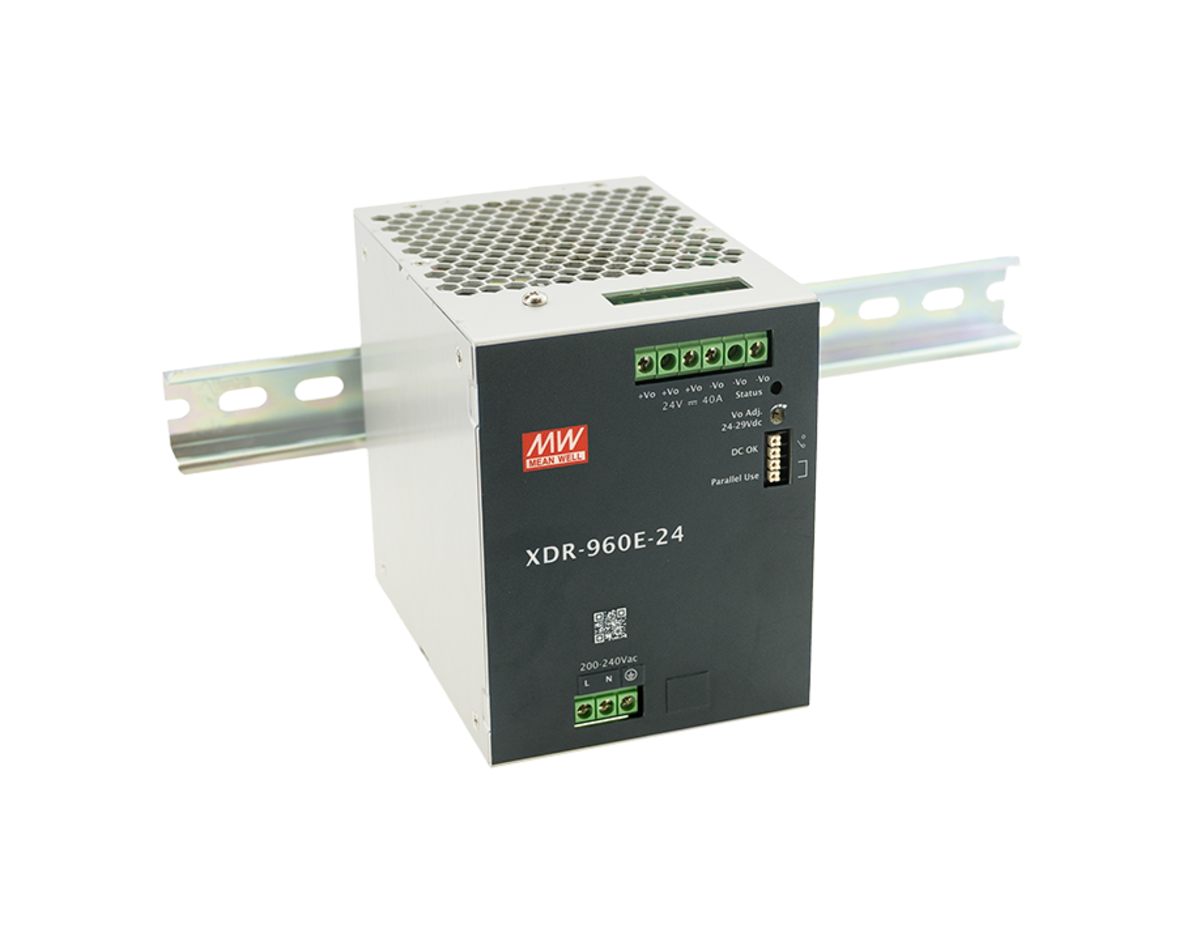

56 | | Manufacturers Part No. XDR-960E-24(XDR-960E-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 960W 24V 40A New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 960.0 W | 24.0 V | 40.0 A | 94.5 % | 180.0 V | 264.0 V | -40.0 °C | 70.0 °C | 96.0 mm | 125.2 mm | 132.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||
57 | | Manufacturers Part No. XDR-150E-36(XDR-150E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 155,9W 36V 4,33A New | Customer Part No. Customer Project No. | 85 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 155.9 W | 36.0 V | 4.33 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
58 | | Manufacturers Part No. XDR-150E-48(XDR-150E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 156W 48V 3,25A New | Customer Part No. Customer Project No. | 60 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 156.0 W | 48.0 V | 3.25 A | 91.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 30.0 mm | 125.2 mm | 116.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal | |||||
59 | | Manufacturers Part No. XDR-480E-36(XDR-480E-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 478,8W 36V 13,3A New | Customer Part No. Customer Project No. | 97 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 478.8 W | 36.0 V | 13.3 A | 95.5 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 48.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||
60 | | Manufacturers Part No. XDR-480E-48(XDR-480E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 48V 10A New | Customer Part No. Customer Project No. | 131 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 480.0 W | 48.0 V | 10.0 A | 96.0 % | 85.0 V | 264.0 V | -40.0 °C | 70.0 °C | 48.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||
61 | | Manufacturers Part No. XDR-960E-48(XDR-960E-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 960W 48V 20A New | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | I | 960.0 W | 48.0 V | 20.0 A | 95.5 % | 180.0 V | 264.0 V | -40.0 °C | 70.0 °C | 96.0 mm | 125.2 mm | 132.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | Adjustable Output Voltage DC compatible DC-OK-Signal Parallel Function | |||||

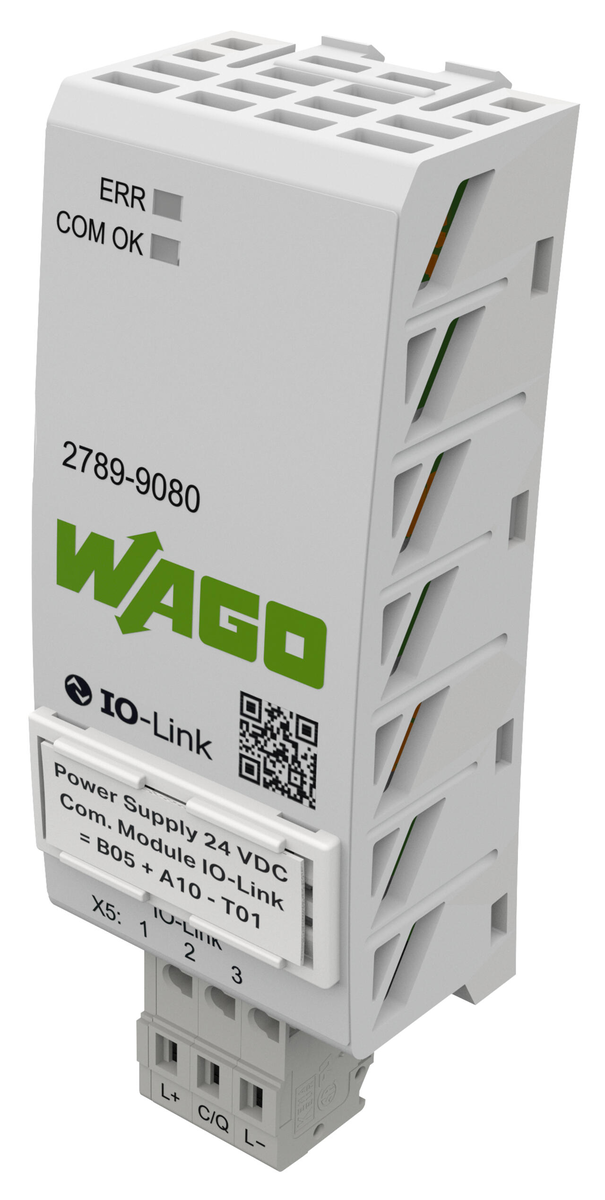

62 | | Manufacturers Part No. 2789-9080(2789-9080PRO2) WAGO AC/DC industrial power supply unit DIN Rail IO-Link | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 1 or mul. of 1) | WAGO | -25.0 °C | 70.0 °C | 35.0 mm | 95.0 mm | 22.0 mm | III | ITE Industry MSR/Laboratory | CE EN | EN 61010-1 UL 61010-1 | |||||||||||||
63 | | Manufacturers Part No. XTR-480-48(XTR-480-48) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 48V 10A New | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 48.0 V | 10.0 A | 95.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
64 | | Manufacturers Part No. XTR-480-12LA(XTR-480-12LA) MEAN WELL AC/DC industrial power supply unit DIN Rail 360W 12V 30A New | Customer Part No. Customer Project No. | 24 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 360.0 W | 12.0 V | 30.0 A | 93.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
65 | | Manufacturers Part No. XTR-480-24LA(XTR-480-24LA) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 24V 20A New | Customer Part No. Customer Project No. | 62 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 24.0 V | 20.0 A | 94.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
66 | | Manufacturers Part No. XTR-480-36LA(XTR-480-36LA) MEAN WELL AC/DC industrial power supply unit DIN Rail 478,8W 36V 13,3A New | Customer Part No. Customer Project No. | 8 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 478.8 W | 36.0 V | 13.3 A | 94.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
67 | | Manufacturers Part No. XTR-480-48LA(XTR-480-48LA) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 48V 10A New | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 48.0 V | 10.0 A | 95.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
68 | | Manufacturers Part No. XTR-480-12PI(XTR-480-12PI) MEAN WELL AC/DC industrial power supply unit DIN Rail 360W 12V 30A New | Customer Part No. Customer Project No. | 28 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 360.0 W | 12.0 V | 30.0 A | 93.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
69 | | Manufacturers Part No. XTR-480-24PI(XTR-480-24PI) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 24V 20A New | Customer Part No. Customer Project No. | 67 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 24.0 V | 20.0 A | 94.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
70 | | Manufacturers Part No. XTR-480-36PI(XTR-480-36PI) MEAN WELL AC/DC industrial power supply unit DIN Rail 478,8W 36V 13,3A New | Customer Part No. Customer Project No. | 8 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 478.8 W | 36.0 V | 13.3 A | 94.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
71 | | Manufacturers Part No. XTR-480-48PI(XTR-480-48PI) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 48V 10A New | Customer Part No. Customer Project No. | 39 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 48.0 V | 10.0 A | 95.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
72 | | Manufacturers Part No. XTR-480-12(XTR-480-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 360W 12V 30A New | Customer Part No. Customer Project No. | 46 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 360.0 W | 12.0 V | 30.0 A | 93.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
73 | | Manufacturers Part No. XTR-480-24(XTR-480-24) MEAN WELL AC/DC industrial power supply unit DIN Rail 480W 24V 20A New | Customer Part No. Customer Project No. | 61 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 480.0 W | 24.0 V | 20.0 A | 94.0 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
74 | | Manufacturers Part No. XTR-480-36(XTR-480-36) MEAN WELL AC/DC industrial power supply unit DIN Rail 478,8W 36V 13,3A New | Customer Part No. Customer Project No. | 8 Pcs. Planned Delivery Time Ø 7 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 478.8 W | 36.0 V | 13.3 A | 94.5 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 63.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC compatible DC-OK-Signal Peak Power Remote Function | |||||
75 | | Manufacturers Part No. XTR-240-12(XTR-240-12) MEAN WELL AC/DC industrial power supply unit DIN Rail 180W 12V 15A New | Customer Part No. Customer Project No. | 51 Pcs. Planned Delivery Time Ø 20 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | II/III | 180.0 W | 12.0 V | 15.0 A | 88.7 % | 320.0 V | 600.0 V | -40.0 °C | 85.0 °C | 48.0 mm | 125.2 mm | 125.0 mm | I | ITE Industry MSR/Laboratory | AS/NZ BSMI CCC CE CSA EAC EN IEC RCM UKCA UL | EN 61010-1 EN 61558-1 EN 61558-2-16 EN 62368-1 IEC 61010-1 IEC 61558-1 IEC 62368-1 UL 61010-1 | DC-OK-Signal Parallel Function Peak Power |
