3191102700

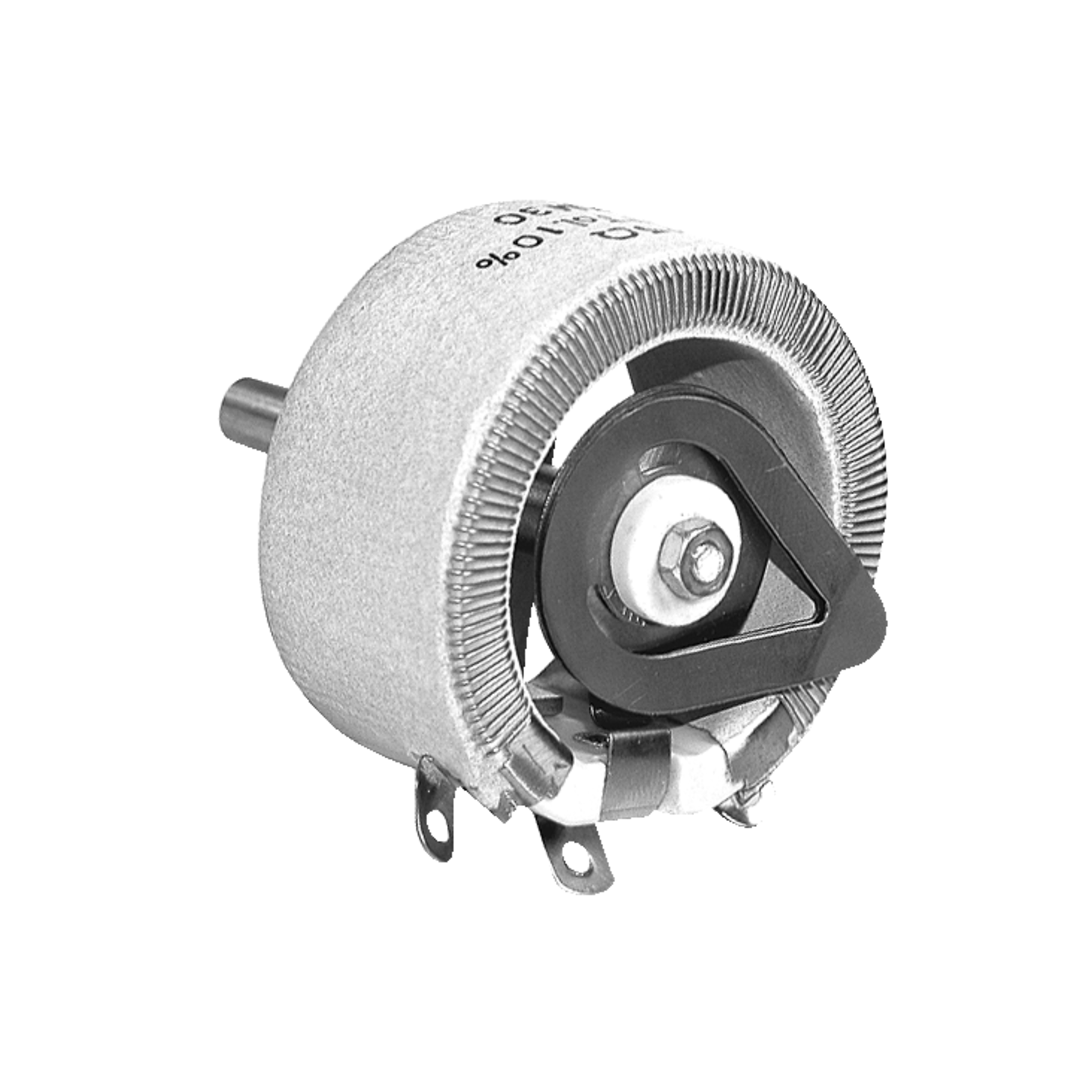

Wire potentiometer 30W 30W Shaft-Ø metal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
0 Pcs.
0 Pcs.
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 01.08.2021
Abgekündigt durch Hersteller mit Ersatz
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 0,022 kOhm
- Resistance tolerance
- 10 %
- Rated power
- 30 W
- RoHS-Conform
Specifications
Open all

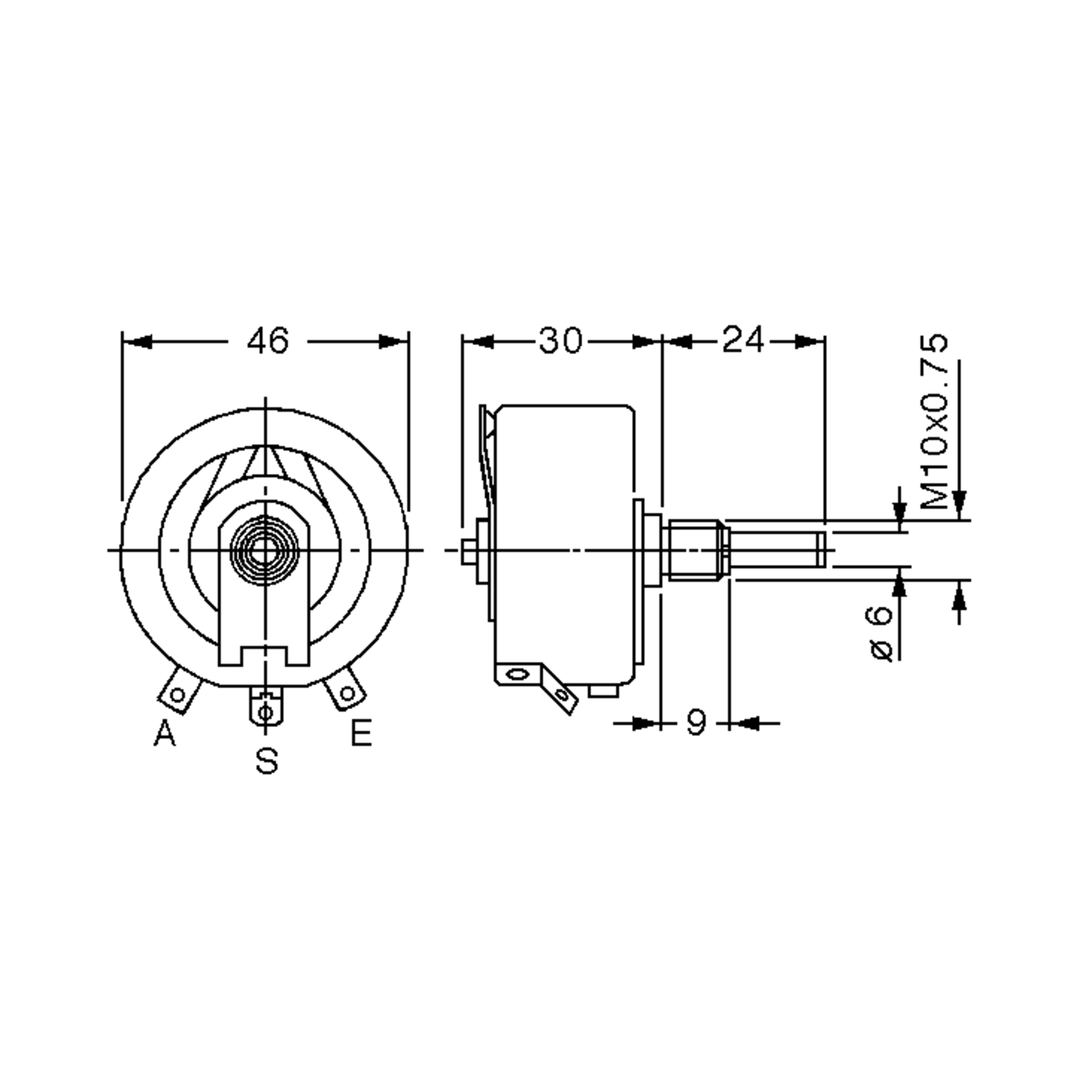

Dimensions and weights
- Weight
- 70 g
- Height body
- 30 mm
- Diameter Body
- 46 mm
- Length, shaft
- 24 mm
- Diameter, shaft
- 6 mm
Technical features
- Resistance value
- 0,022 kOhm
- Resistance tolerance
- 10 %
- Rated power
- 30 W
- Dielectric strength (RMS)
- 2,000 V
Mechanical features
- Rotation angle, mechanical
- 287 °
- Rotation angle, electric
- 270 °
