3191005000

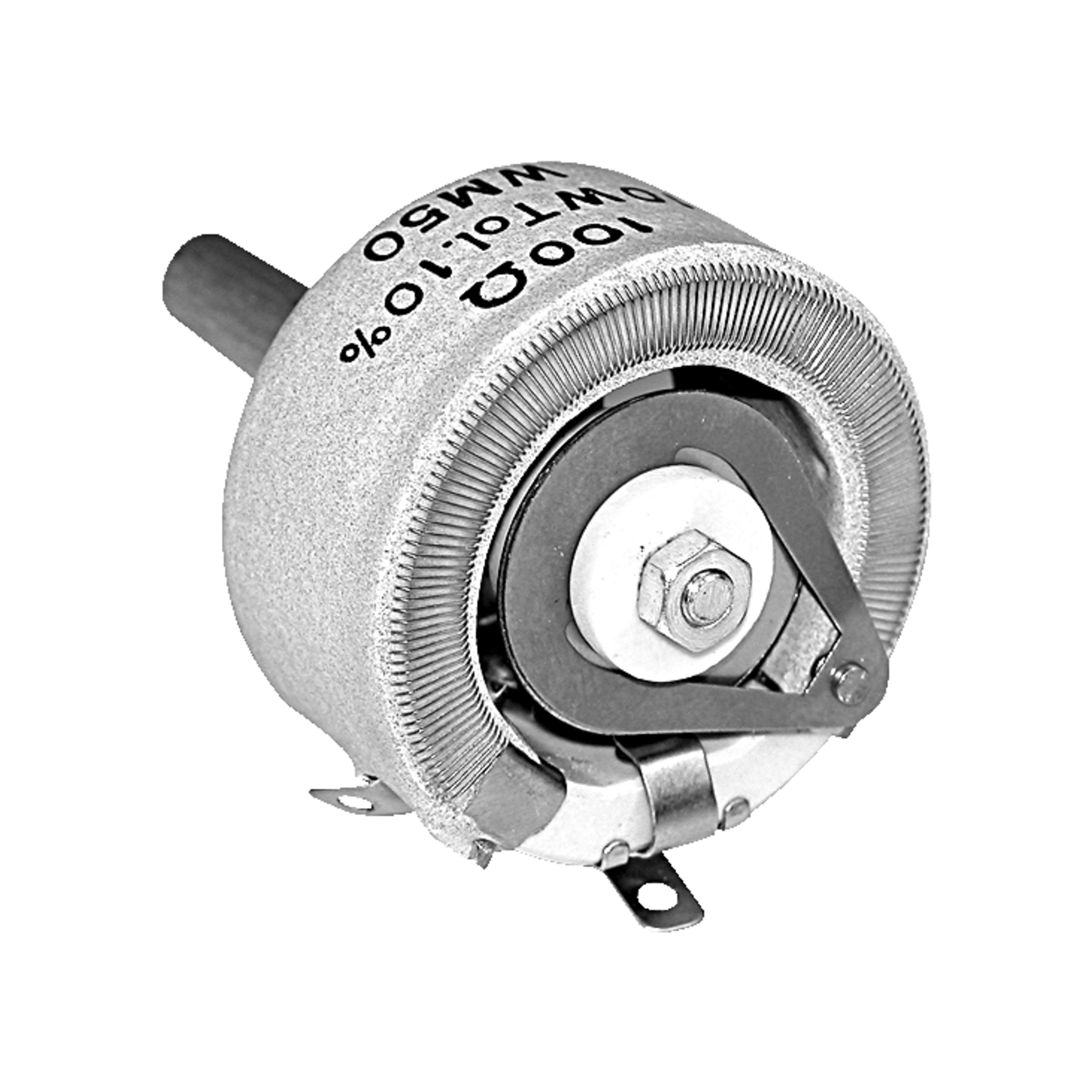

A.B. Wire potentiometer 10W linear 10W 470Ohm 10% Shaft-Ø6mm metal
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
LTB 08.09.2021
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 470 Ohm
- Resistance tolerance
- 10 %
- Rated power
- 10 W
- Housing
- vertical
- RoHS-Conform
Specifications
Open all

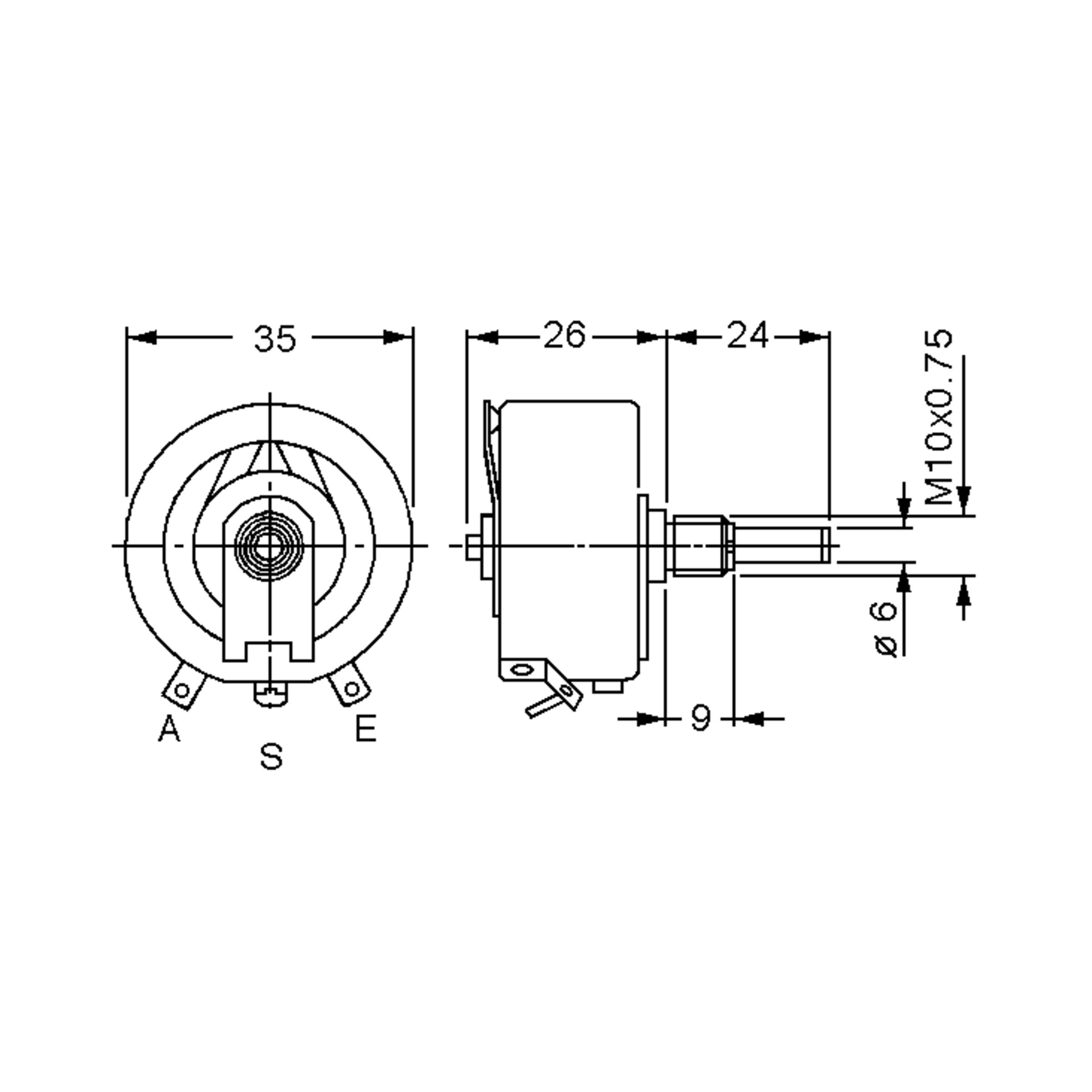

Dimensions and weights
- Weight
- 50 g
- Height body
- 26 mm
- Diameter Body
- 35 mm
- Length, shaft
- 24 mm
- Diameter, shaft
- 6 mm
- Shaft
- metal
Technical features
- Resistance value
- 470
- Resistance unit
- Ohm
- Resistance value
- 470 Ohm
- Resistance tolerance
- 10 %
- Resistance curve
- linear
- Rated power
- 10 W
- Insulation Voltage
- 2,000 V
Mechanical features
- Rotation angle, mechanical
- 266 °
- Rotation angle, electric
- 250 °
